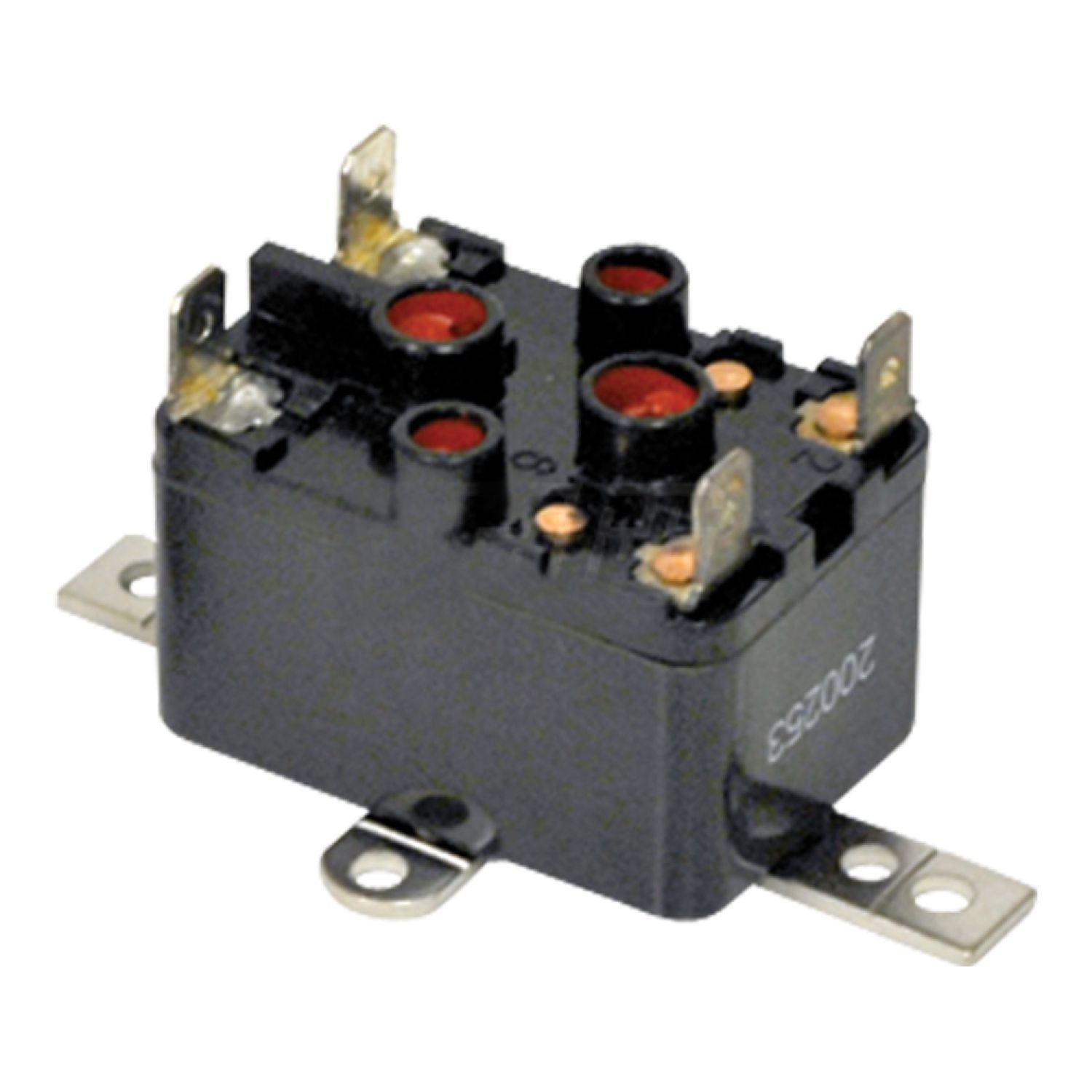

Mars 92382 SPNO-SPNC Relay 110/120V

Product Description

The Mars 92382 SPNO-SPNC 110/120V Relay is a high-quality industrial-grade relay designed for demanding applications. With a voltage rating of 110/120V, this relay is suitable for a wide range of industrial uses, including automation, control systems, and more. It is built to last, with a durable and rugged design that can withstand the rigors of industrial use.

• High-quality industrial-grade relay
• Voltage rating of 110/120V
• Suitable for automation and control systems

Product Highlights

This relay features reliable performance, minimal power consumption, easy installation, and a compact design.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 92382

Technical Specifications

• Manufacturer: Mars
• Electrical Voltage: 110-120 Volt
• Amperage: 18 amps
• Product: Relay
• Other Info: CSA Certified, UL Listed
• Mpn #: 92382
• Bracket Type: flange
• Contact rating amps: 18
• Pick-up Voltage: 102
• Manufacturer Part Number: 92382
• Family Series: JARD by MARS HVAC Relays
• Description: SPNO-SPNC 110/120V RELAY
• Nominal Voltage: 120 VAC
• Voltage: 110 VAC
• Termination: 0.250 " Flat Blade
• Contacts: 1NO, 1NC
• Switching Current: 25 A
• Approvals: cUR, UL
• Brand: Mars
• MPN: 92382
• Coil Voltage: 110 to 120 V AC
• Contact Form: NO-NC 1 Form A/1 Form B SPST
• Contact Rating: 18 A
• Frequency Rating: 60 Hz
• Terminal Type: Quick-Connect
• Type: Heavy Duty
