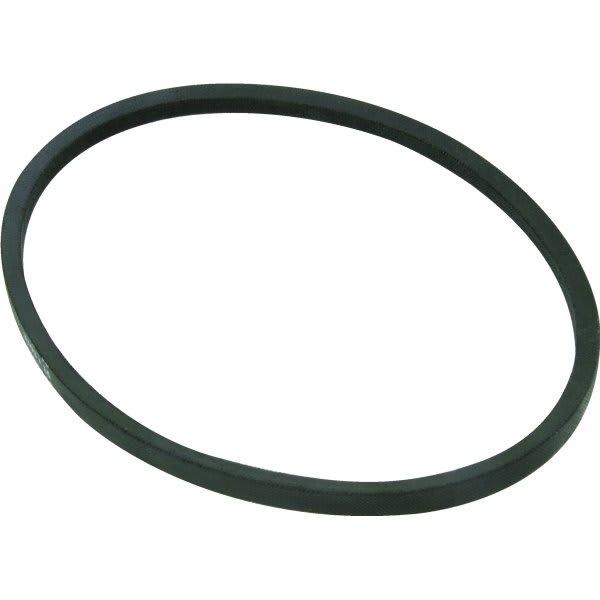

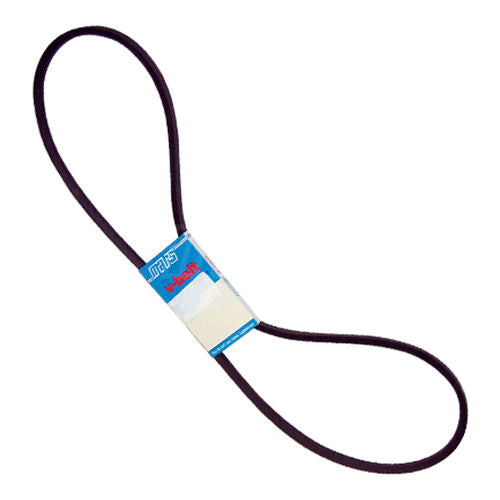

Mars 4L250 V-belt 25 in (A23/4L250)

Product Description

Mars 4L250 is a 4L-section, 25-inch V-belt intended for fractional-horsepower drives and A23/4L250 applications. The belt features a 0.5-inch top width and wrapped rubber construction with heat- and oil-resistant properties, supporting operation in temperatures from -30 to 140 degrees F. It is used in light-duty FHP drives, air conditioning units, and home appliance drive systems to transmit torque between pulleys.

• 25 in outside length, 4L section with 0.5 in top width and 24 in pitch length
• Wrapped rubber construction; heat- and oil-resistant for FHP and appliance drives
• Suitable temperature range -30 to 140 degrees F; dual-rated V-belt for A23/4L250 applications

Product Highlights

4L section V-belt, 25 in outside length, 0.5 in top width; rubber, wrapped construction; heat- and oil-resistant for fractional-horsepower and appliance drives.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 4L250
• Country of Origin: Taiwan

Technical Specifications

• Brand: Mars
• MPN: 4L250
• Manufacturer Part Number: A23/4L250
• Model: A23/4L250
• Product Type: V-belt
• Belt Type: Dual-rated V-belt
• Belt Section: 4L
• Outside Length: 25 in
• Pitch Length: 24 in
• Top Width: 0.5 in
• Thickness: 5/16 in
• Material: Rubber
• Construction: Wrapped
• Features: Heat resistant; oil resistant
• Temperature Range: -30 to 140 degrees F
• Recommended Application: Fractional-horsepower drives; air conditioning units; home appliances
• Country of Origin: Taiwan
• UPC: 685744943273
• UNSPSC: 26111801
• Package Quantity: 1
• Packaging Dimensions: 3.100 in x 10.850 in x 0.600 in
• Packaging Weight: 0.195 lb
• Product Weight: 0.13 lb
