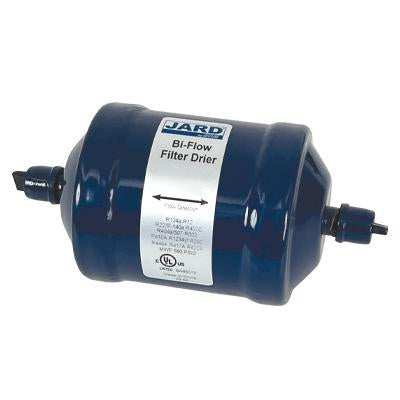

MARS 28140 Bi-Flow Heat Pump Drier 3/8 in

Product Description

The MARS 28140 bi-flow heat pump drier is built for efficient refrigerant management in HVAC systems. It is compatible with various refrigerants including R-22, R-407C, and R-410A. With a flow capacity of five tons, this component provides reliable performance for heat pumps.

• Reversible refrigerant flow design for heat pumps
• Filtration capability of 20 microns for clear performance
• Durable construction with solid core design

Product Highlights

This drier features a solder connection type and is designed for various uses in heat pump applications. It has a maximum working pressure of six hundred eighty psig, ensuring strong operational capacity.

Product Information

Standard Information

• Brand: MARS
• MPN: 28140

Technical Specifications

• Approved Refrigerants: R134a, R12, R22, R407C, R404a, R410A, R290, R448A
• Body Material: Steel
• Connection Material: Copper
• Connection Type: Solder
• Drier Type: Heat pump (Bi-flow)
• Filtration: 20 microns
• Finish: Powder-Coated
• Flow Capacity: 5 ton, 5.1 ton
• Inlet: 3/8 inches
• Inlet Connection Type: Solder
• Max Working Pressure: 680 psig
• Micron Rating: 20 um
• Outlet: 3/8 inches
• Outlet Connection Type: Solder
• Pressure Rating: 680 psig
• Refrigerant Type: R-22/R-407C/R-410A
• Size: 3/8 inches
