MARS 27001 Current Relay 27001 Power (SIZE/QUANTITY/PACK/ANGLE) REPLACEMENT MPN

Product Description

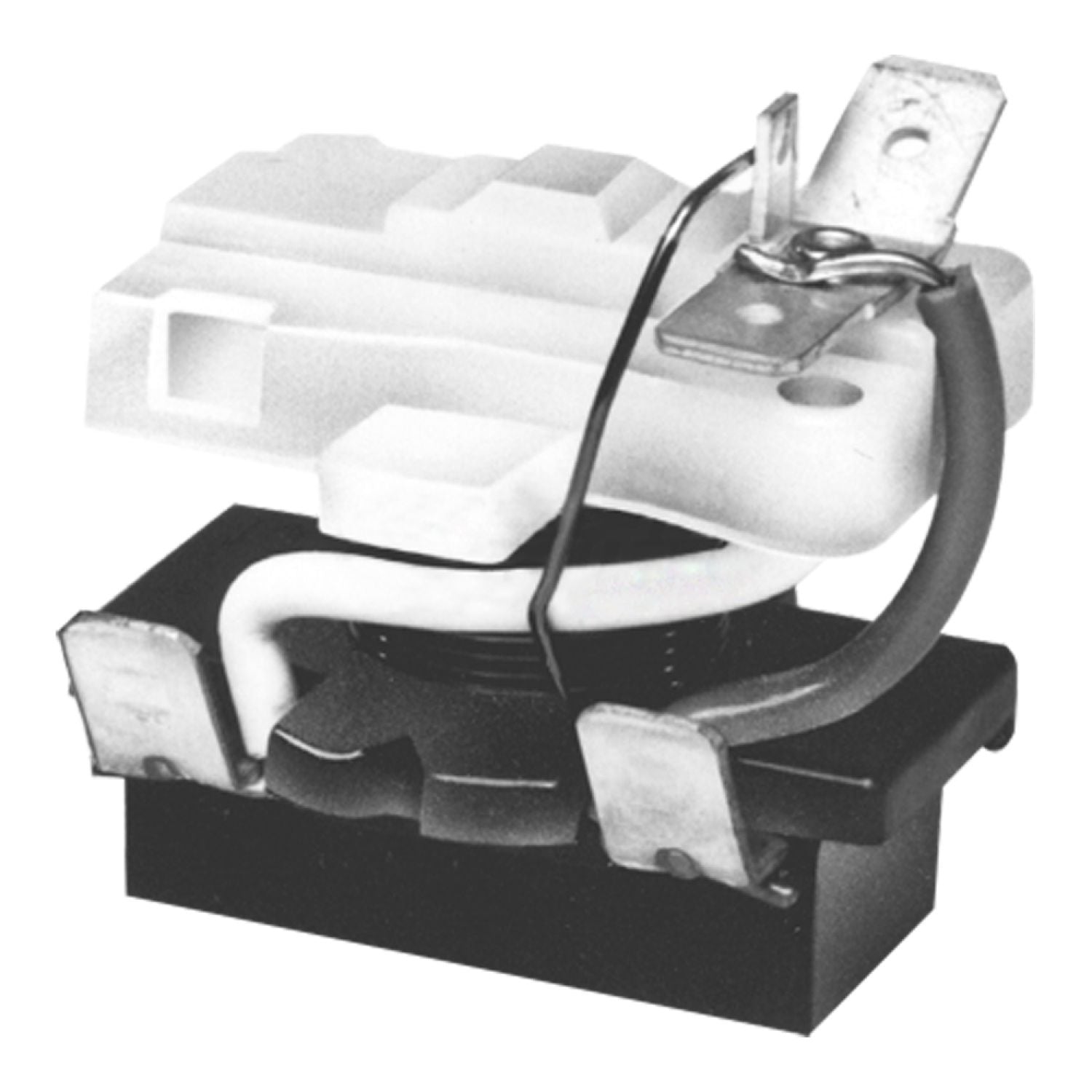

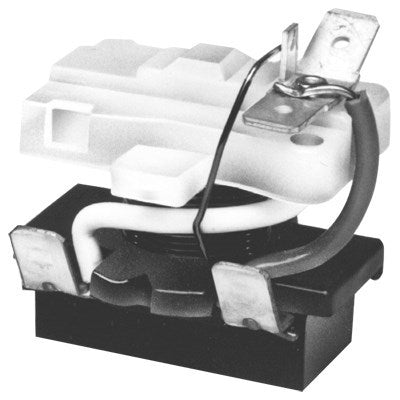

The MARS Current Relay 27001 is designed for a variety of applications, replacing plug-on, bracket-type, split-phase, and capacitor-start current relays. This relay features a maximum pick-up of three point eight amps and a minimum drop-out of three point two amps. It is ideal for one-twelfth horsepower applications at one hundred fifteen volts.

• Universal replacement for current relays.
• Maximum pick-up current is three point eight amps.
• Minimum drop-out current is three point two amps.

Product Highlights

This product is suitable for HVAC and refrigeration needs, ensuring reliable operation in critical applications.

Product Information

Standard Information

• Brand: MARS
• MPN: 27001

Technical Specifications

• Product Type: Relay
• Maximum Pick-Up: 3.8 amps
• Minimum Drop-Out: 3.2 amps
• Most Commonly Used HP at 115V: 1/12
• Length: 2.00 inches
• Width: 2.00 inches
• Height: 2.00 inches
• Weight: 0.05 lbs
