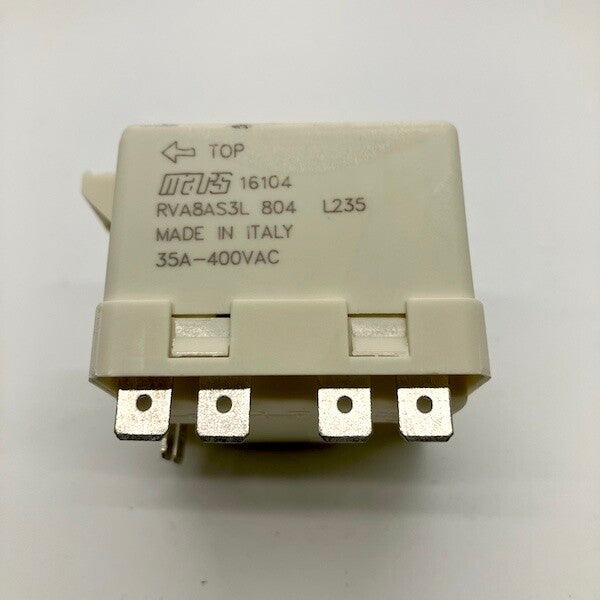

MARS 16104 Potential Relay

Product Description

The MARS 16104 Potential Relay is designed specifically for motor starting applications. It supports one-third horsepower motors operating at sixty hertz. The relay includes a quick connect terminal style, facilitating easy installation. It can handle a contact rating of thirty-five amps, and its pick-up voltage range is between three hundred thirty-five and three hundred sixty-three volts. The hold voltage for this relay is three hundred thirty-two volts, while the drop-out voltage ranges from fifty to one hundred volts.

• Designed for motor starting applications
• Contact rating of thirty-five amps
• Tab type bracket for easy mounting

Product Highlights

This relay functions efficiently in applications where reliable motor starting is necessary. Its robust design allows it to work within specified voltage ranges, and the integrated mount simplifies installation.

Product Information

Standard Information

• Manufacturer: Mars
• Product: Relay

Technical Specifications

• Motor Size: 1/3 HP
• MPN: 16104
• Weight: 0.30 lbs
• Contact Rating Amps: 35
• Pick-up Voltage: 335-363
• Relay Type: Motor Starting
• Mounting: Tab Type Bracket Integrated To The Plastic Cover
• Hold Voltage: 332
• Drop-out Voltage: 50 to 100
• Hz: 60
• Terminal Style: Quick connect
• HP Rating: 1/3
