MARS 16022 Potential Relay - 1/3 HP, 180-193V, 35A

Product Description

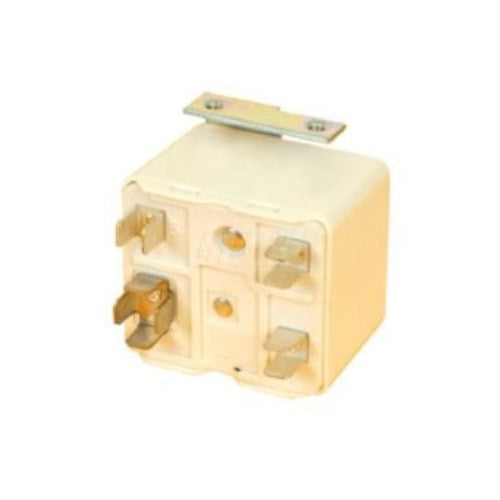

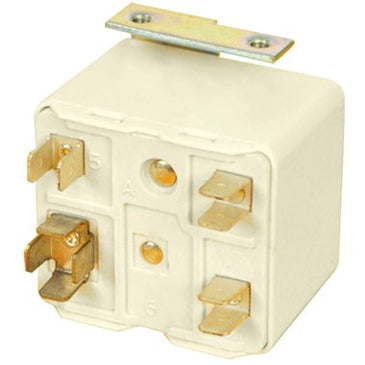

The MARS 16022 potential relay is suitable for motor starting applications. This relay supports motors rated at one-third horsepower. It operates within a voltage range of one hundred eighty to one hundred ninety-three volts for pick-up and forty to ninety volts for drop-out, along with a hold voltage of three hundred twenty-two volts. It has a current rating of thirty-five amps and functions at sixty hertz. The relay comes equipped with quick connect terminals and a tab mount for streamlined installation. Its integrated bracket is included in the plastic cover design.

• Operates with motors up to 1/3 HP
• Rated for 35A at 60 Hz
• Features quick connect terminals for easy installation

Product Highlights

This relay is ideal for various motor starting tasks in HVAC and industrial applications.

Product Information

Standard Information

• Item Number: 16022
• Brand: MARS

Technical Specifications

• Amperage: 35 AMP
• Product Type: Motor Starting 1/3 HP
• Voltage: 180 to 193V, 40 to 90V Drop-Out
• Relay Type: Potential Relays
• Mounting Style: Tab Mount
• Horsepower Rating: 1/3
• Hold Voltage: 322 V
• Pick-Up Voltage: 180 to 193 V
