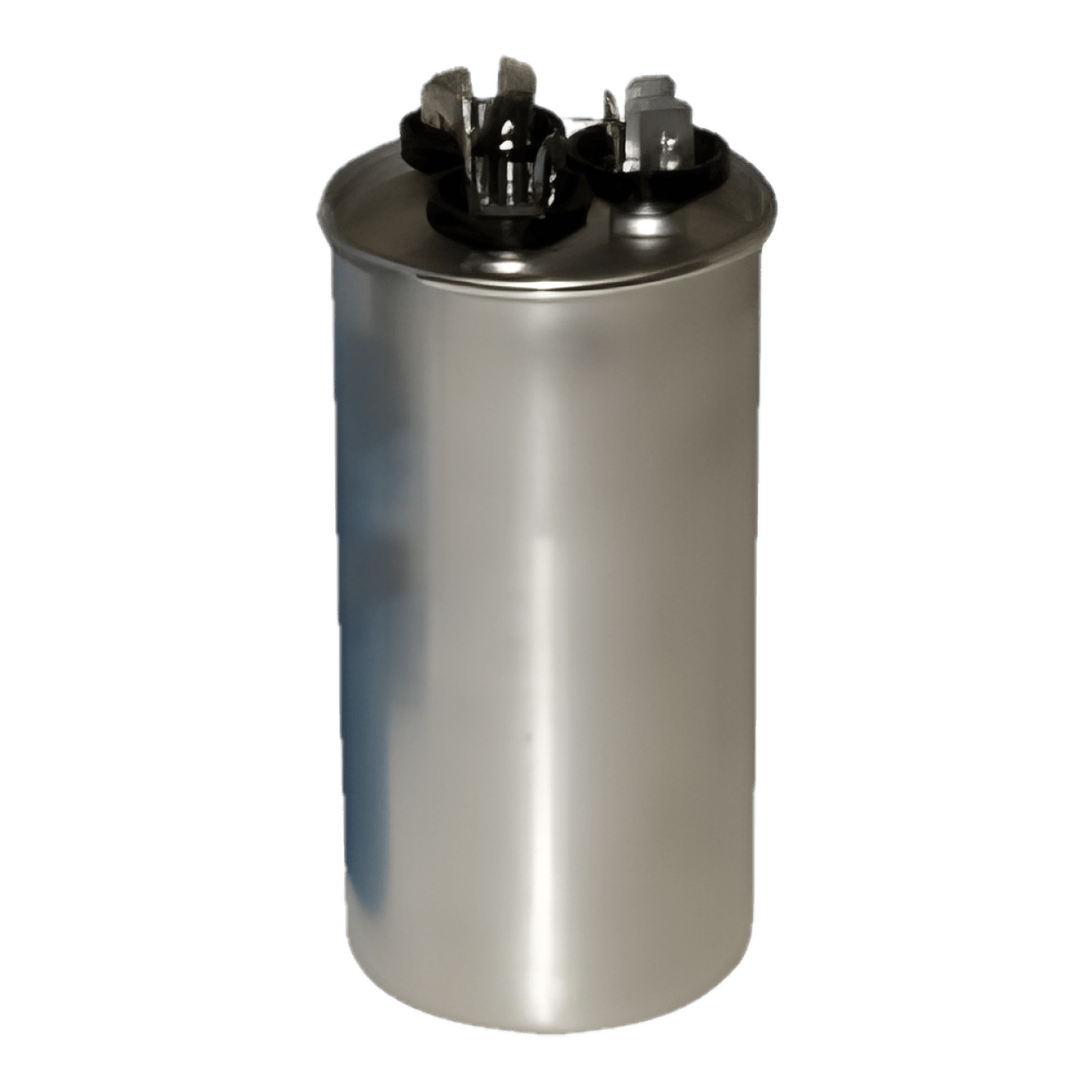

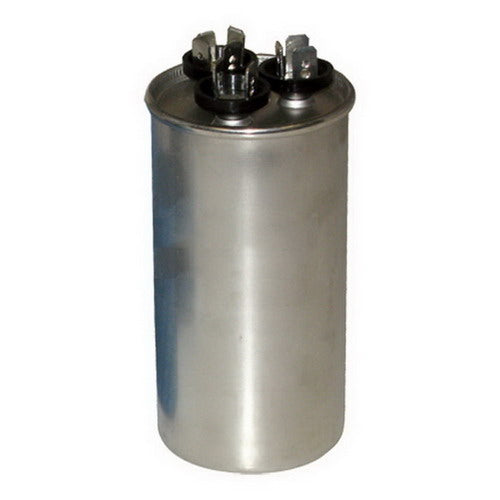

MARS 12788 Jard 45/5 MFD 440VAC Dual Section Round Motor Run Capacitor

Product Description

The MARS 12788 Jard Dual Section Round Motor Run Capacitor is a vital component for HVAC systems. It is designed for applications requiring dual microfarad ratings. This capacitor ensures effective operation of electric motors with a capacitance rating of forty-five and five microfarads and a voltage rating of four hundred forty volts AC. It operates within a temperature range from minus forty to seventy degrees Celsius and meets UL and CSA standards for safety and reliability.

• Capacitance: 45/5 MFD
• Voltage Rating: 440VAC
• Material: Aluminum

Product Highlights

This MARS capacitor features a dual section design ideal for two microfarad applications, providing optimal performance in HVAC systems.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 12788

Technical Specifications

• Type: Dual Section
• Shape: Round
• Capacitance: 45/5 MFD
• Voltage Rating: 440VAC
• Frequency Rating: 50/60 Hz
• Terminal: 4, 3, 2
• Outside Diameter: 2 inches
• Overall Height: 4.375 inches
• Material: Aluminum
• Temperature Rating: -40 to 70 Deg C
• Standards/Approvals: UL Listed and CSA Certified
