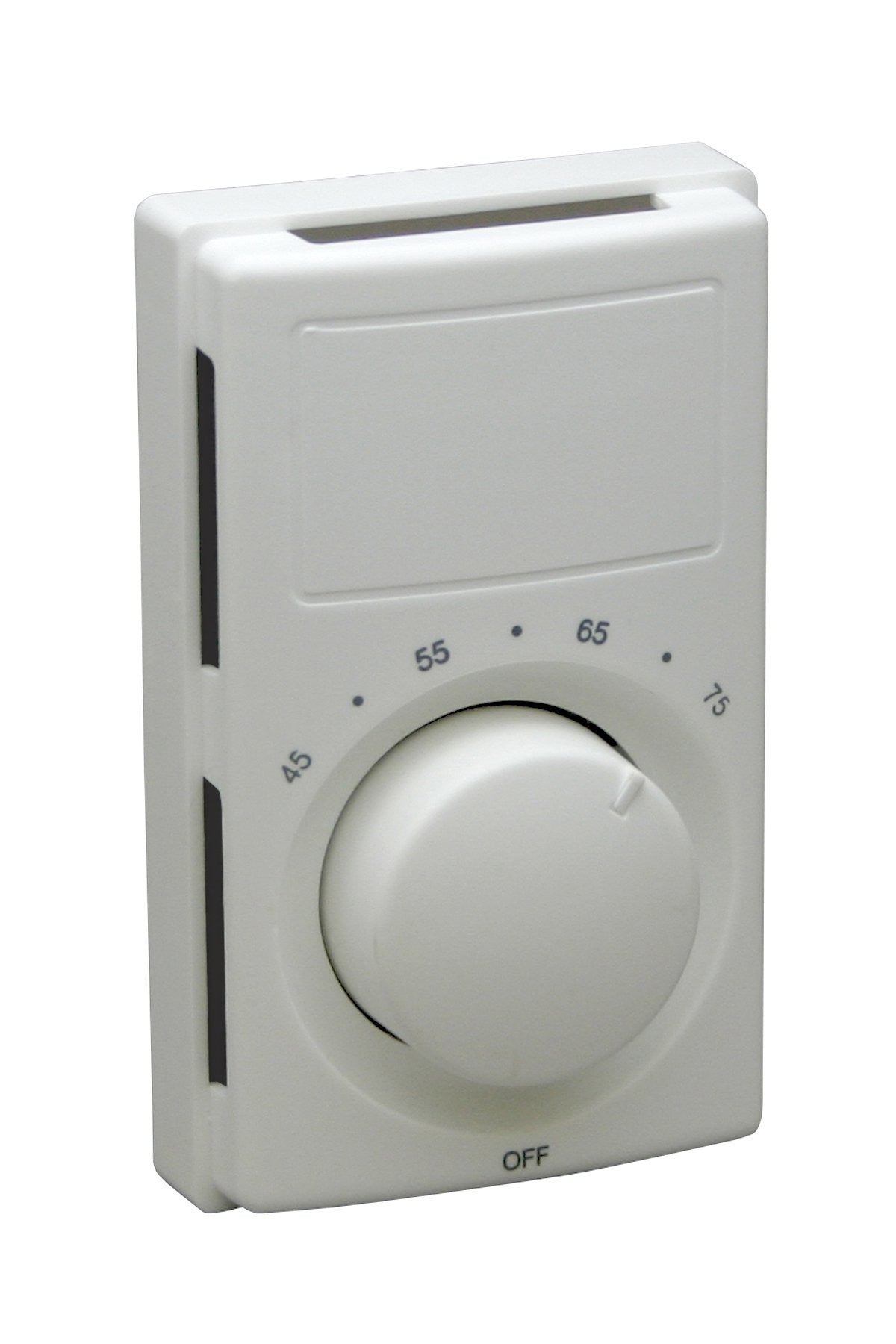

Marley Engineered Products M601W Line Voltage Wall Thermostat

Product Description

The MARLEY ENGINEERED PRODUCTS M601W is a line-voltage, single-pole wall thermostat designed for electric heating applications. It mounts directly on the wall and operates at line voltage, making it compatible with baseboard heaters, fan-forced wall heaters, and similar resistive heating equipment. The snap-action design extends contact life by reducing arcing during switching. With a temperature range of 45 to 75 degrees F and a 4-degree differential, it delivers straightforward, reliable heat control in residential and light commercial spaces. Installation and service are handled by licensed electricians familiar with line-voltage thermostat wiring.

The M601W is suited for residential and light commercial electric heating systems where a compact, line-voltage thermostat is required. Its heating-only, single-pole configuration makes it appropriate for dedicated electric baseboard or wall heater circuits that do not require cooling control or multi-pole switching. The compact form factor fits standard electrical boxes and is a common replacement in retrofit and new-installation scenarios.

Key Features

• Line-voltage, heating-only operation for direct connection to electric heating circuits
• Single-pole design simplifies wiring on dedicated heating circuits
• Snap-action switch mechanism extends contact life and reduces arcing
• Temperature range of 45 to 75 degrees F covers typical residential heating setpoints
• 4-degree differential provides stable on/off cycling and reduces short cycling
• Compact footprint at 2.24 inches wide by 2.56 inches deep by 4.61 inches tall

Compatibility

Designed as an OEM-style line-voltage wall thermostat for use with single-pole electric heating circuits including baseboard and wall heater applications.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Shut off power at the circuit breaker before removing the existing thermostat or making any wiring connections. Line-voltage thermostats carry full circuit voltage and must not be wired to low-voltage systems. Verify the circuit amperage does not exceed the thermostat rating before energizing.
