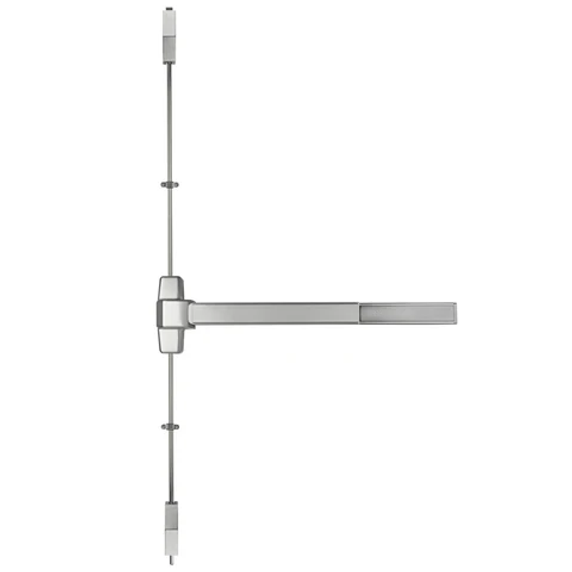

Marks Hardware M9900F-VR-32D-48 Fire Rated Surface Vertical Rod Exit Device

Product Description

The Marks Hardware M9900F-VR-32D-48 is a fire-rated surface vertical rod exit device designed for high-impact applications. It meets panic hardware needs in schools, universities, and commercial buildings. This Grade 1 exit device is a reliable retrofit for various door preps. Its robust cast chassis provides longevity, and the touchbar is designed to minimize accidents.

• Grade 1 panic exit hardware.
• Heavy-duty construction for enhanced durability.
• Fire-rated for up to three-hour fire doors.

Product Highlights

This exit device is essential for ensuring safety and compliance in high-traffic areas.

Product Information

Standard Information

• Device Head Cover: Zinc alloy or stainless steel
• Standard Height: Seven feet doors

Technical Specifications

• Door Thickness: One and three quarters inches (44 mm)
• Chassis: Steel, plated
• Mechanism Housing: Extruded aluminum
• Push Bar Base: Extruded aluminum
• Touch Plate: Stainless steel
• End Cap: Stainless steel
• Top Latch: Stainless steel thirty-seven sixty-fourths inch (14.8 mm)
• Bottom Latch: Stainless steel thirty-seven sixty-fourths inch (14.8 mm)
