Marks Hardware M195F/19 Exit Device Trim

Product Description

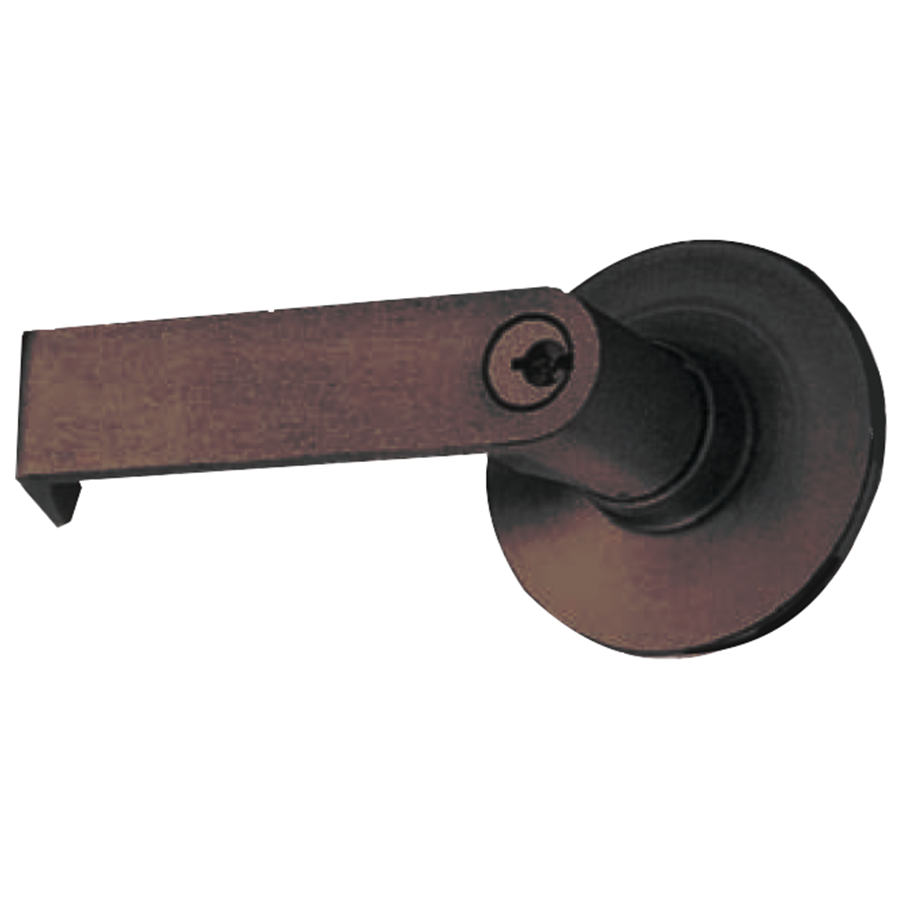

The Marks Hardware M195F/19 exit device trim is designed for use with rim and vertical rod exit devices like the M9900 Series. This trim is characterized by a storeroom function, featuring a Schlage C keyway and a non-handed design that allows for easy field reversal. It is suitable for doors with a thickness ranging from one and five-eighths inches to one and seven-eighths inches.

• Key retracts latch bolt (ANSI Function 09)
• Solid cast zinc lever with half-inch return
• Thru-bolted, three and seven-sixteenths inches spring-loaded roses

Product Highlights

This product is recognized for its durability and ease of installation. It meets ADA requirements, making it a reliable choice for accessibility.

Product Information

Standard Information

• Brand: Marks USA
• Finishes: US19 Flat Black, US26D Satin Chrome

Technical Specifications

• Usage: Heavy Duty
• ANSI Grade: ANSI Grade 1
• Handing: Non-Handed – Completely Reversible
• Function: Storeroom
• Keyway: Schlage C Keyway
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Door Thickness: One and five-eighths inches to one and seven-eighths inches
• Compatible Devices: M9900 Series
• Product Type: Exit Device Trim
• Trim / Function: Nightlatch/Storeroom Key Retracts Latch
• Trim Design: Flat Lever with Return, Rose
• Stile Type: Wide Stile and Solid Door
• Category: Exit Devices & Exit Alarms, Exit Device Trims
• Certifications: A156.3, ANSI, UL Listed 3 Hour
• Compatibility: M9900 Exit Devices
• Cylinder Type: Marks Conventional
• Door Application: Panic Devices & Exit Alarms
• Fire Rated: Yes
• Fire Rating: 180 min
• Grade: Grade 1
• Lever Design: American
• Manufacturer: Marks USA
• Material: Steel
• Mechanical Option: Standard Clutch
• Mounting: Thru Bolt
• Rose/Escutcheon: Three and seven-sixteenths inches Diameter, Spring Loaded
• Series: Series M195
