Marks Hardware 195T/26D Corridor Lever Lockset 2-3/4 Inch 199701

Product Description

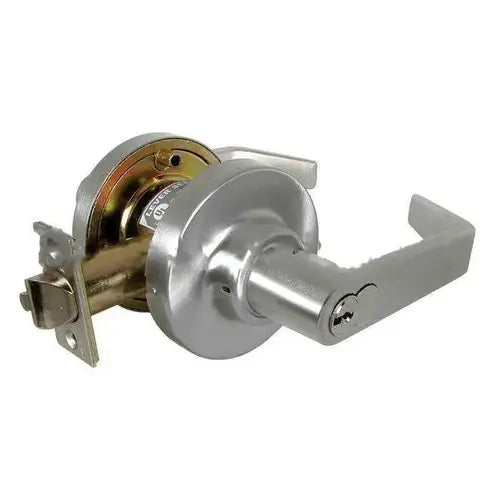

The Marks Hardware 195T/26D Corridor Lever Lockset is a robust locking solution, designed for dormitory functions. It features a 2-3/4 inch backset and an ASA strike. The product comes with a C keyway and a satin chrome finish, ensuring durability and security.

• Deadlocking latch bolt operated by levers with a push-button lock on the inside lever.
• Includes a conventional cylinder and two keys.
• Equipped with a thru-bolted, spring-loaded rose for additional strength.

Product Highlights

This cylindrical lock meets ANSI/BHMA Grade 1 standards and is UL/CUL listed, making it suitable for high-traffic areas.

Product Information

Standard Information

• Finish: Satin Chrome
• Function: T-Corridor

Technical Specifications

• Grade: ANSI/BHMA Grade 1
• ADA Compliant: Yes
• Front Size: 1-1/8 inch x 2-1/4 inch
• Cylinder Type: Conventional
• Handle Type: Lever
• Strike Type: ASA Curved Lip
• Backset: 2-3/4 inch
• Keyway: Marks C
• Warranty: Lifetime mechanical
• Included Components: Two Keys
• Latch Bolt Material: Stainless Steel
• Lever Style: 195 Lever
• Color Code: 626/US26D
• Trim Material: Solid Cast Zamac
