Marks Hardware 195RDW/10B Institution Lever Lockset SFIC Prep

Product Description

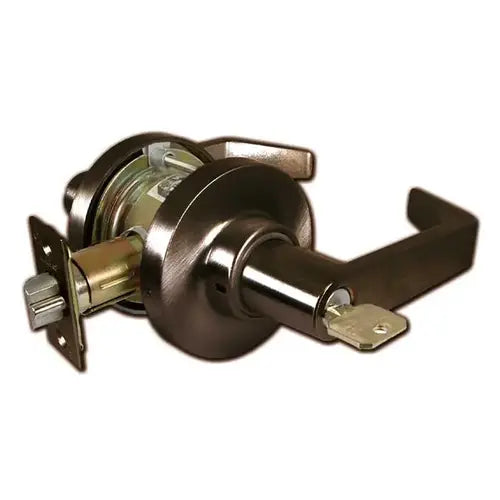

The Marks Hardware 195RDW/10B Institution Lever Lockset features a robust ANSI/BHMA Grade 1 design. This lockset includes a Small Format Interchangeable Core (SFIC) prep and offers a deadlocking latch bolt that operates via a key in both levers. A unique design keeps both levers inoperable for enhanced security, ensuring it is suitable for institutional use.

• Thru-bolted spring-loaded rose for secure installation
• ANSI/BHMA Grade 1 certification for superior strength
• Compatible with standard door thickness between one and five-eighths inches to one and seven-eighths inches

Product Highlights

This lever lockset is ideal for institutional applications where durability and security are essential.

Product Information

Standard Information

• Manufacturer: Marks Hardware
• Lockset Type: Institution

Technical Specifications

• Finish: Oil Rubbed Dark Bronze
• Grade: ANSI/BHMA Grade 1
• Backset: Two and three-quarters inches
• Function: DW-Institution
• Door Thickness: One and five-eighths inches to one and seven-eighths inches
• Strike: ANSI, one and one-quarter inches by four and seven-eighths inches
• Bore Size: Two point one two five inches
• Cylinder Type: SFIC Less Core-Small Format Prep
• Lever Style: 195 Lever
• Rose Diameter: Three and seven-sixteenths inches
• ADA Compliant: YES
• Standards: ANSI/BHMA A156.2; UL and C UL Listed
• Material: Steel
