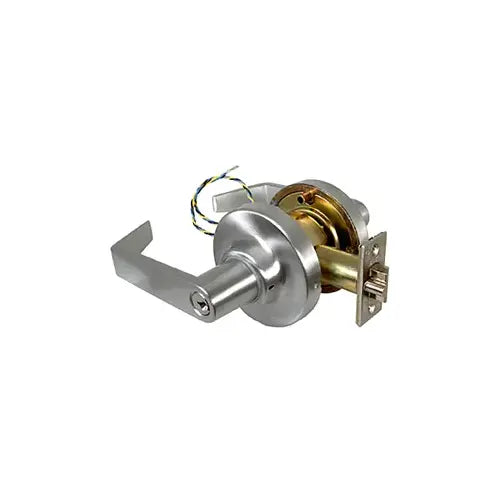

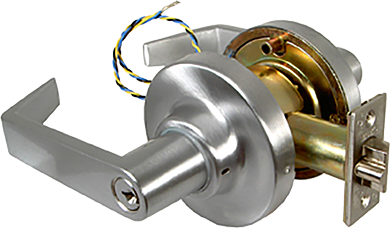

Marks Hardware 195FEU/26D-H2 Door Lock Leverset Electrified 12 Volt 2-3/4 inches Backset

Product Description

The Marks Hardware 195FEU/26D-H2 door lock leverset is an electrified leverset that operates on twelve volts. It features a unique clutch mechanism that reduces wear over time. With a backset of two and three-quarter inches and a throw of nine-sixteenths of an inch, this product is designed for durability and functionality.

• ADA Compliant design
• Fail-secure operation for security
• ANSI Grade 1 rated for reliability

Product Highlights

This product is ideal for commercial settings, offering reliable access and security with its electrified functionality.

Product Information

Standard Information

• Design: Flat lever with return
• Finish: US26D Satin Chrome

Technical Specifications

• Function: Electronically unlocked
• Grade: Grade 1
• Keyway: Schlage C
• Locking State: Fail-secure
• Product Type: Electrified cylindrical lock
• Voltage: 12 Volts DC
• Backset: 2-3/4 inches
• Handing: Field reversible
• Cylinder Included: Yes
• Cylinder Type: 6-pin cylinder
• Latch Bolt Type: Deadlatch
• Door Bore Size: 2-1/8 inches
• Door Thickness Min: 1-5/8 inches
• Door Thickness Max: 1-7/8 inches
• Height: 4 inches
• Length: 8.25 inches
• Width: 7 inches
• Manufacturer: Marks USA
• Certification: UL Listed
• Fire Rating: 120 min
