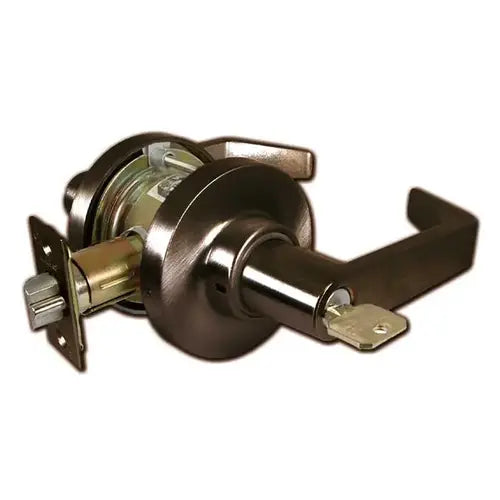

Marks Hardware 195DB/10B Survivor Classroom Lock

Product Description

The Marks Hardware 195DB/10B Survivor Classroom Lock is built for securing classroom environments. This Grade 1 lockset features a conventional cylinder and a 195 lever style. It is compatible with doors having a thickness between one and five-eighths inches to one and seven-eighths inches, and it includes a two and three-quarter-inch backset.

• Thru-Bolted Spring Loaded Rose
• Suitable for various door types
• Versatile levers for easy entrance and exit

Product Highlights

This lock is ANSI/BHMA A156.2 compliant and UL/CUL listed, ensuring it meets industry standards for safety and quality.

Product Information

Standard Information

• Brand: Marks Hardware
• MPN: 195DB/10B

Technical Specifications

• Finish: Oil Rubbed Dark Bronze
• Grade: ANSI/BHMA Grade 1
• Backset: Two and three-quarter inches
• Keyway: Marks C
• Function: DB-Classroom Intruder
• Door Thickness: One and five-eighths inches to one and seven-eighths inches
• Strike: ANSI, one and one-quarter inches x four and seven-eighths inches, one and one-quarter inch lip, square corner
• Bore Size: Two and one-eighth inches
• Cylinder Type: Conventional Cylinder
• Lever Style: 195 Lever
• Rose/Escutcheon Trim: Round Rose
• Product Type: Cylindrical Lock
• Series: 195 Series
• Warranty: Lifetime mechanical
• Color Code: 613/US10B
• Handle Type: Lever
• Rose Diameter: Three and seven-sixteenths inches
• ANSI Function: F110
• Latch Number: 1834
• Latch Type: Deadlocking
• Strike Number: 1135
• Strike Type: ASA Curved Lip
• ADA Compliant: Yes
• Finish Family: Dark Bronze
• Door Cross Bore: Two and one-eighth inches
• Standards: ANSI/BHMA A156.2; UL and CUL Listed
• Cylinder Type Used: Conventional
• Function Description: Either lever operates latchbolt (except when outside lever is locked by key from either side). Outside lever remains locked upon egress. Inside lever always active.
• Front Size: One and one-eighth inches x two and one-quarter inches
• Function Family: Classroom Security/Intruder
• Strike Lip: One and one-quarter inches
• Trim Material: Solid Cast Zamac (Lever)
• Latch Throw: Nine-sixteenths inch
• Latch Bolt Material: Stainless Steel
• Lever Style Family: Straight Return Lever
• Sub-Series: CL_Cylindrical_Locks_Marks_USA_32
• Strike Size: Four and seven-eighths inches
• Manufacturer: Marks USA
• Part Number: 195DB/10B-F7
• Item Model Number: 195DB/10B-F7
• Style: Heavy Duty
• Item Package Quantity: One
• Special Features: Easy to Install
• Included Components: Hardware
