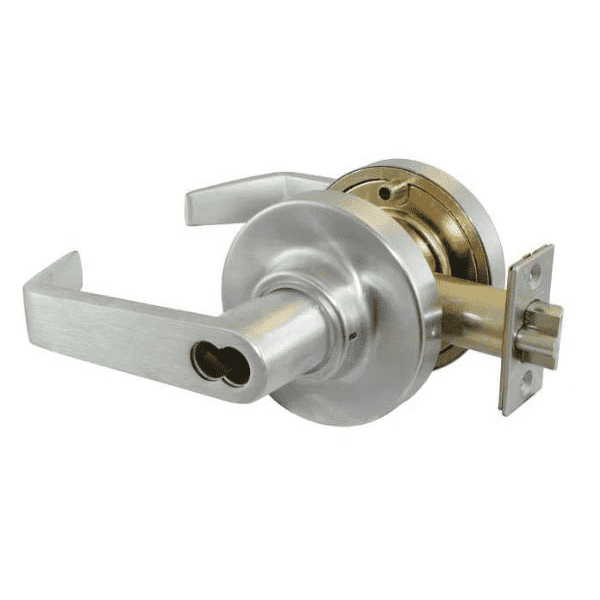

Marks Hardware 175RAB/26D-F12 Fsic Corbin - Entry Lever Lockset 2-3/4 inches Backset

Product Description

The MARKS HARDWARE 175RAB/26D-F12 Fsic Corbin entry lever lockset is a Grade 2 Survivor Series lock with a 2-3/4" backset and ASA strike. Designed for use with a Corbin 6-Pin Full Size IC (less core), it features a deadlocking latch and is finished in satin chrome. This cylindrical lock meets ANSI/BHMA Grade 2 standards and is UL and CUL listed.

• Features a Thru-Bolted Spring Loaded Rose
• Equipped with a deadlocking latch
• Designed for Corbin 6-Pin IC Prep

Product Highlights

Durable Grade 2 entry lever lockset with a satin chrome finish, suitable for commercial applications requiring both security and ease of use.

Product Information

Standard Information

• Brand: MARKS HARDWARE
• Manufacturer Part Number: 175RAB/26D-F12

Technical Specifications

• Strike Size: 4-7/8 Inch
• Finish: Satin Chrome
• Strike Number: 1145
• Latch Number: 1134
• Finish Description: Satin Chrome
• Function: AB-Entry
• Latch Type: Deadlocking
• Function Description: Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
• ANSI Function: F109
• Grade: ANSI/BHMA Grade 2
• ADA Compliant: YES
• Front Size: 1-1/8" x 2-1/4"
• Cylinder Type: LFIC Less Core-Large Format Prep
• Handle Type: Lever
• Strike: #1145/32D
• Function Family: Entry/Entrance/Office
• Bore Size: 2.1250
• Standards: ANSI/BHMA A156.2; UL and CUL Listed
• Lever Style: 175 Lever
• Product Type: Cylindrical Lock
• Rose/Escutcheon Trim: Round Rose
• Features: Thru-Bolted Spring Loaded Rose
• Strike Type: ASA Strike
• Backset: 2-3/4 Inch
• Series: 175 Series
• Cylinder Type Used: Corbin IC Core
• Warranty: Lifetime Mechanical and Finish
• Color Code: 626/US26D
• Rose Diameter: 3-1/4 Inch
• Latch Throw: 1/2 Inch
• Finish Family: Satin Chrome
• Door Cross Bore: 2.125 Inch
• Strike Lip: 1-1/4 Inch
• Trim Material: Solid Cast Zamac (Lever)
• Manufacturer Parent: Napco Security Technologies
• Latch Bolt Material: Stainless Steel
• Lever Style Family: Straight Return Lever
• Sub-Series: 175RAB-26D-F12
• Alternate Part Number-1: 190430
• Lock Function: ANSI F109 Entrance
• Handing: Non-Handed
• Door Thickness: 1-5/8” to 1-7/8”
