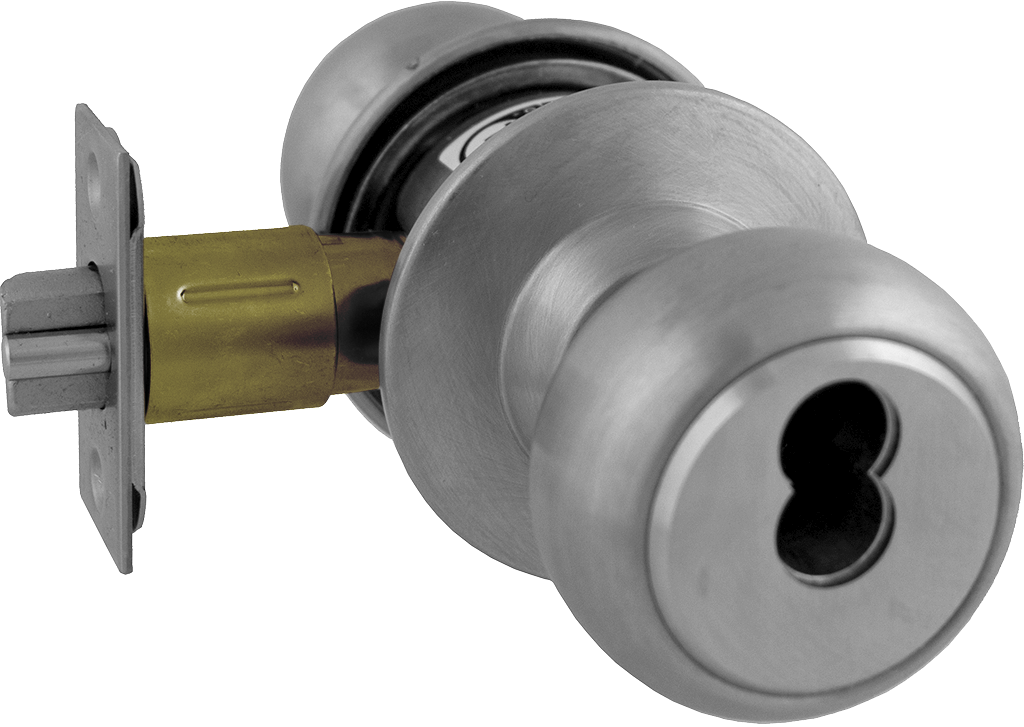

Marks Hardware 110RAB/32D-4 SFIC - Entry Knob, Small Format IC, Less Core, 2-3/4 inches Backset, T-Strike, Grade 2 REPLACEMENT MPN

Product Description

The Marks Hardware 110RAB/32D-4 SFIC entry knob is built for strength and reliability. This small format IC knob comes without a core, featuring a backset of two and three-quarter inches and a T-strike. The locking function allows the outside to be secure when the turn-button is engaged from the inside, while a key from the outside releases it. To unlock, simply rotate the inside knob to disengage the button and allow outside access.

• Features a two and three-quarter inch backset and T-strike.
• Constructed with cast retractors mounted on bronze roller bearings.
• Engineered for environments where long-lasting durability is essential.

Product Highlights

This entry knob is designed for commercial use, offering consistent performance where durability is prioritized.

Product Information

Standard Information

• Grade: Grade 2
• Backset: 2-3/4 inches

Technical Specifications

• Handing: Field Reversible
• Function: Entry with Push/Turn Button
• Cylinder Included: No
• Cylinder Type: Less SFIC Core
• Knob Style: Round Knob
• Strike Size: 2-3/4 inches x 1-1/8 inches
• Latch Bolt Type: Deadlatch
• Knob/Lever Design: 110
• Rose/Escutcheon Size: 2-3/4 inches
• Latch Bolt Faceplate Size: 2-1/4 inches x 1 inch
• Door Bore Size: 2-1/8 inches
• Lock Category: Cylindrical Lock
• Door Thickness Min: 1-5/8 inches
• Latch Bolt Face Type: Square Corner
• Latch Bolt Throw: 1/2 inch
• Rose/Escutcheon Style: Rose
• Door Thickness Max: 1-7/8 inches
• Knob/Lever Style: Knob
• Height: 3 inches
• Length: 9.5 inches
• Width: 3 inches
• Manufacturer: Marks USA
• Category: Commercial Locks, Cylindrical Knobs, Lock Sets
• Certifications: A156.2, ANSI, UL Listed 3 Hour
• Door Application: Lock Sets
• Door Thickness: 1-5/8 inches to 1-7/8 inches
• Faceplate Height: 2-1/4 inches
• Faceplate Width: 1-1/8 inches
• Finish Code: 630
• Finish Color: Satin Stainless Steel
• Fire Rated: Yes
• Fire Rating: 180 min
• Entrance: Entrance
• Knob Design: Round
• Series: 10 Line
• Strike: #1136, 2-3/4 inches T-strike
• Product Type: Cylindrical Lock
• Sales Category: Entry Lock
• Strike Type: T-strike
• UNSPSC Code: 46171500
• Brand: Marks Hardware
• MPN: 110RAB/32D-4
