Marks Hardware 110N/32D-4 Passage Knob 2-3/4 inches Backset

Product Description

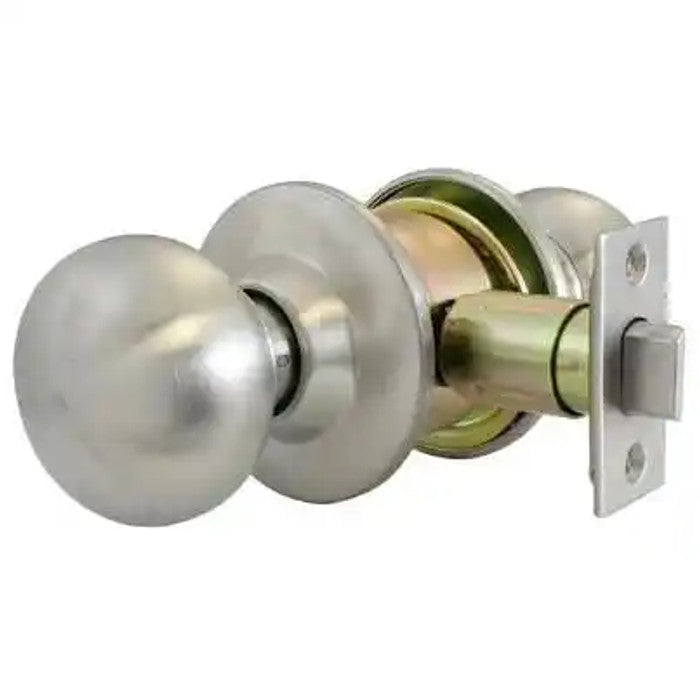

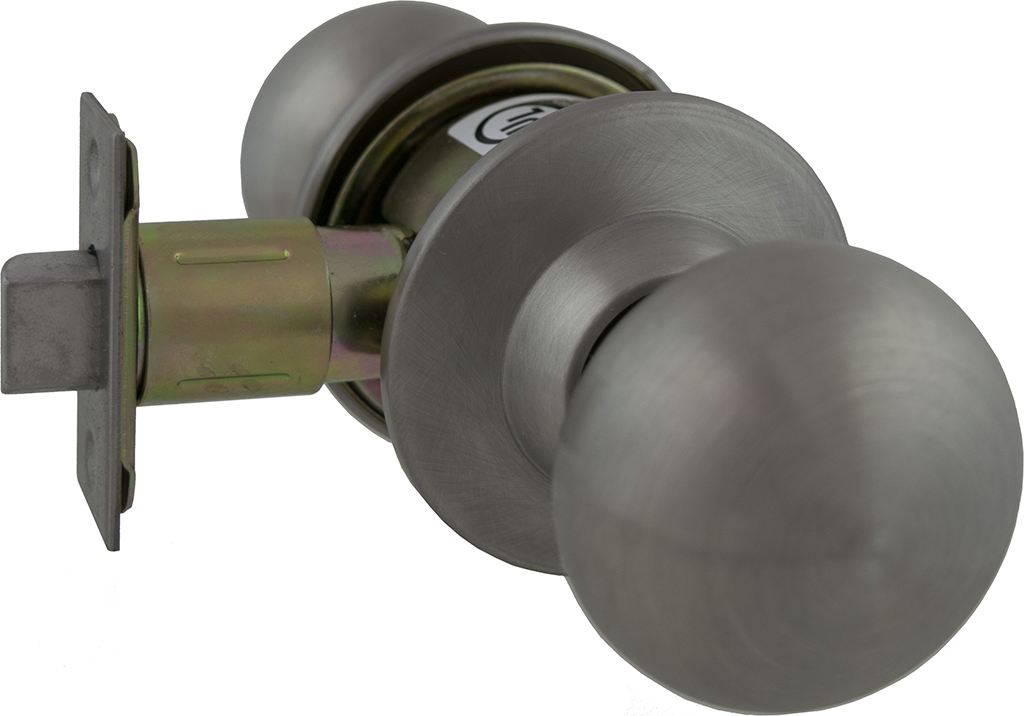

The Marks Hardware 110N/32D-4 is a reliable passage knob suitable for high-traffic areas. This product features a cylindrical lock chassis with cast retractors mounted on bronze roller bearings, ensuring smooth operation. The backset measures two and three-fourth inches, making it versatile for various door installations.

• Constructed with durable materials for long-lasting use.
• Field reversible handing for easy installation.
• Meets Grade 2 security standards.

Product Highlights

This knob is ideal for doors between one and five-eighths inches to one and seven-eighths inches thick, making it suitable for commercial applications.

Product Information

Standard Information

• Brand: Marks Hardware
• Function: Passage

Technical Specifications

• Grade: Grade 2
• Backset: 2-3/4 inches
• Handing: Field Reversible
• Cylinder Included: No
• Knob Style: Round Knob
• Strike Size: 2-3/4 inches x 1-1/8 inches
• Latch Bolt Type: Springlatch
• Door Bore Size: 2-1/8 inches
• Lock Category: Cylindrical Lock
• Door Thickness: 1-5/8 inches to 1-7/8 inches
• Fire Rated: Yes
• Fire Rating: 180 min
• Height: 3.15 inches
• Length: 9.45 inches
• Width: 3.15 inches
• Manufactured By: Marks USA
