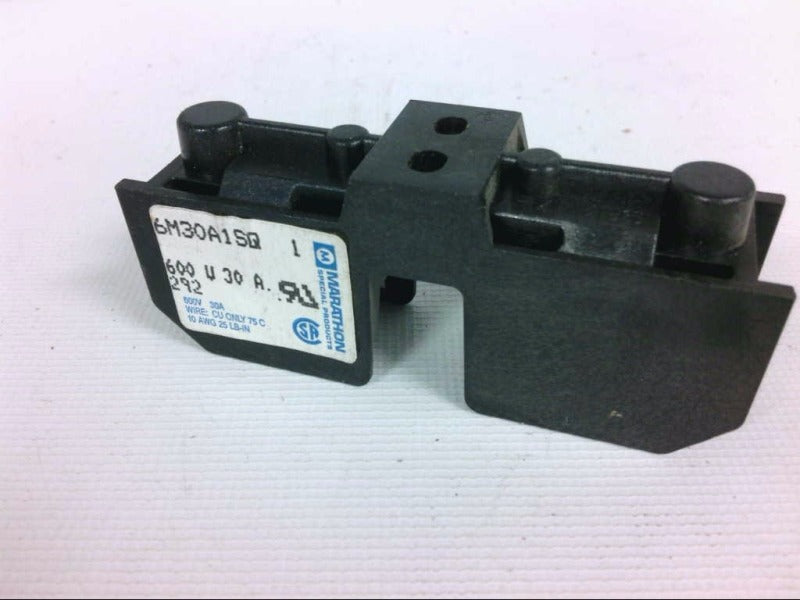

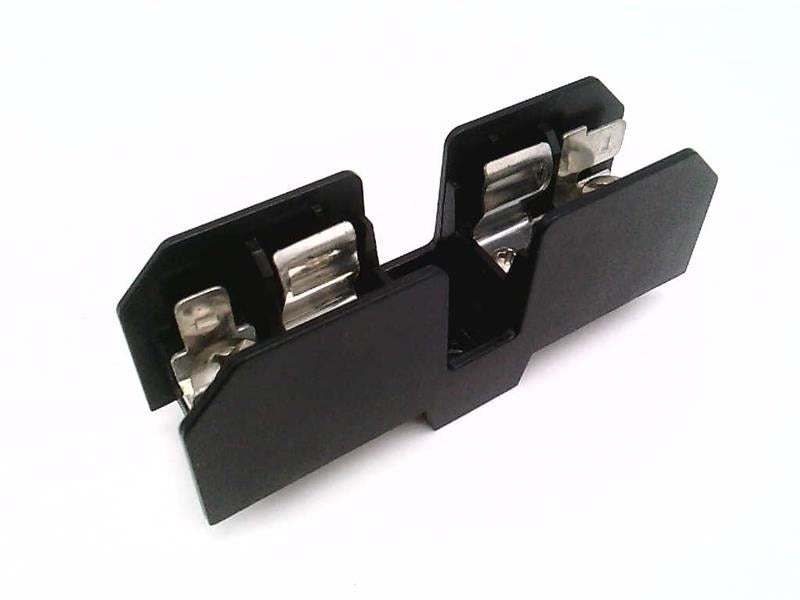

Marathon Special Products 6M30A1SQ Fuseblock Midget Series 30A 600V (1 Pole)

Product Description

Marathon Special Products 6M30A1SQ is a panel-mount Class M midget-series fuseblock rated 30 A and 600 V that accepts a 13/32 x 1-1/2 in (10.3 x 38 mm) cartridge fuse. The open-body thermoplastic base uses tin-plated copper-alloy clips and provides screw and quick-connect terminals for 10–22 AWG conductors. This single-pole branch-circuit holder is UL recognized and CSA certified and is tested to a 100,000 A interrupting capacity.

• Class M fuseblock rated 30 A, 600 V; accepts 13/32 x 1-1/2 in (10.3 x 38 mm) cartridge fuses
• Panel-mount thermoplastic body with screw and quick-connect terminals; tin-plated copper-alloy contacts for 10–22 AWG
• Single-pole configuration; UL recognized/listed and CSA certified; tested for 100,000 A (100 kA) interrupting capacity

Product Highlights

Panel-mount Class M fuseholder, 30 A/600 V, 1-pole, screw and quick-connect terminals, UL/CSA approvals, 100 kA interrupting capacity

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 6M30A1SQ
