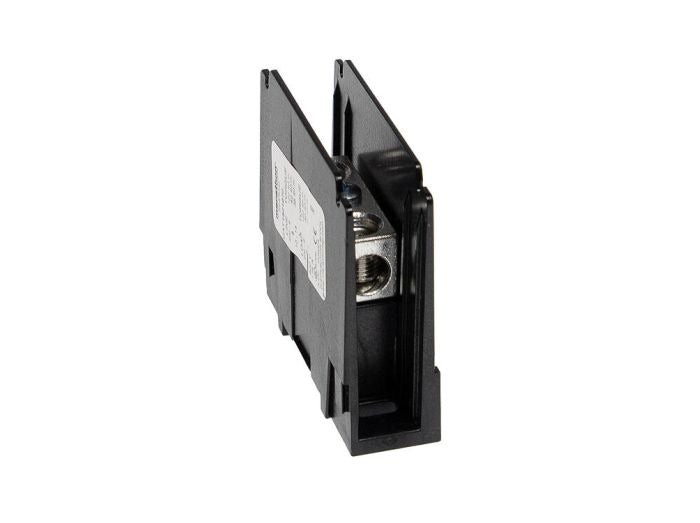

Marathon Special Products 132 Splicer Block 175 A (1 Pole) 1321972

Product Description

Marathon Special Products 132 is a splicer power distribution block rated 175 A and 600 V AC/DC for copper conductors. It provides box-lug-to-box-lug connections with one input and one output per pole and accepts 2/0–14 AWG on both line and load. The thermoplastic block supports flexible stranded wire, mounts to DIN rail or panel, and includes a snap-on cover option; approvals include CE, CSA, and UL. Typical uses include power distribution, panel wiring, and terminal block applications.

• 175 A current rating and 600 V AC/DC voltage rating; single-pole configuration
• Box lug to box lug electrical connections; line and load accept (1) 2/0–14 AWG (copper conductors only)
• Thermoplastic construction; DIN rail or panel mountable; snap-on cover option available; CE, CSA, UL approvals

Product Highlights

1-pole splicer block, 175 A/600 V, box lug connections, accepts 2/0–14 AWG, DIN rail or panel mount

Product Information

Standard Information

• Brand: MARATHON SPECIAL PRODUCTS
• Manufacturer Part Number: 132
• Country of Origin: United States
