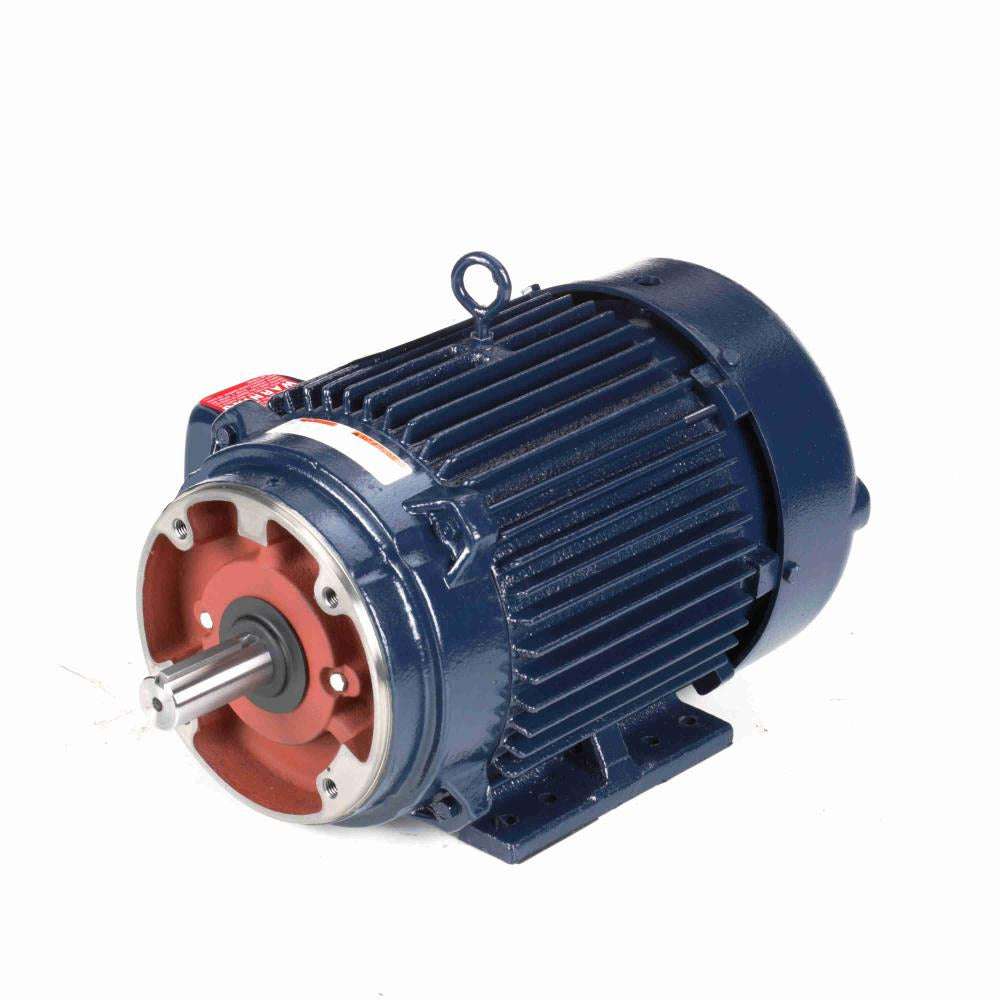

Marathon MY596 Vector Duty Motor 10 HP 230/460V TEFC

Product Description

The Marathon MY596 is a three-phase vector duty motor designed for a range of industrial applications. This motor offers a power rating of ten horsepower and operates at a speed of one thousand seven hundred sixty-five RPM. The frame size is 215TC, and it features a totally enclosed fan-cooled (TEFC) enclosure for durability. It operates on dual voltage of two hundred thirty or four hundred sixty volts and comes with a single shaft type.

• Electrical Type: Three Phase
• Enclosure: TEFC
• Mounting Type: C-Face / Footed

Product Highlights

This motor is built from cast iron for long-lasting performance. Its overload protector is integrated as a thermostat, ensuring protection during operation. The MY596 is suitable for various applications, including HVAC systems and industrial machinery.

Product Information

Standard Information

• Frame Size: 215TC
• Voltage: 230/460V

Technical Specifications

• Horsepower: 10 HP
• RPM: 1765
• Overload Protector: Thermostat
• Material: Cast Iron
• Amperage: 25.4/12.7
• Rotation: REV
• Phase: Three
• Shaft Type: Single
