Product Description

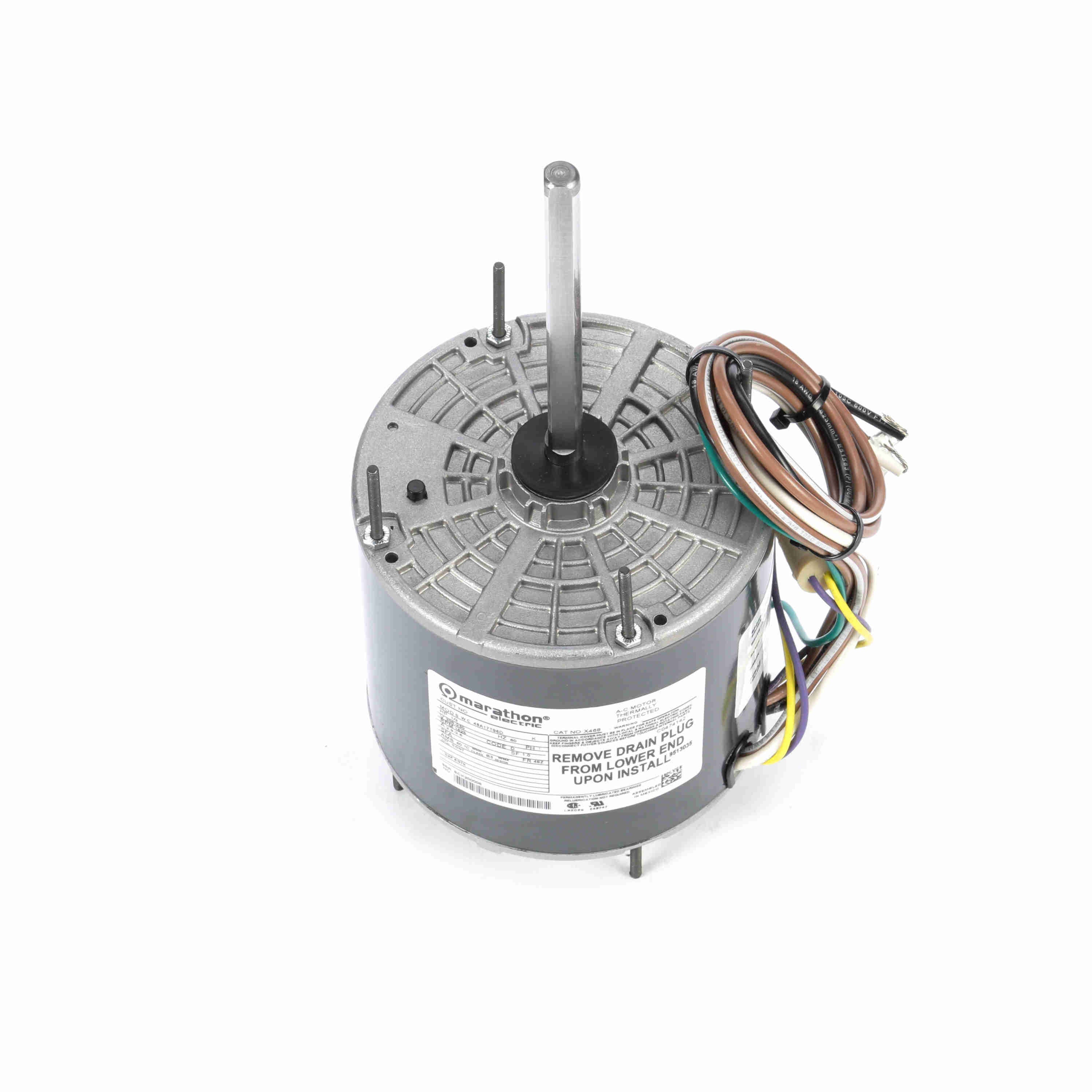

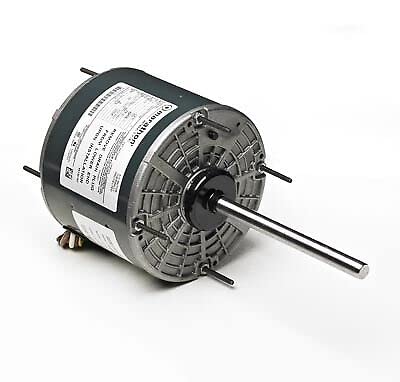

The Marathon MX468 is a permanent split capacitor motor designed for condenser fan applications. It operates at one-half horsepower and achieves a maximum speed of sixteen hundred twenty-five revolutions per minute. This single-phase motor is rated for two hundred eight to two hundred thirty volts, making it suitable for a variety of settings where reliable ventilation is required.
- Condenser fan motor is single phase with one-speed operation
- Runs at half horsepower with a maximum speed of sixteen hundred twenty-five RPM
- Features a totally enclosed frame with thru-bolt mounting and ball bearing system
Product Highlights
This motor is widely used for HVAC applications, ensuring efficient airflow in cooling systems.
Product Information
Standard Information
-
Brand: Marathon Electric
-
MPN: MX468
Technical Specifications
-
Voltage: 208-230 VAC
-
Speed: 1625 RPM
-
Horsepower: 0.5 hp
-
Frame Size: 48Y
-
Weight: 16 pounds
-
Dimensions: 13 x 8 x 8 inches
-
Amperage: 2.9-2.6
-
Shaft Size: 1/2 x 6 inches
