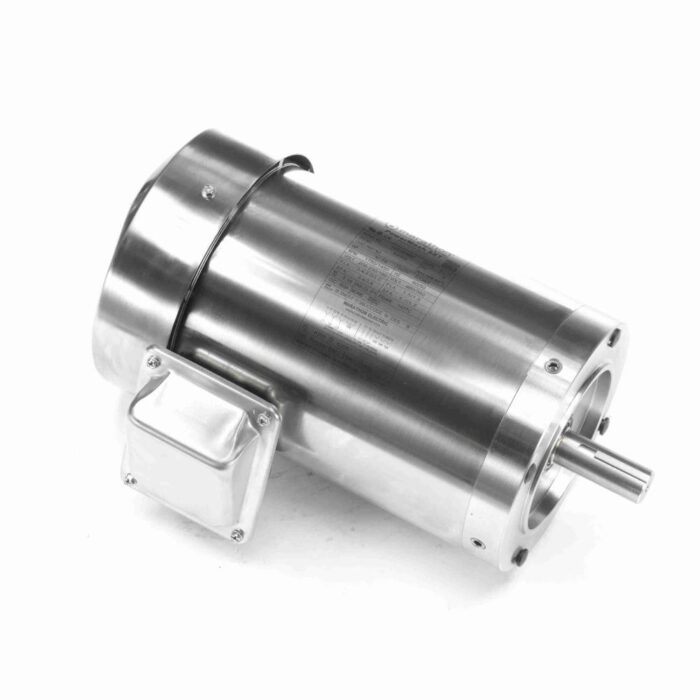

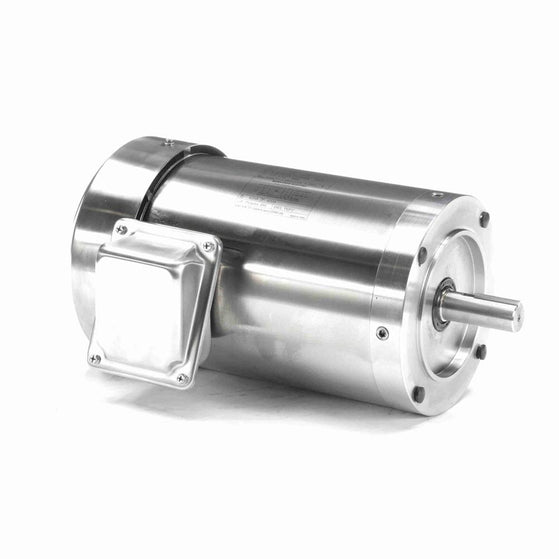

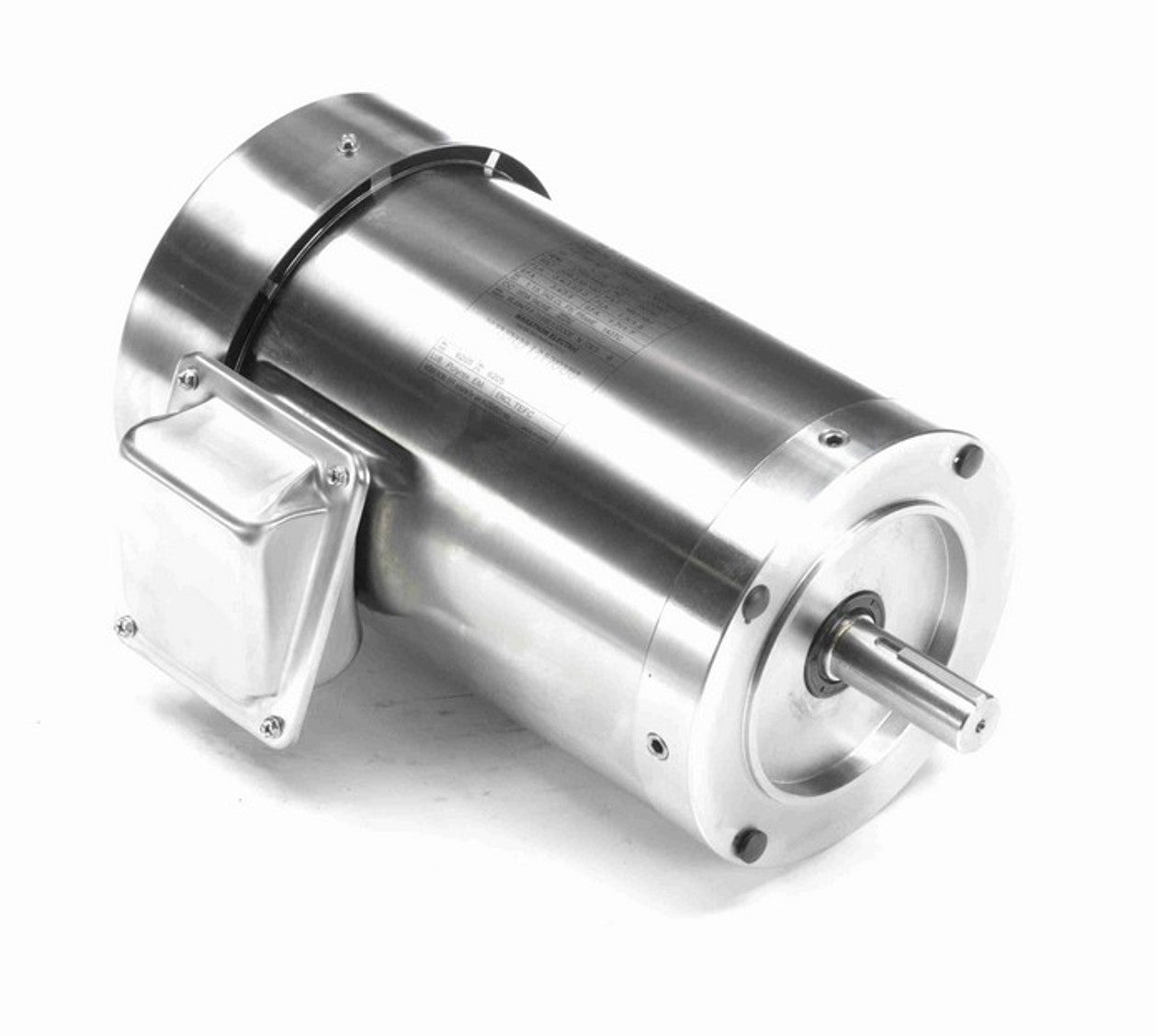

MARATHON MOTORS MN434B Electric Motor 1 HP 1800 RPM

Product Description

The MARATHON MOTORS MN434B is an electric motor suitable for use in harsh environments. It has a Totally Enclosed Fan-Cooled (TEFC) enclosure ensuring protection from external elements. This motor features a stainless steel keyed shaft and is designed with a C-face mount.

• Horsepower: 1 HP
• Speed: 1800 RPM
• Voltage: 208-230/460 Volts

Product Highlights

This motor is reversible and uses ball bearings for smooth operation. It is built with Class F insulation, making it reliable in demanding applications.

Product Information

Standard Information

• Manufacturer Part Number: MN434B
• Horsepower: 1 HP

Technical Specifications

• Speed: 1800 RPM
• Voltage: 208-230/460 Volts
• Frequency: 60hz
• Phase: Three Phase
• Frame Size: 143TC
• Mounting Type: C-face
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Shaft Type: Stainless Steel Keyed Shaft
• Shaft Diameter: 7/8 inches
• Shaft Length: 2 1/4 inches
• Service Factor: 1.15
• Overload Protection: None
• Rotation: Reversible
• Bearings: Ball Bearings
• Insulation Class: Class F
• Amps: 3.2-3.0/1.5 Amps
