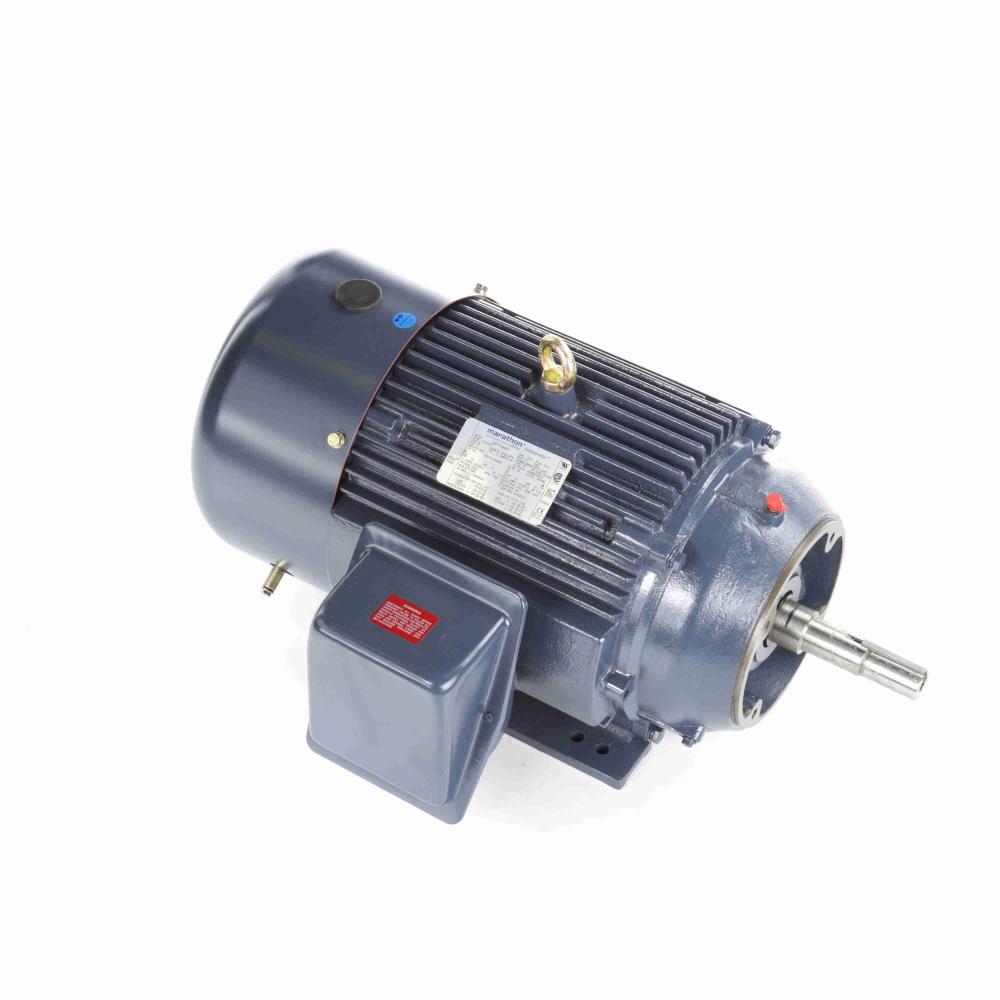

Marathon Motors MGT3125 Close Coupled Pump Motor

Product Description

The Marathon Motors MGT3125 is a close coupled pump motor suitable for continuous use. It features a strong base designed for challenging tasks. This motor operates on three-phase electrical power and comes with a totally enclosed fan cooled (TEFC) design.

• Electrical Type: Three Phase
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Duty Type: Continuous Duty

Product Highlights

This motor delivers reliable performance for industrial applications, offering durability and efficiency.

Product Information

Standard Information

• Manufacturer Part Number: MGT3125
• Electrical Type: Three Phase

Technical Specifications

• Voltage: 230/460V
• Frame: 256JM
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Material: Cast Iron
• Horsepower: 20 HP
• Rotation: Reversible
• RPM: 1768
• Number of Speeds: 1
• Amperage: 48.5/24.2 Amps
• Frequency: 60Hz
• Service Factor: 1.15
• Insulation Class: Class F
• Bearings: Ball Bearings
• Duty Type: Continuous Duty
