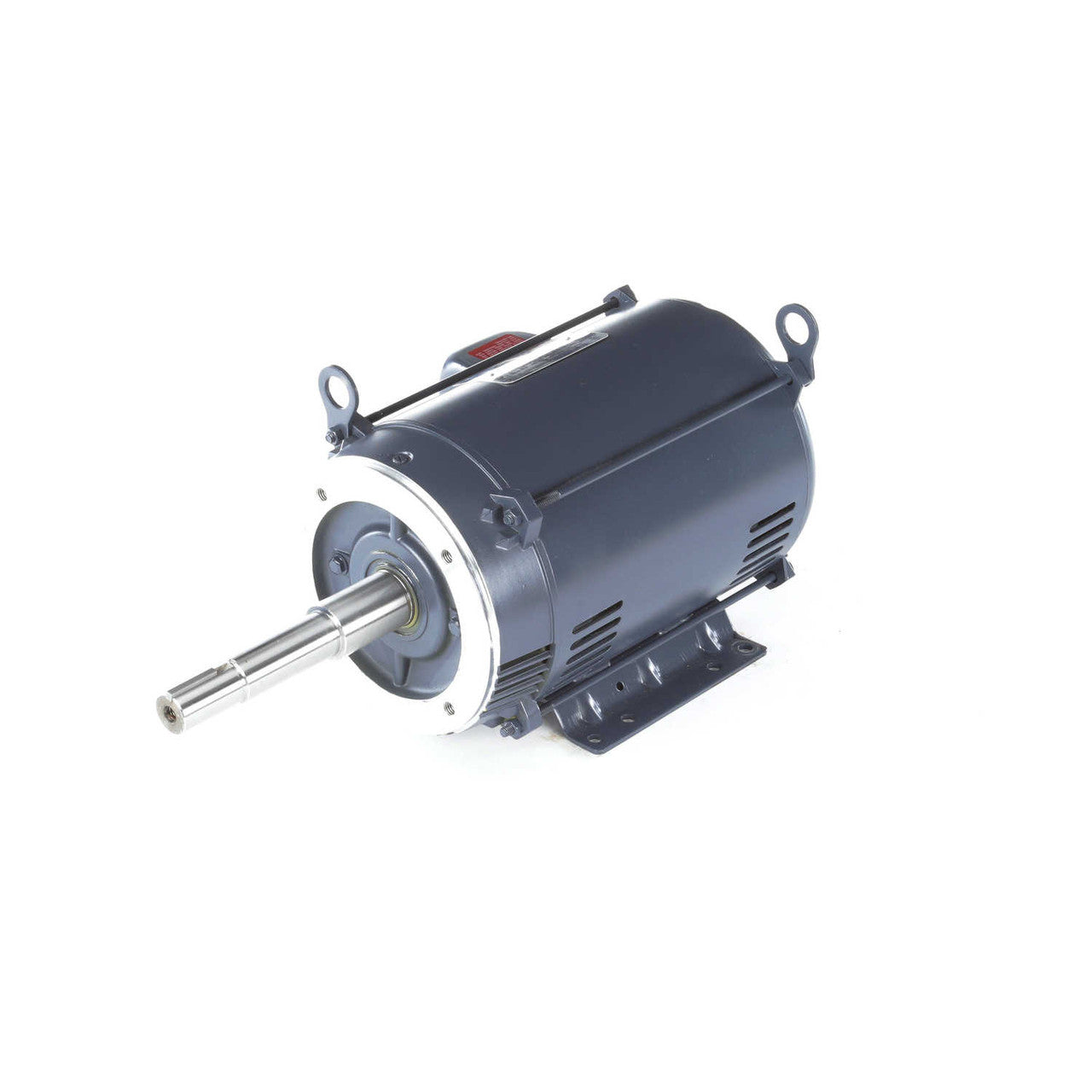

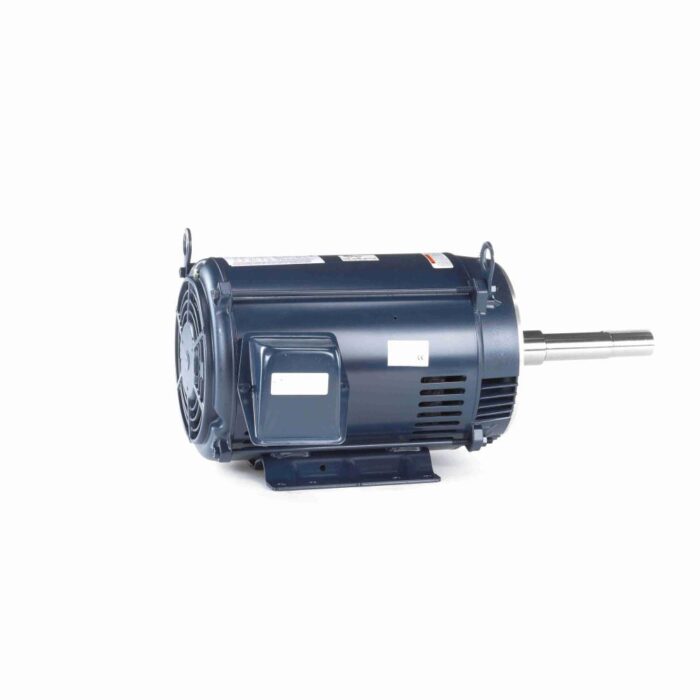

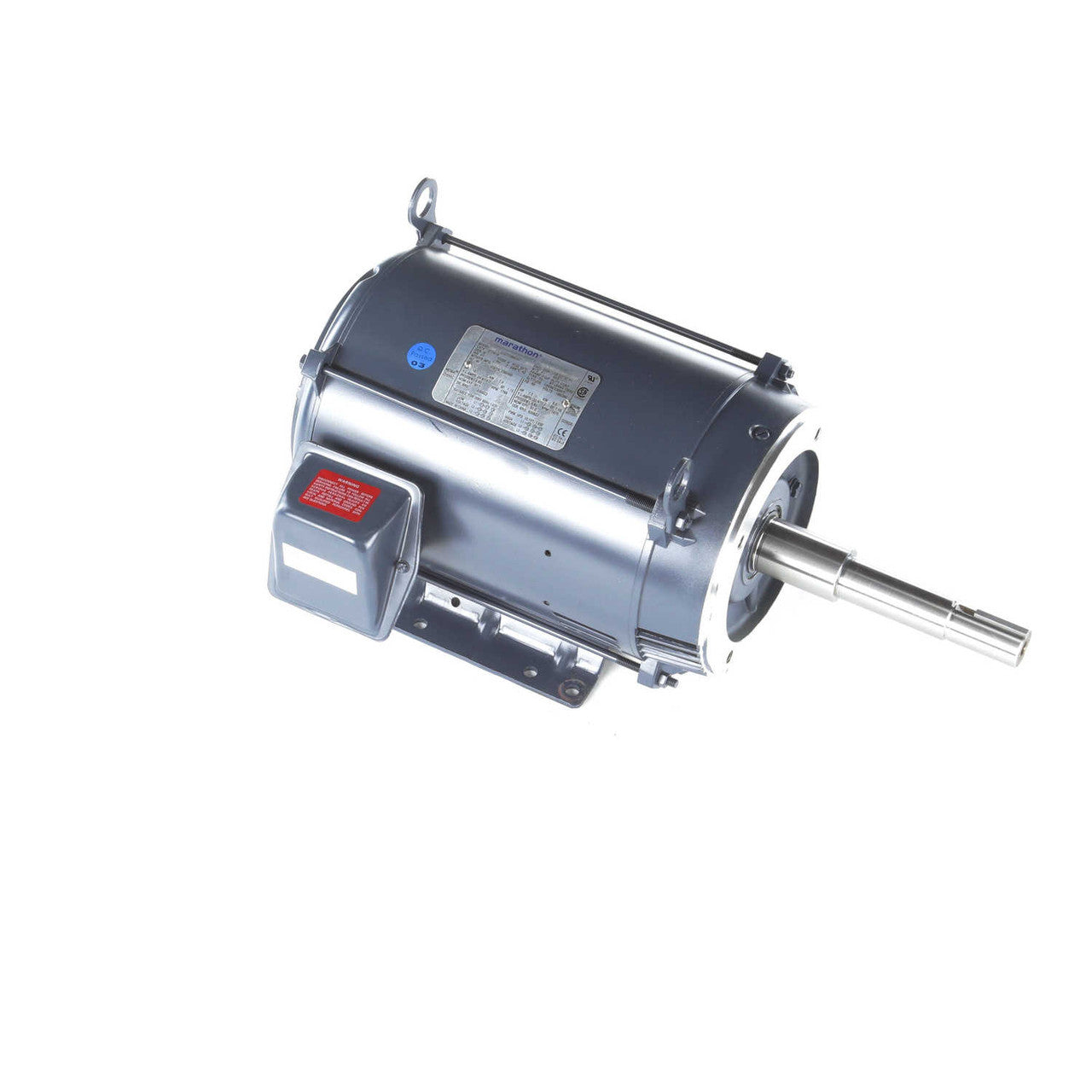

Marathon Motors MGT2419 Close Coupled Pump Motor

Product Description

The Marathon Motors MGT2419 is a three-phase close-coupled pump motor. Designed for continuous duty, it is compatible with Variable Frequency Drives (VFD) that provide a ten to one variable torque and two to one constant torque. The motor operates at dual frequencies of sixty and fifty Hertz, with voltage ratings of 190 and 380 volts at a lower horsepower.

• Compatible with close-coupled pump systems.
• Works efficiently with VFDs for variable and constant torque.
• Constructed with a rigid base and open drip-proof enclosure.

Product Highlights

This motor features ball bearings that are securely locked on the shaft end and comes with Class F insulation. It has a standard F1 assembly and is also reversible to F2.

Product Information

Standard Information

• Manufacturer Part Number: MGT2419
• Horsepower: 10 HP

Technical Specifications

• RPM: 1800
• Input Voltage: 208-230/460 V
• Frame Size: 215JP
• Full Load Amps: 25.6/12.8
• Enclosure: Drip Proof
• Base: Rigid
• Operating Temperature: 40 °C
• Phase Voltage: 208-230/460
• Rotation: Reversible
• Speed: Single speed
• Efficiency: Meets or exceeds USA mandated efficiencies
• VFD Compatibility: Suitable for use with a VFD (10:1 variable torque, 2:1 constant torque)
• Service Factor: 1.15 for sinewave, 1.0 for IGBT power
• Bearings: Ball bearings
• Shaft End: Mechanically locked
• Insulation Class: Class F
• Frequency Rating: Dual rated for 60/50 hertz
• Voltage Rating: 190/380 volts at lower horsepower
• Assembly: Standard F1 assembly and reversible F2 assembly
• Certifications: UL recognized, CSA certified, CE mark
