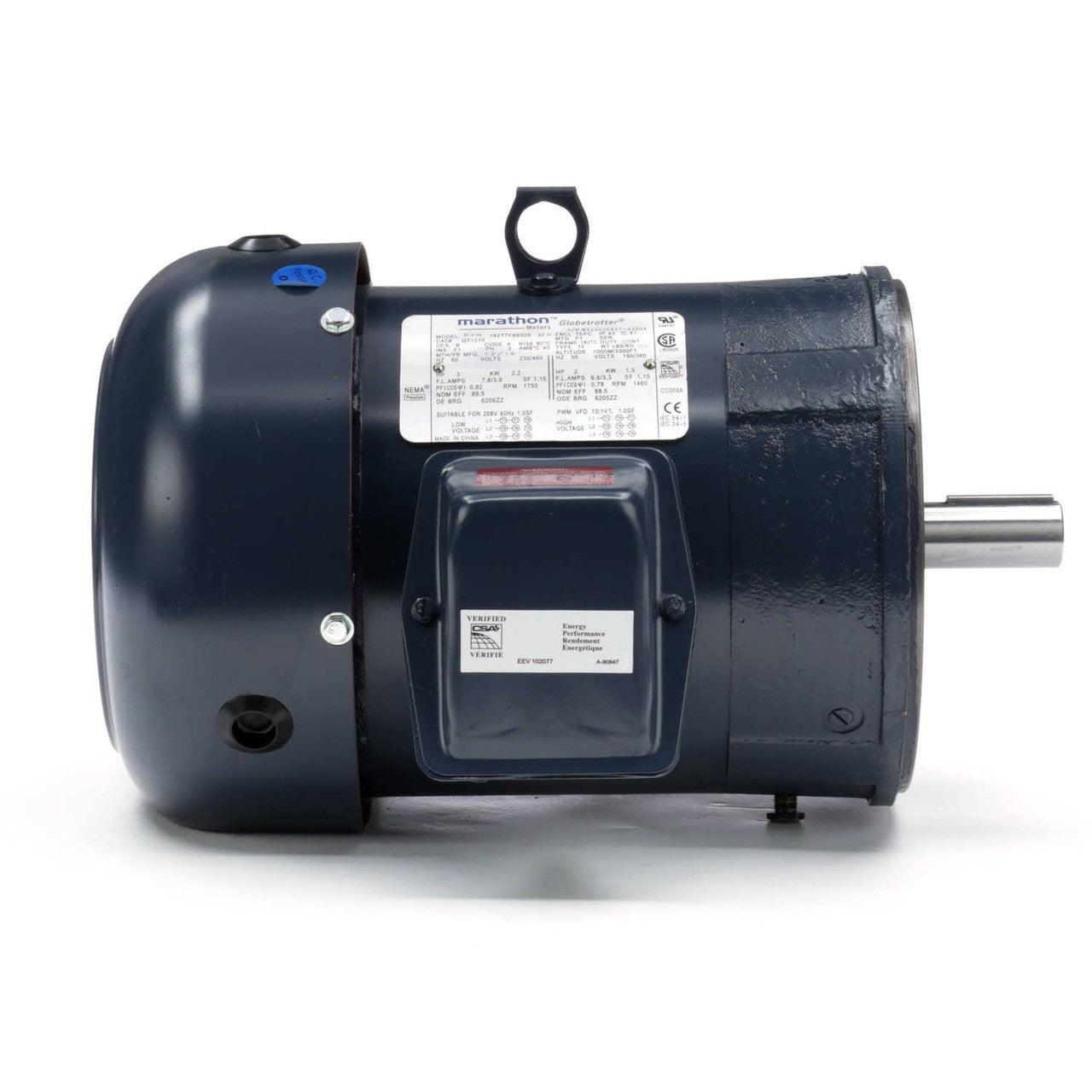

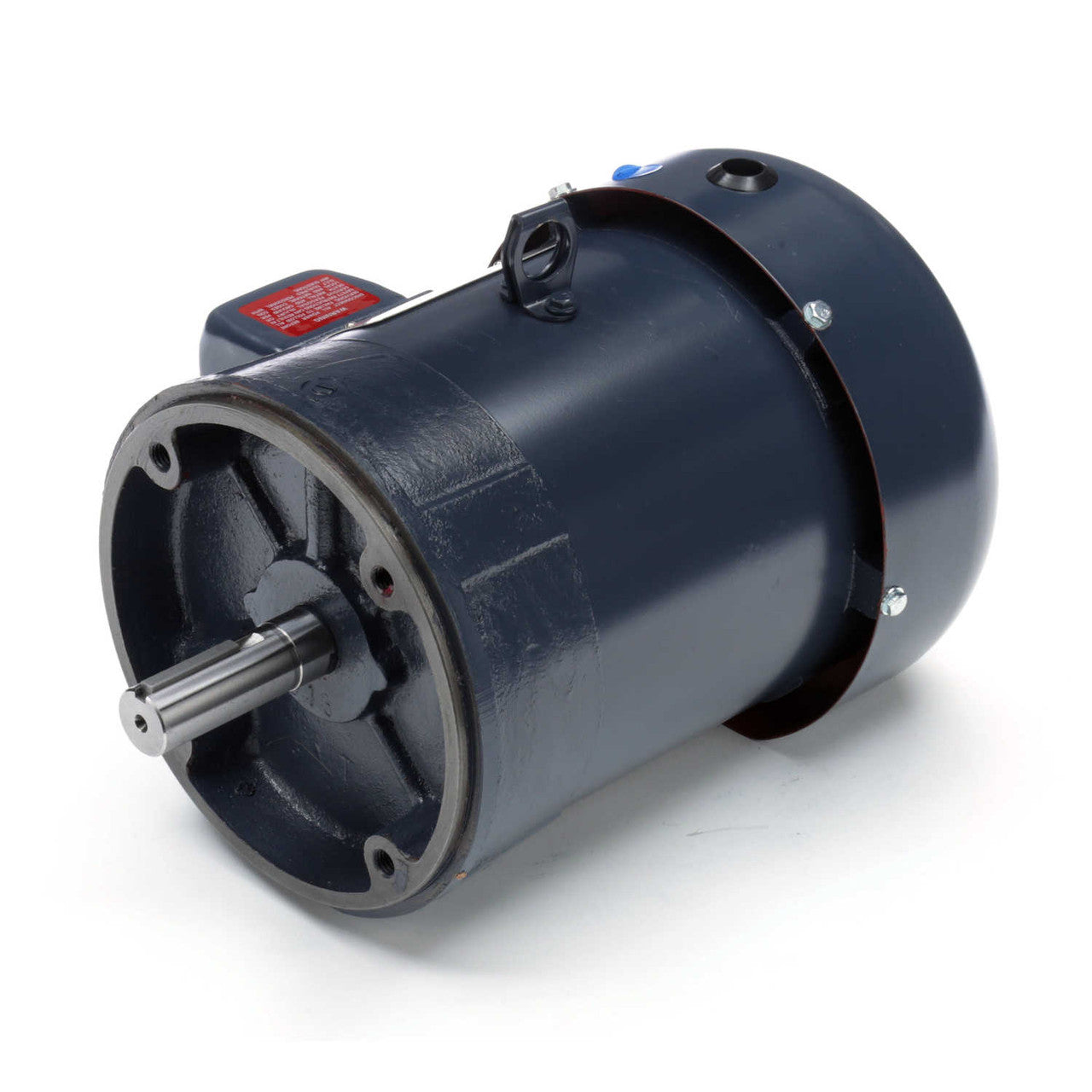

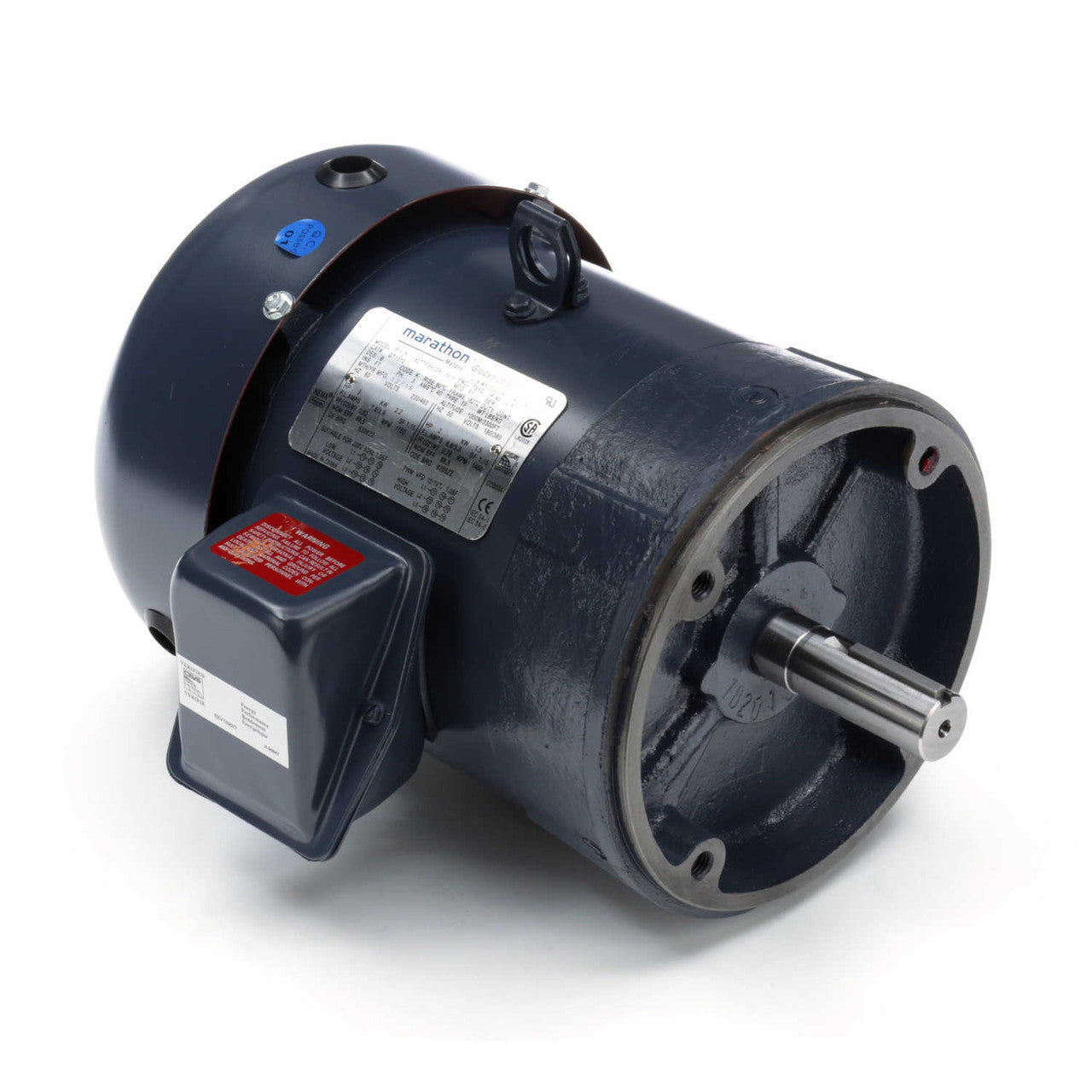

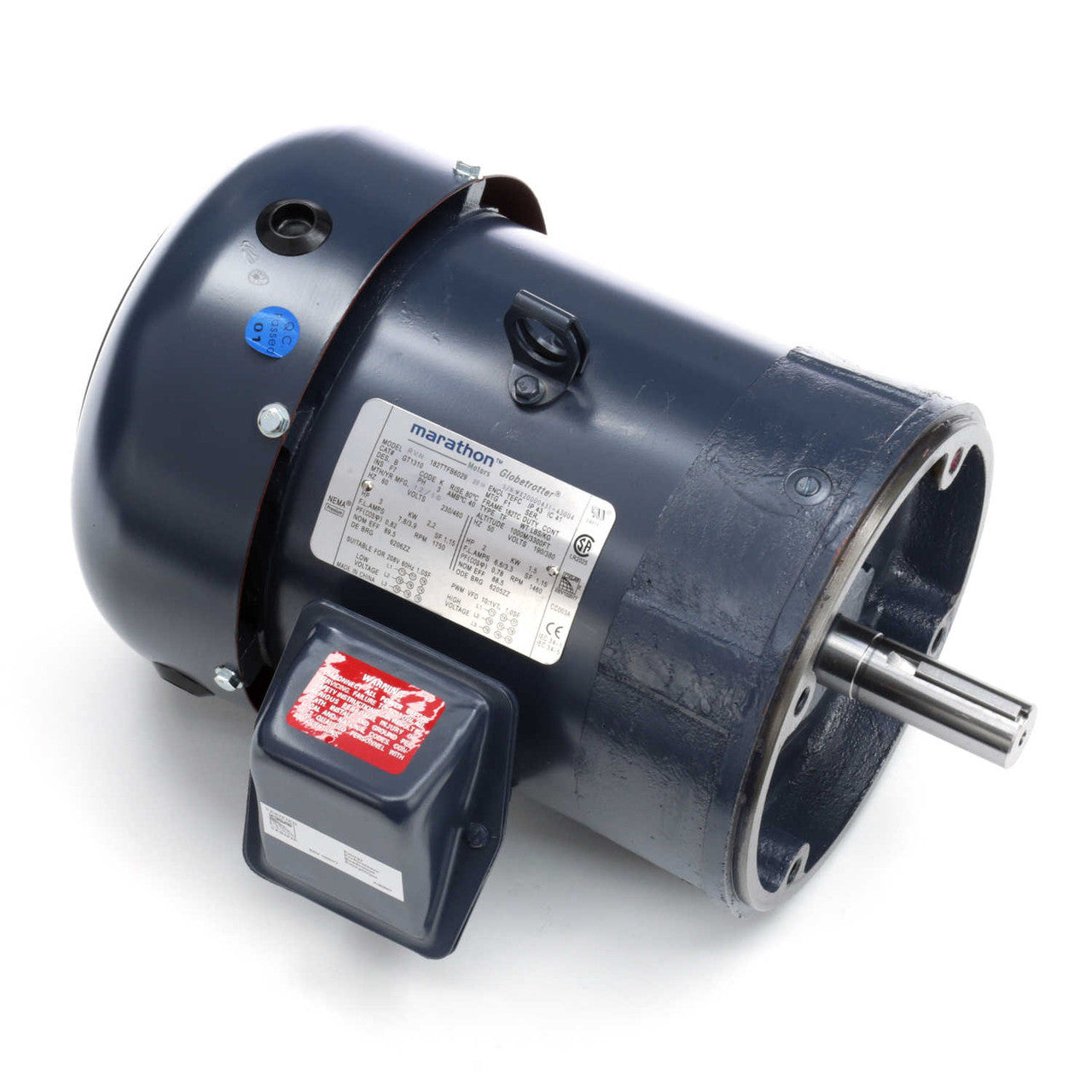

MARATHON MOTORS MGT1310 General Purpose Motor

Product Description

The MARATHON MOTORS MGT1310 is a three-phase general-purpose motor suitable for continuous operation. This motor has a squirrel cage inverter rating, making it a fit for inverter applications with variable torque and constant torque capabilities. The durable rolled steel construction ensures longevity while the IP55-rated enclosure protects it from dust and moisture.

• Three-phase design for reliable performance
• TEFC enclosure for protection and durability
• Reversible rotation for versatile applications

Product Highlights

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1310

Technical Specifications

• Horsepower: 3 HP
• RPM: 1800 RPM
• Frame: 182TC FRAME
• Phase: 3 PHASE
• Voltage: 208-230/460 VOLT
• Current: 8.3/4.15 AMP
• Service Factor: 1.15 S.F.
• Speed: SINGLE SPEED
• Enclosure: TEFC
• Rotation: REVERSIBLE
• Base: NO BASE
• Face: C-FACE
• Shaft: 1.125 X 2.75 KEYED SHAFT
• C-Dimension: 15.85 C-DIMENSION
• Electrical Type: Three Phase
• Product Type: General Purpose Motor
• Overload: No
• Speeds: 1
• Material: Rolled Steel
• Weight: 87 lbs
