MARATHON MOTORS MGT1240 General Purpose Motor

Product Description

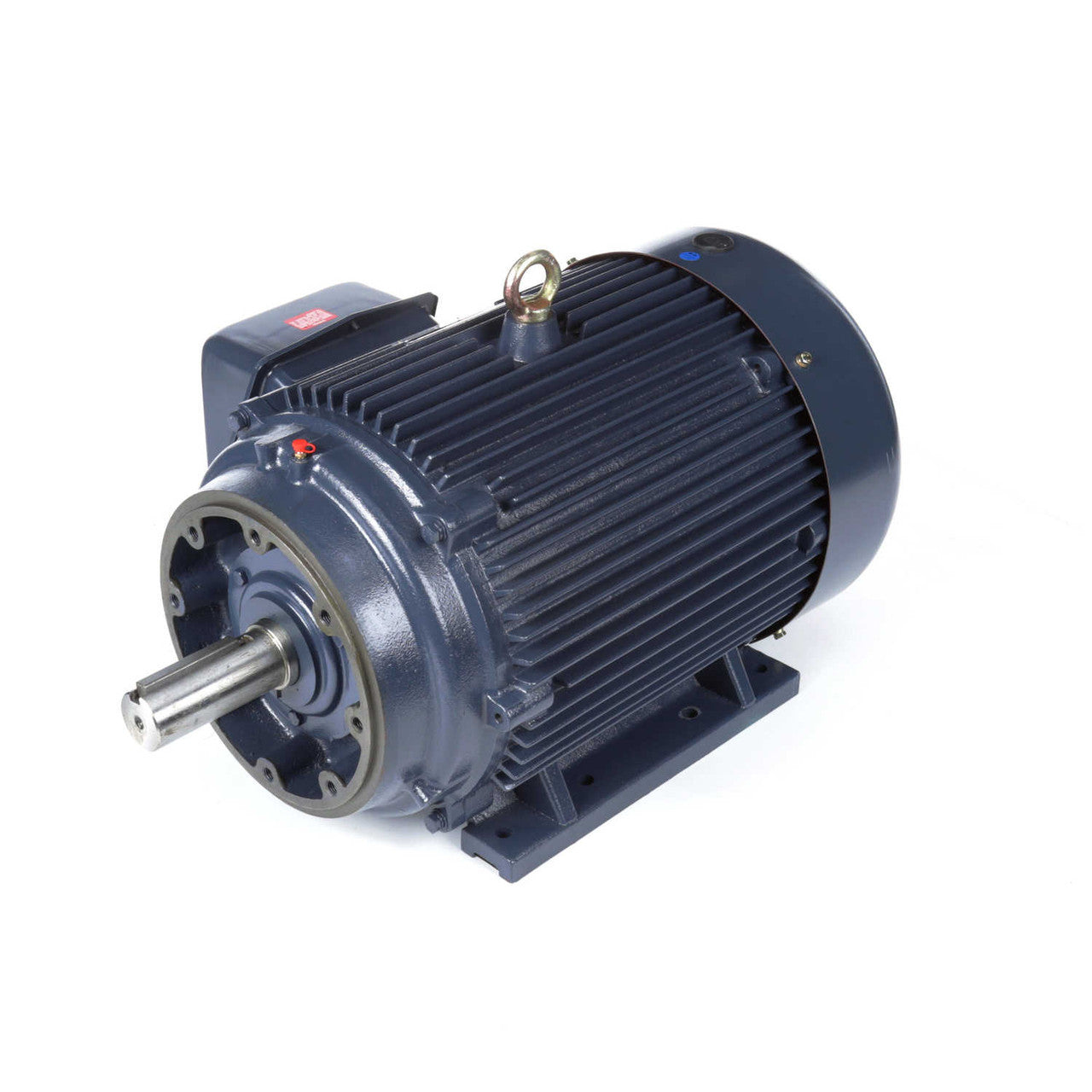

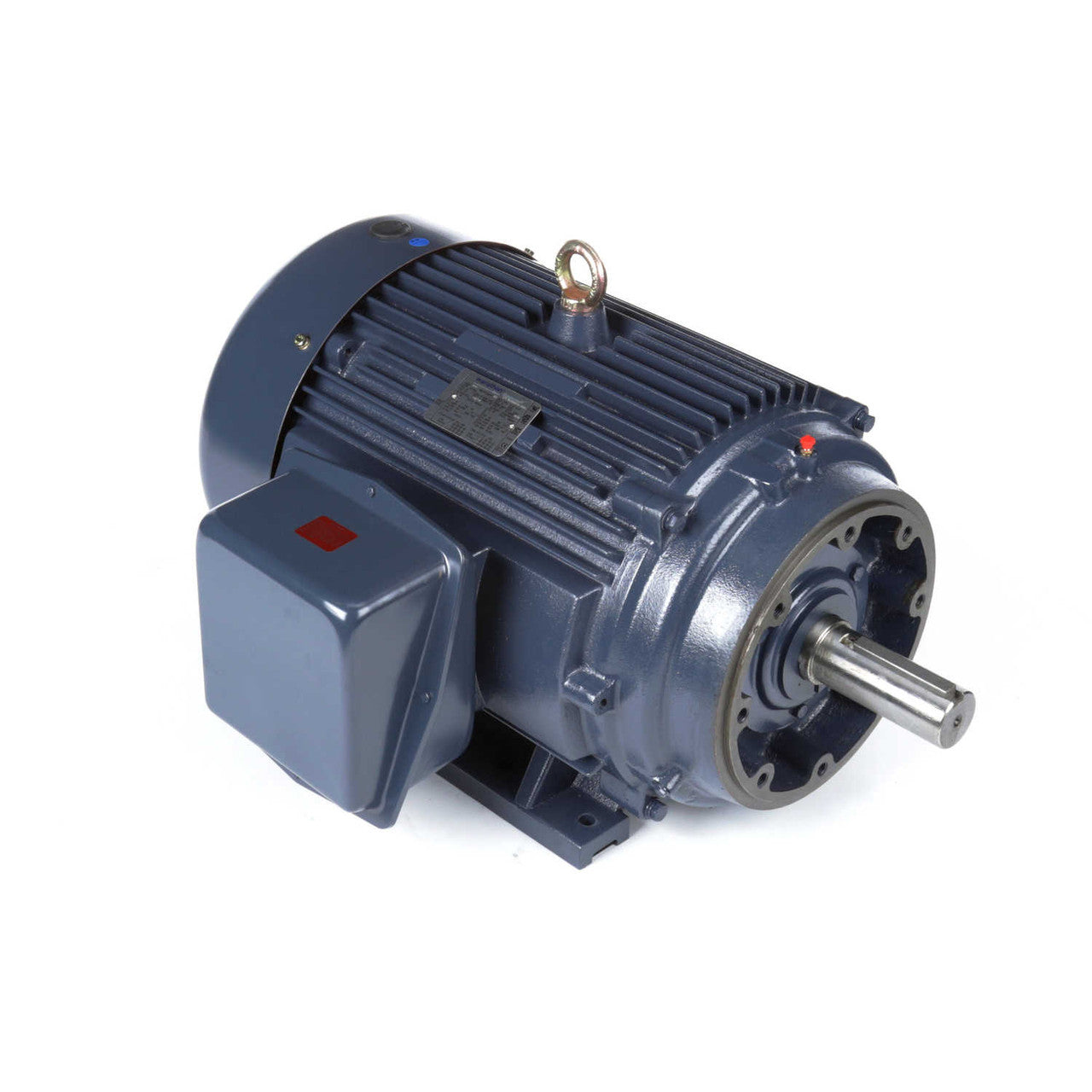

The MARATHON MOTORS MGT1240 is a three-phase general-purpose motor suitable for various industrial applications. It features a totally enclosed fan-cooled (TEFC) design that protects the internal components from dust and moisture. Made with a durable cast iron frame, this motor offers both reliability and strength. It is designed for rigid base mounting and provides threaded bolt holes for face mounting.

• Reversible rotation for flexible installation options.
• Keyed shaft diameter is 2 3/8 inches by 5 7/8 inches.
• Includes a wiring diagram on the motor plate for easy installation.

Product Highlights

This motor is ideal for applications requiring a phase electric motor and is suitable for varied operational environments.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1240

Technical Specifications

• Horsepower: 60 HP
• RPM: 1800
• Voltage: 230/460 V
• Frame: 364TC
• Full Load Amps: 138/69.0
• Enclosure: Totally Enclosed Fan Cooled
• Bearings: Ball Bearings
• Ambient Temperature: 40 °C
