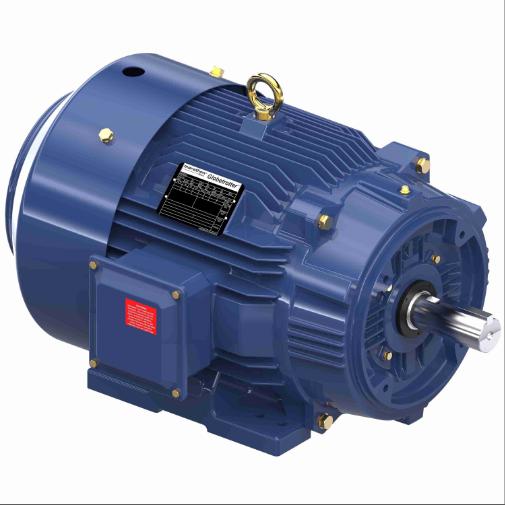

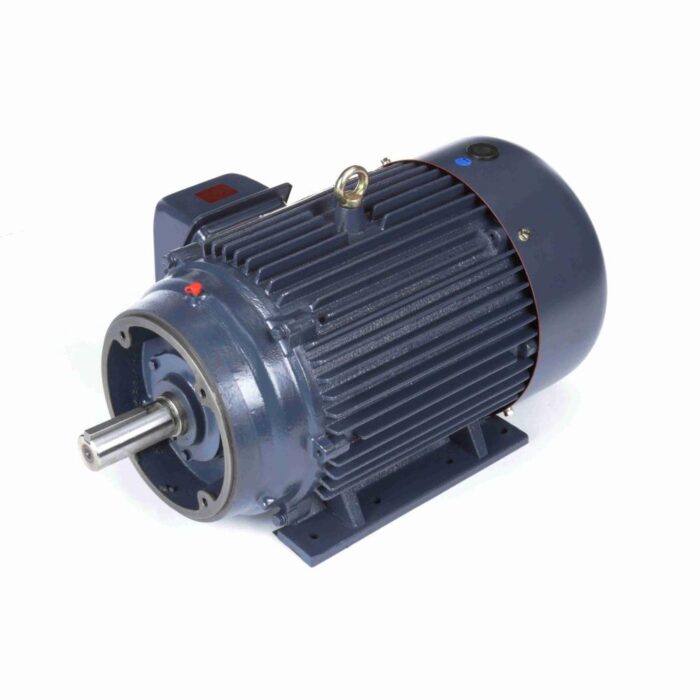

MARATHON MOTORS MGT1228 General Purpose Motor

Product Description

The MARATHON MOTORS MGT1228 is a general-purpose electric motor designed for various applications. This motor is built with a totally enclosed fan-cooled (TEFC) design, ensuring durability and reliability. It features a C-face mounting arrangement on a rigid base, and it operates using ball bearings for smooth performance.

• Totally enclosed fan-cooled (TEFC) design
• C-face footed with a rigid base
• Inverter duty with 10:1 variable torque capabilities

Product Highlights

This motor is suitable for many industrial applications where a reliable phase electric motor is necessary. It is particularly good for setups that require variable torque for enhanced control.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1228

Technical Specifications

• Horsepower: 25 hp
• RPM: 1772
• Voltage: 230/460 volts
• Frame: 284TC
• Load Amps: 61.0/30.5
• C Dimension: 30.16
• Keyed Shaft Diameter: 1 7/8
• Keyed Shaft Length: 4 5/8
• Service Factor: 1.15
• Insulation Class: Class F
• Enclosure: TEFC
• Mounting Type: C-Face Footed, Rigid Base
• Bearing Type: Ball Bearing
