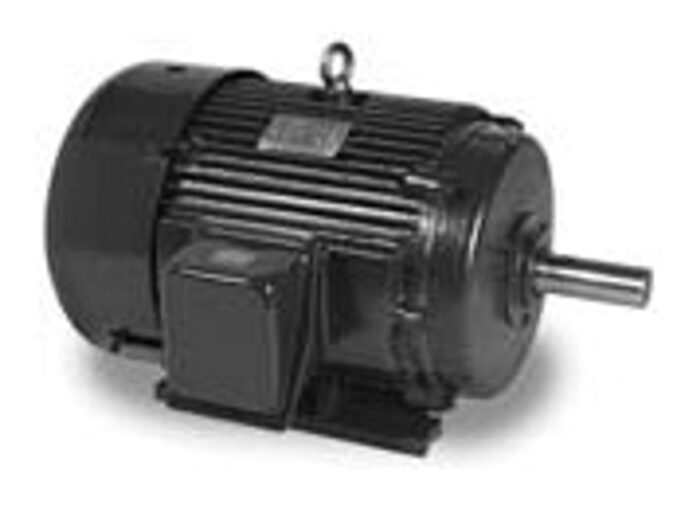

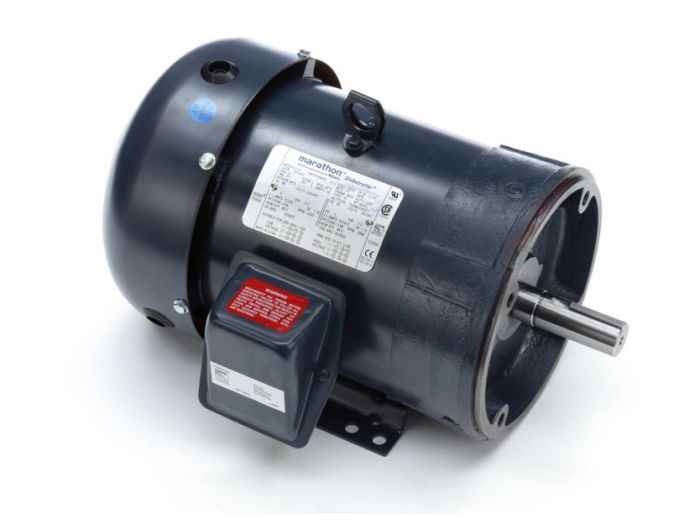

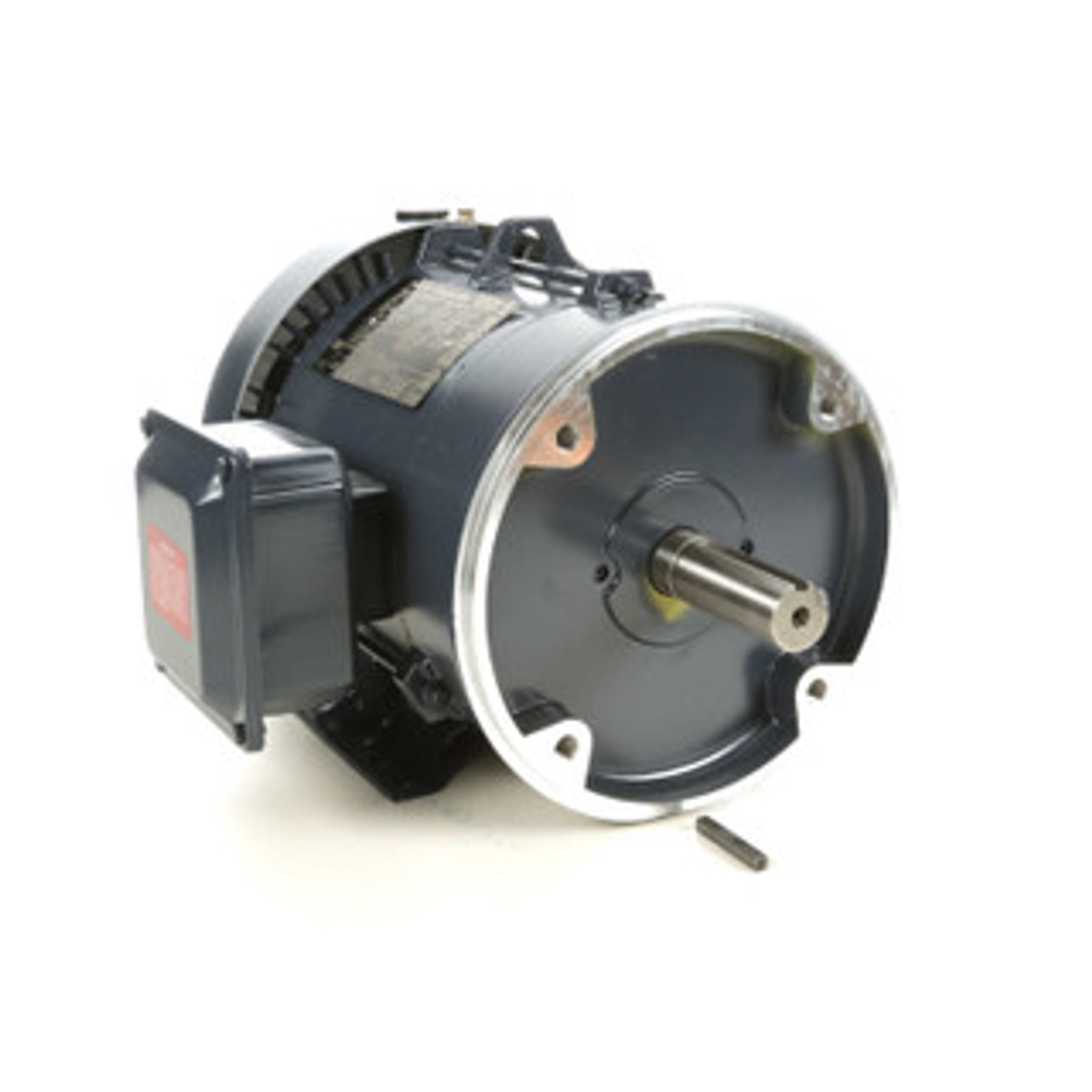

MARATHON MOTORS MGT1212 Three Phase General Purpose Motor

Product Description

The MARATHON MOTORS MGT1212 is a three-phase general-purpose motor designed for inverter duty applications. It supports 10:1 variable torque and 10:1 constant torque. This motor features Class F insulation and a totally enclosed design for various environments. It is equipped with a C-face footed for secure mounting and is configured in F1, but can be reversed to F2.

• Inverter Duty: 10:1 Variable Torque and 10:1 Constant Torque
• Totally Enclosed for Protection
• C-Face Footed for Easy Mounting

Product Highlights

The MGT1212 motor is suitable for various industrial applications where reliability and efficiency are essential. Its design maximizes performance in demanding conditions.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1212

Technical Specifications

• Power: 5 HP
• Speed: 3600 RPM
• Input Voltage: 230/460 Volts
• Frame Size: 184TC FRAME
• Full Load Amps: 13.4/6.7
• C Dimension: 16.73 inches
