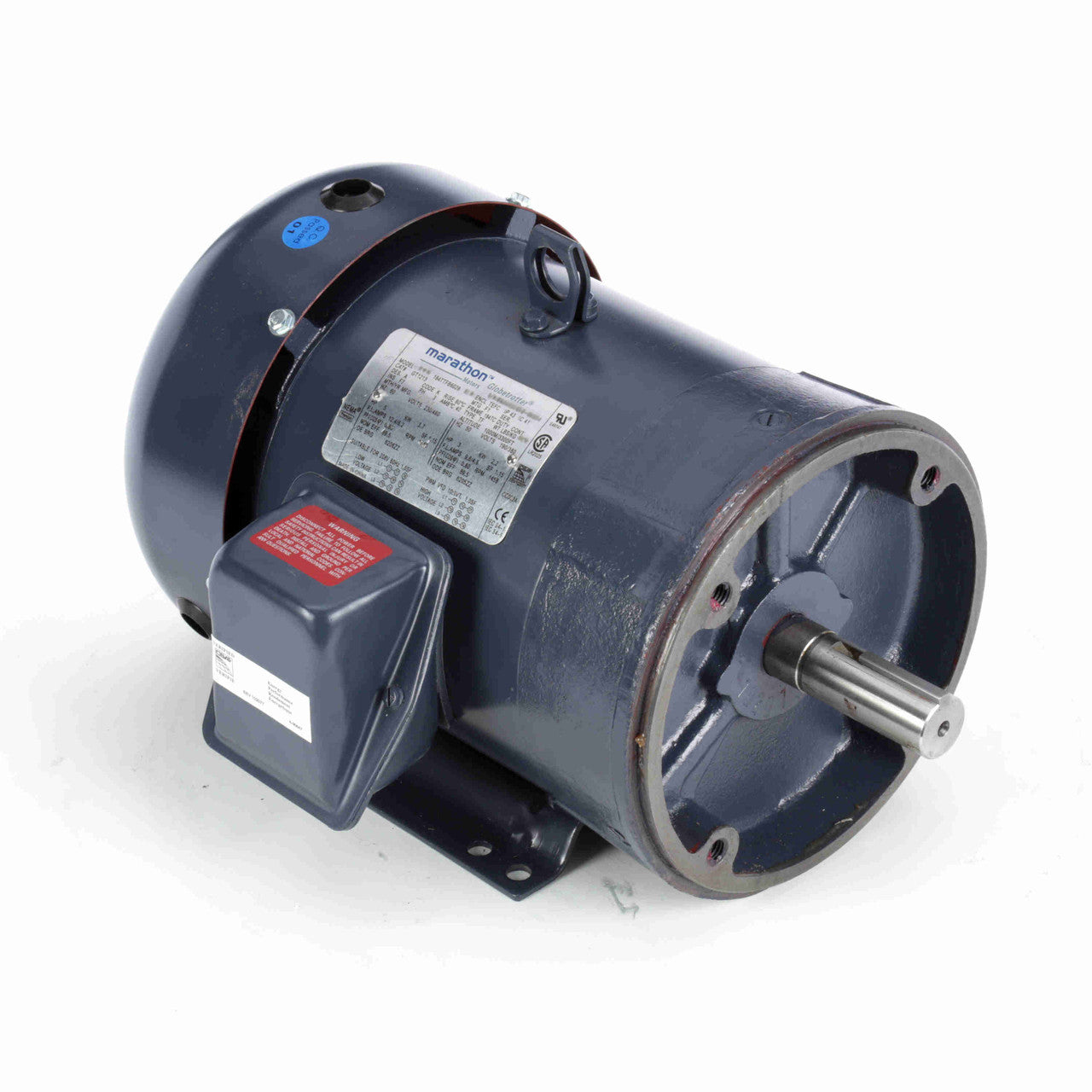

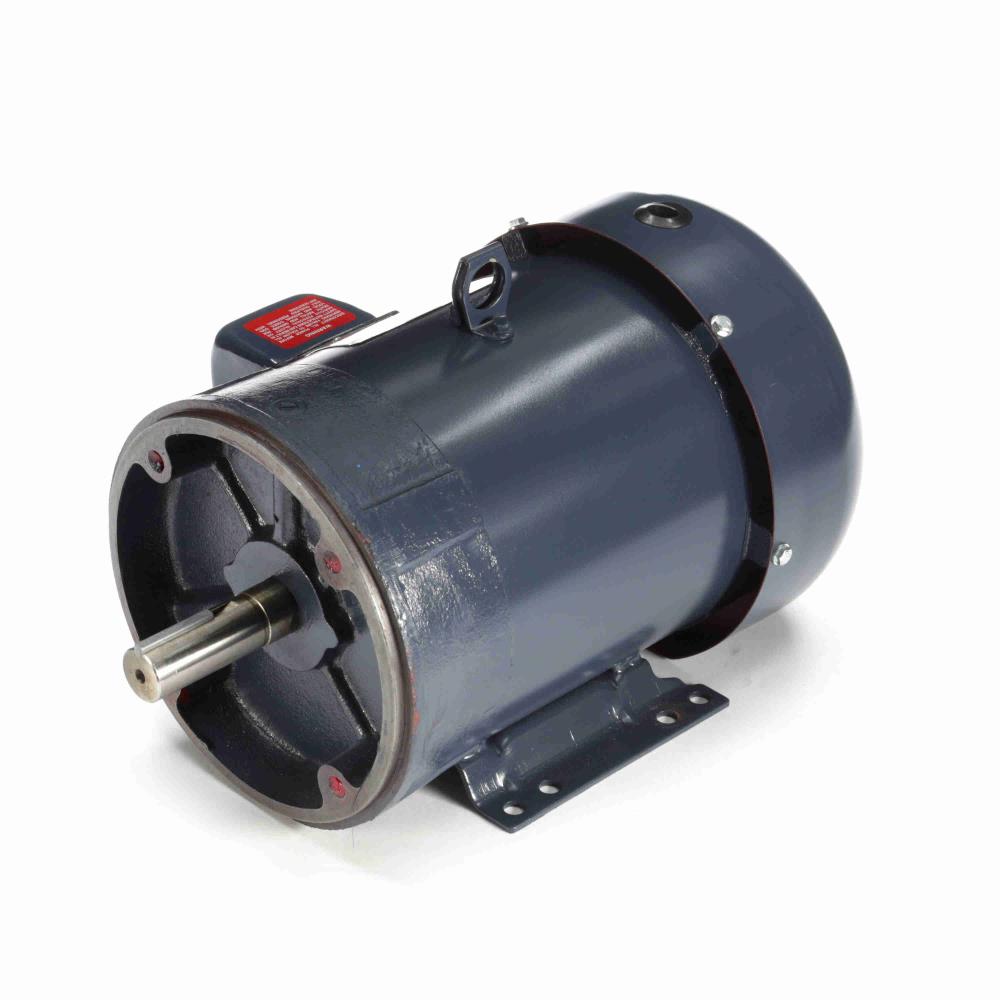

Marathon Motors MGT1208 General Purpose Motor

Product Description

The Marathon Motors MGT1208 is a general-purpose motor designed for various applications that require a phase electric motor. This unit features a totally enclosed fan-cooled (TEFC) design, ensuring reliable performance in different environments. The motor is equipped with Class F insulation and has a service factor of 1.15, which enhances its durability under varying load conditions. It accommodates standard assembly F1 and reversible assembly F2 configurations, allowing for flexible installation options.

• Inverter duty capability with variable torque up to 10:1 and constant torque of 10:1.
• Reversible rotation feature for increased usability.
• No overload protection included.

Product Highlights

This motor is ideal for industrial applications, providing robust performance and efficiency.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT1208

Technical Specifications

• Horsepower: 2 hp
• RPM: 1173
• Voltage: 230/460 volts
• Frame: 184TC
• Load Amps: 6.0/3.0
• C Dimension: 16.73 inches
• Shaft Diameter: 1 1/8 inches
• Service Factor: 1.15
• Insulation Class: Class F
• Overload Protection: None
