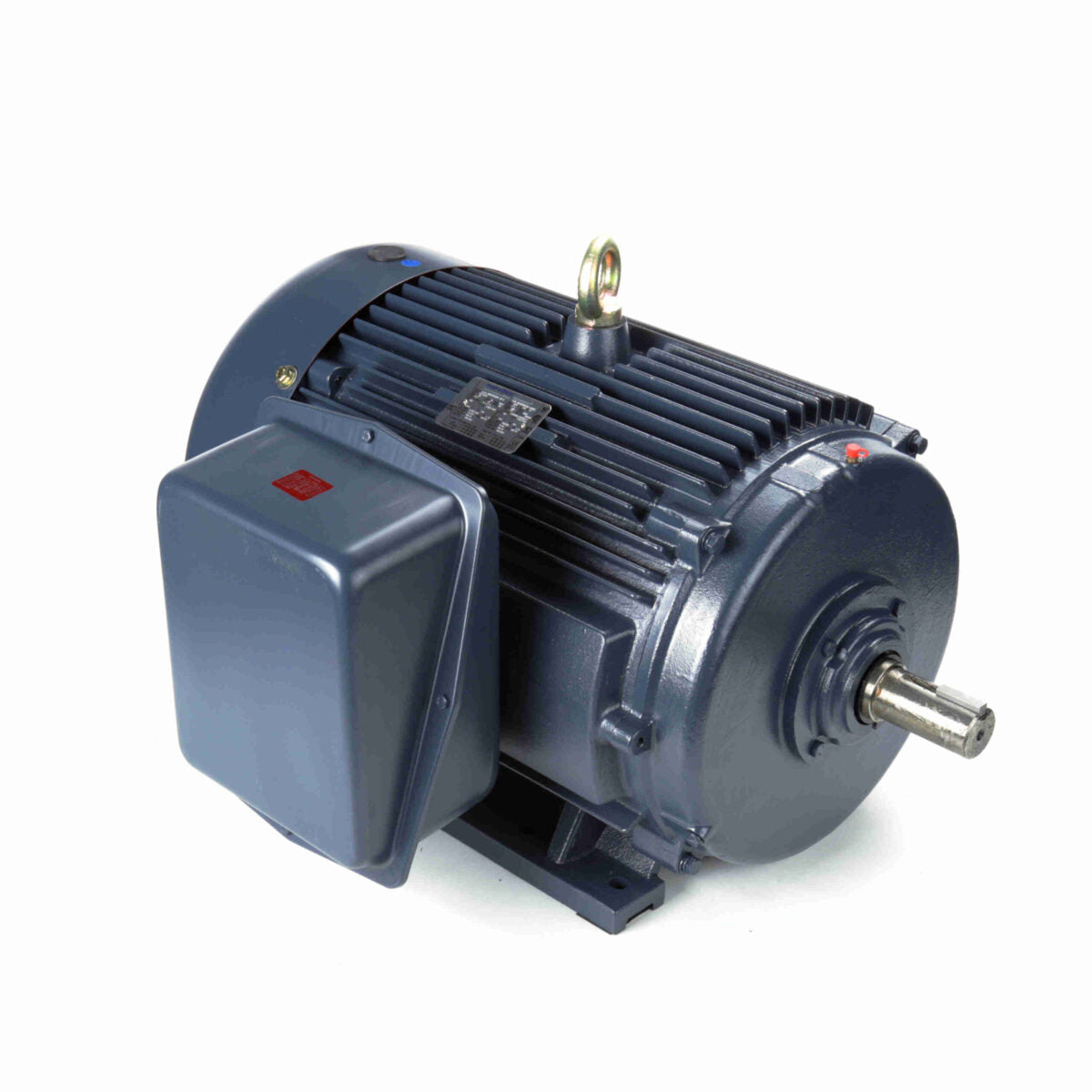

MARATHON MOTORS MGT1045 General Purpose Motor

Product Description

The MARATHON MOTORS MGT1045 is a three-phase electric motor suitable for various industrial applications. It has a cast iron frame for durability. This motor features a Totally Enclosed Fan Cooled (TEFC) design to protect against dust and moisture. It is designed to meet NEMA premium efficiency standards.

• Cast iron frame material
• Reversible rotation
• Includes ball bearings and a keyed shaft

Product Highlights

Designed for robust performance in demanding settings, this motor is perfect for tasks requiring high reliability and efficiency.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT1045

Technical Specifications

• Horsepower: 100 HP
• Voltage: 230/460 V
• RPM: 3575
• Frame Size: 405TS
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Material: Cast Iron
• Rotation: Reversible
• Number of Speeds: 1
• Service Factor: 1.15
• Temperature Code: T2B
• Insulation Class: Class F
• Ambient Temperature: 40 °C
• Load Amps: 216/108
• Keyed Shaft Diameter: 2 1/8 inches x 4 1/4 inches
• Weight: 1250 lbs
• Electrical Type: Phase
