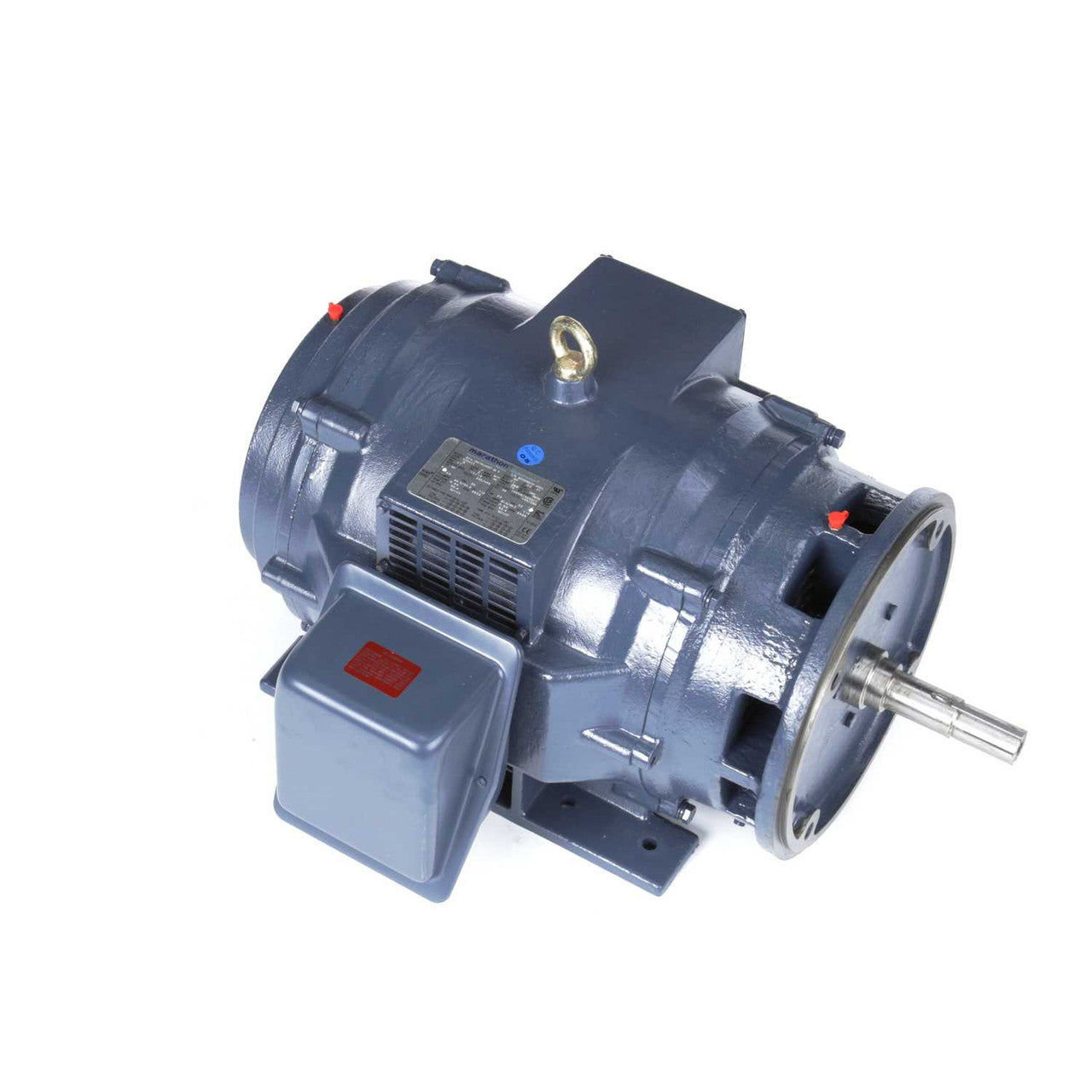

MARATHON MOTORS MGT0431 Close Coupled Pump Motor

Product Description

The MARATHON MOTORS MGT0431 is a three-phase close-coupled pump motor designed for high performance. It operates at 230/460 volts with a speed of approximately 1800 RPM. This motor features a 286JM frame and a sturdy base, suitable for various applications. It is compatible with variable frequency drives (VFDs) and built with Class F insulation for enhanced reliability. The motor's construction includes durable cast iron and is equipped with ball bearings and a mechanically locked shaft end.

• Horsepower: 30 HP
• Enclosure Type: Open Drip Proof (ODP)
• Rotation: Reversible

Product Highlights

The MARATHON MOTORS MGT0431 motor is ideal for pump applications where reliable performance is required.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MGT0431

Technical Specifications

• Horsepower: 30 HP
• Speed: 1775 RPM
• Input Voltage: 230/460 Volts
• Frame Size: 286JM
• Full Load Amps: 73.0/36.5
• Ambient Temperature: 40°C
• Enclosure Type: Drip Proof
• Material: Cast Iron
• Rotation: Reversible
• Service Factor: 1.15 for sinewave, 1.0 for IGBT power
• Frequency: 60/50 Hertz
• Voltage at Lower HP: 190/380 Volts
