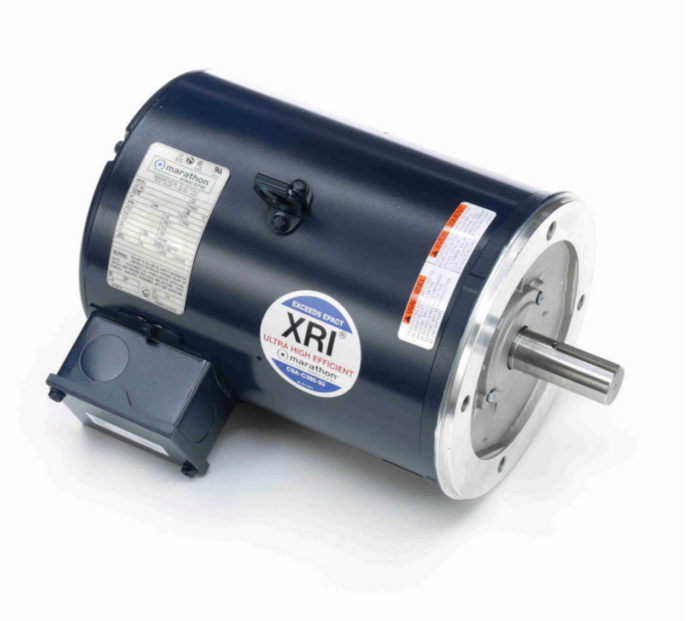

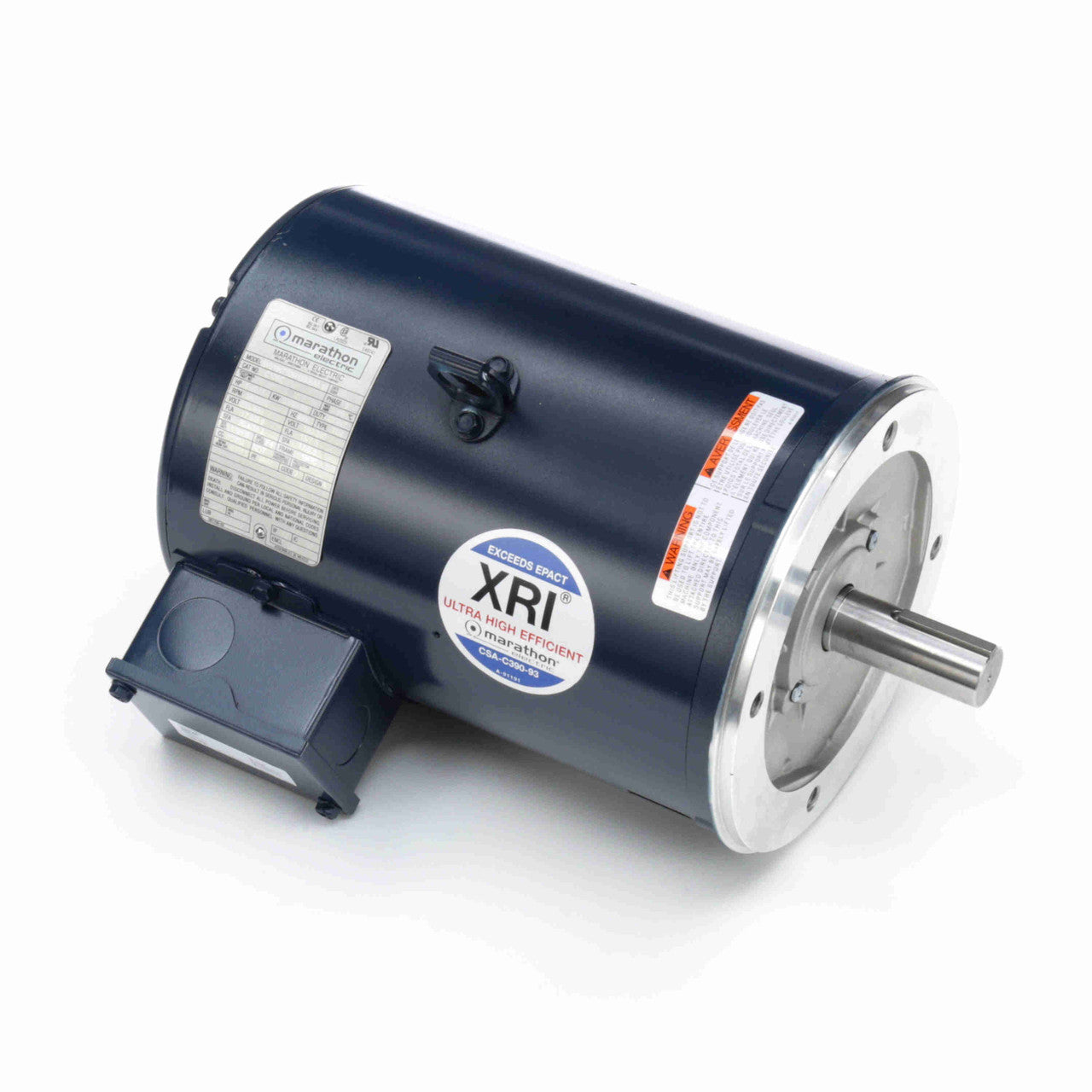

Marathon Motors MGT0315 General Purpose Motor 7.5 HP

Product Description

The Marathon Motors MGT0315 is a three-phase electric motor designed for general-purpose applications. This motor operates at 208-230/460 volts and draws current from 19.6 to 18.4 amps. It features a NEMA 184TC frame size, is capable of single speed operation, and is reversible for different applications. The keyed shaft design ensures a secure connection and the drip-proof enclosure helps protect it from the elements.

• Operates at 208-230/460 volts and 19.6-18.4/9.2 amps.
• Includes NEMA 184TC frame and a drip-proof enclosure.
• Rated at 7.5 horsepower with speeds of approximately 3600 RPM.

Product Highlights

This motor is ideal for various industrial and commercial uses, providing reliability and efficiency.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT0315

Technical Specifications

• Horsepower: 7.5 HP
• Speed: 3510 RPM
• Frame Size: 184TC
• Phase: 3-Phase
• Input Voltage: 208-230/460 Volts
• Output Current: 19.6-18.4/9.2 Amps
• Service Factor: 1.15
• Speed Type: Single
• Enclosure: Drip Proof
• Reversible: Yes
• Mounting Type: C-Face
• Shaft Type: Keyed
• Shaft Dimensions: 1.125 X 2.62 inches
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• C-Dimension: 13.00 inches
• Bearing Type: Ball Bearings
• Insulation Class: Class F
• Frequency: 60 Hz
• Overload Protection: None
