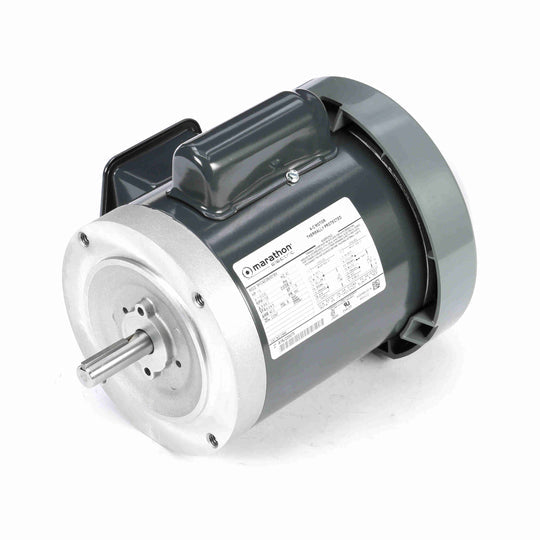

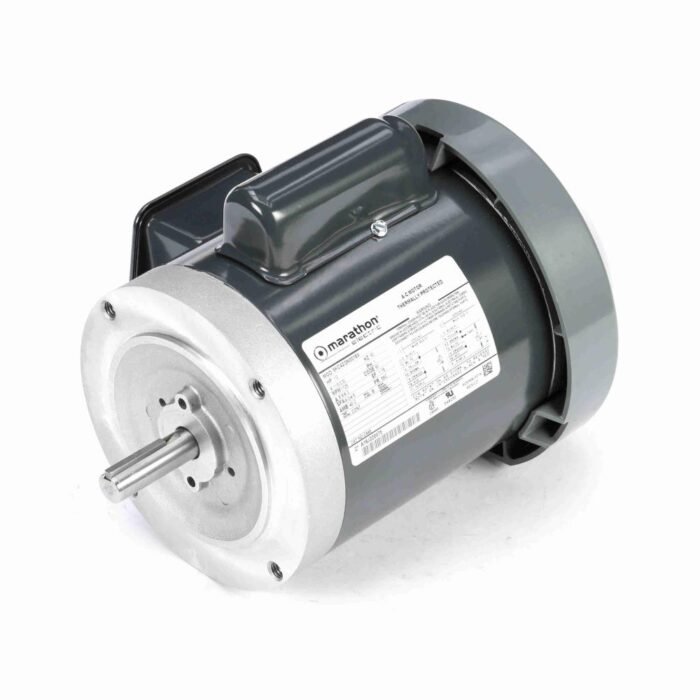

Marathon Motors MC446 General Purpose Motor 1/2 HP

Product Description

The Marathon Motors MC446 is a general-purpose motor designed for various applications. The motor operates at dual voltage of 115/230 volts and features a capacitor start and capacitor run design. The enclosure is totally enclosed and fan cooled, made from durable rolled steel. This unit is specifically designed for C-face mounting and includes a shaft keyway for easy installation.

• Capacitor start/capacitor run motor
• C-face mount and shaft keyway
• Automatic overload protection

Product Highlights

This motor is ideal for trade professionals seeking reliability and performance in various settings.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MC446

Technical Specifications

• Horsepower: 1/2 HP
• Rotation: Reversible
• RPM: 1725
• Frame Size: 56C
• NEMA Frame: 56C
• Shaft: Keyed, 5/8 inch diameter x 1 7/8 inch length
• Service Factor: 1.15
• Overload Protection: Automatic
• Insulation Class: Class B
• Bearings: Ball bearings
• Input Voltage: 115/230 Volts
• Input Current: 8.6-4.3 Amps
