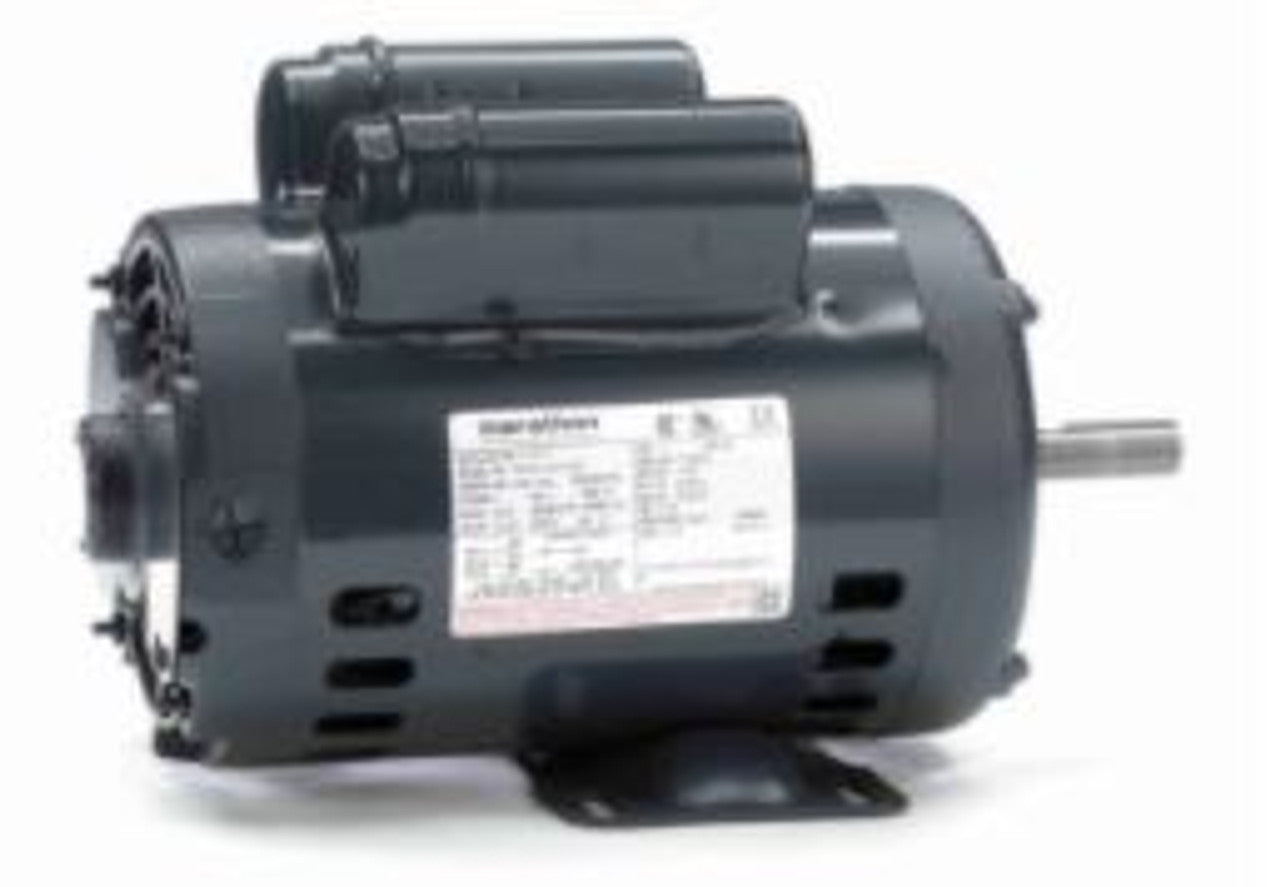

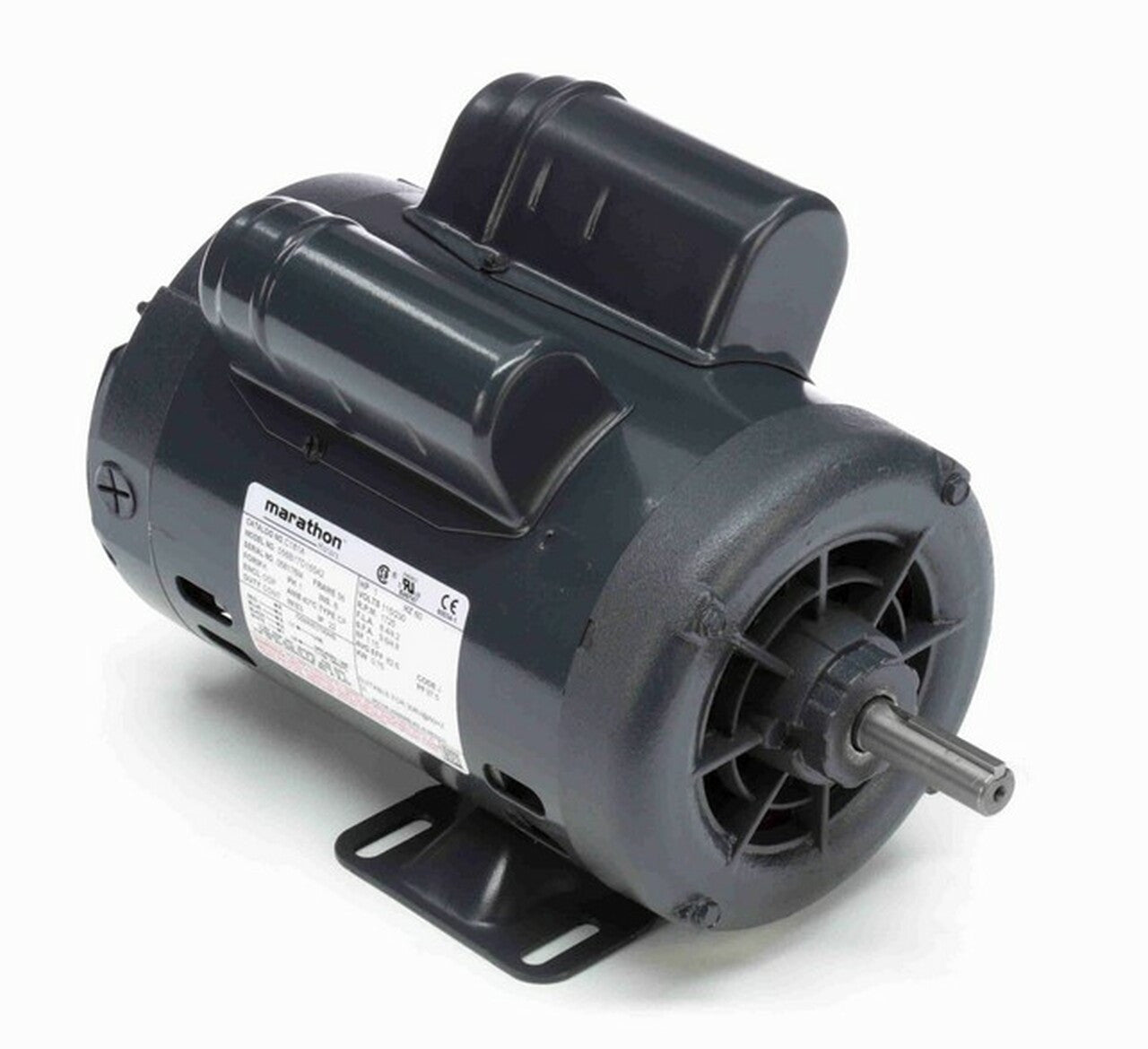

MARATHON MOTORS MC181B General Purpose Motor 1 HP 115/208-230V

Product Description

The MARATHON MOTORS MC181B is a general-purpose motor designed for a variety of applications. This single-phase electric motor provides one horsepower at a speed of 1725 RPM. It is ideal for continuous duty use and has a frame size of 56. With an operational voltage of 115/208-230 VAC, this motor offers versatility in its application. It features a rigid base for secure mounting, a capacitor start, and capacitor run design, and incorporates ball bearings for better performance.

• Single-phase motor with 1 horsepower capacity
• Operating speed of 1725 RPM
• Includes a rigid mounting base and designed for continuous operation

Product Highlights

This motor is well-suited for multiple tasks, providing reliable performance in mechanical applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MC181B

Technical Specifications

• Output Power: 1 HP (0.75 kW)
• Speed: 1725 RPM
• Input Voltage: 115/208-230 V
• Frequency: 60/50 Hz
• Phase: 1
• Service Factor: 1.25
• Enclosure Type: Open Drip Proof (DP)
• Frame Size: 56
• Duty: Continuous
• Rotation: Selective CCW
• Mounting Type: Rigid
• Shaft Diameter: 5/8 x 1 7/8 inches
• Shaft Type: Keyed
• Overall Length: 12.49 inches
• Output Current: 8.4/4.4-4.0 AMP
• Efficiency: 82.6%
• Power Factor: 96
• Insulation Class: B3
• Design Code: N
• KVA Code: K
