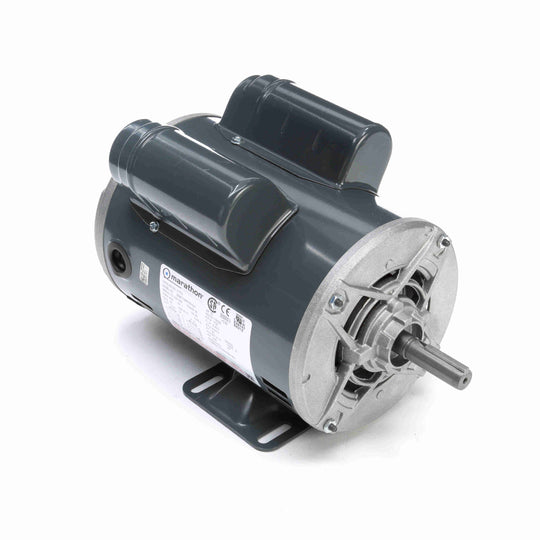

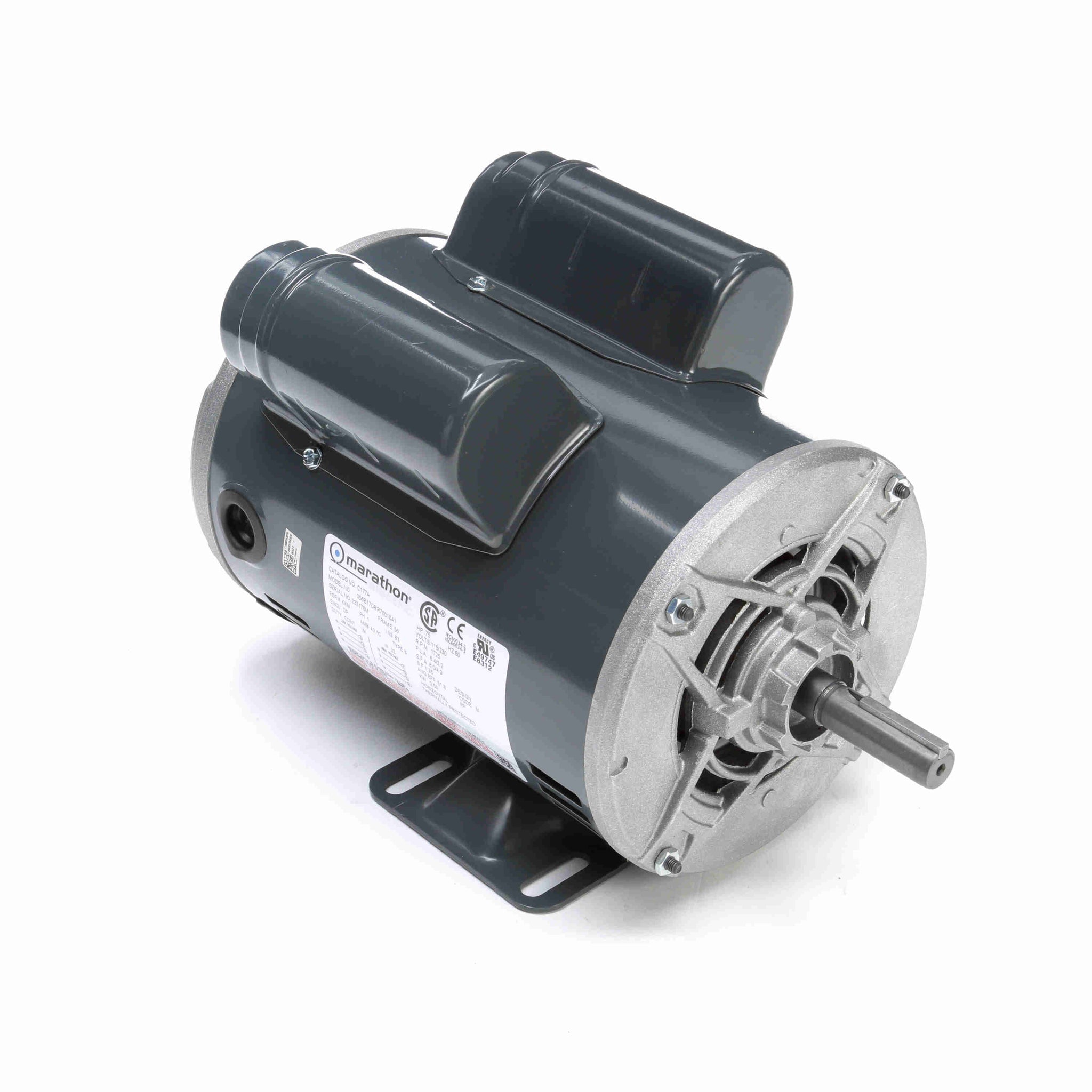

MARATHON MOTORS MC177A General Purpose Motor

Product Description

The MARATHON MOTORS MC177A is a general-purpose motor designed for high starting torque applications. Ideal for clean, dry environments, this single-phase motor features a capacitor start and capacitor run design. Its open drip-proof enclosure allows it to be used in various machines including pumps, compressors, and conveyors.

• Electrical Type: Capacitor Start Capacitor Run
• Open Drip Proof enclosure
• Suitable for high starting torque needs

Product Highlights

Constructed with a rolled steel frame, the MC177A includes manual thermal protection for enhanced safety and durability.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: MC177A

Technical Specifications

• Class: General Purpose Motor
• Phase: Single
• Frame: 56
• Horsepower: 3/4 HP
• Output KW: 0.56 KW
• Current: 6.6/3.5-3.3 A
• Voltage: 115/208-230 V
• Speed: 1725 RPM
• Service Factor: 1.25
• Efficiency: 81.8%
• Duty: Continuous
• Thermal Protection: Manual
• Ambient Temperature: 40°C
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Bearing Type: Ball Bearing
