MARATHON MOTORS H205 Fan and Blower Motor 1/12 HP

Product Description

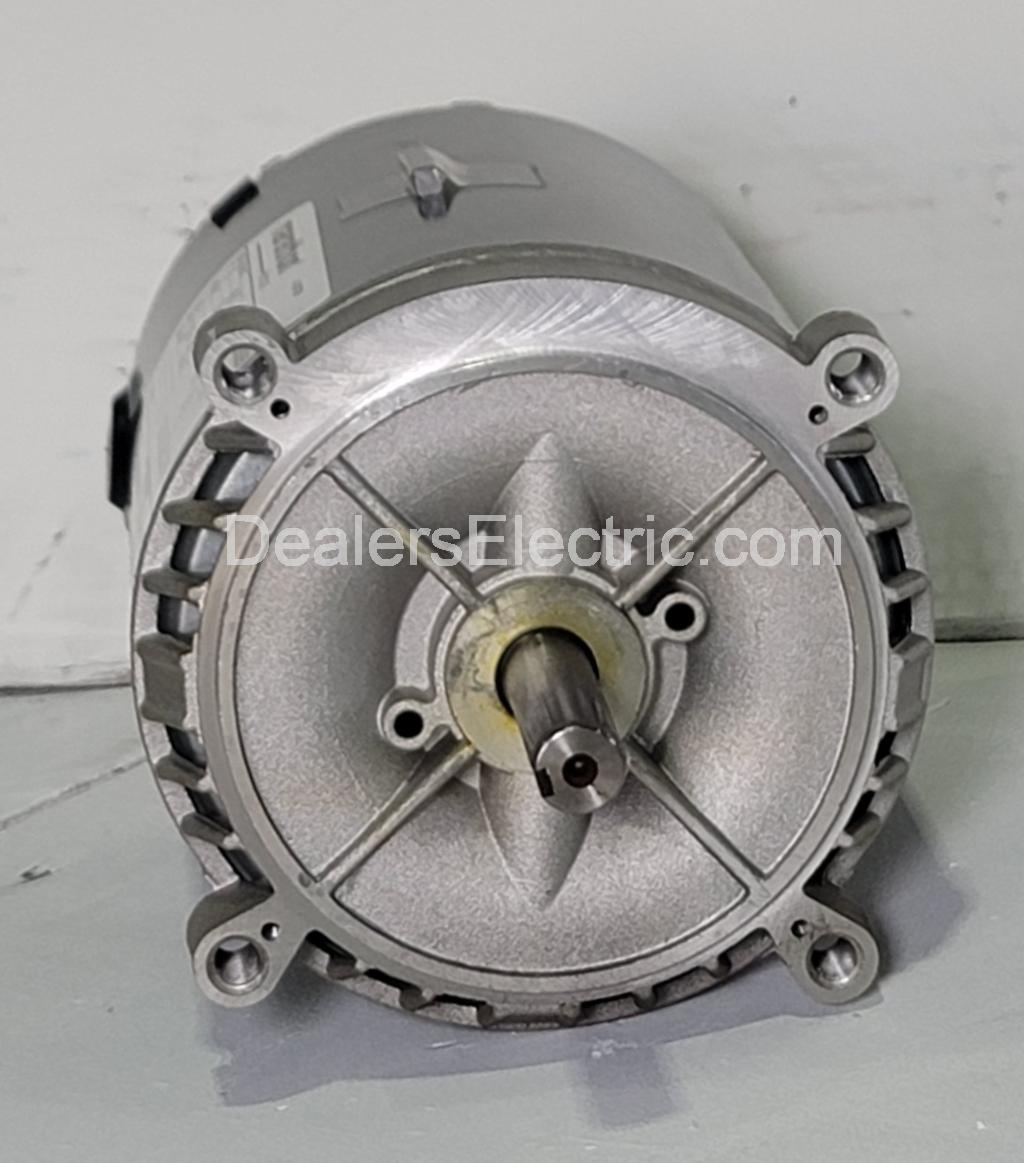

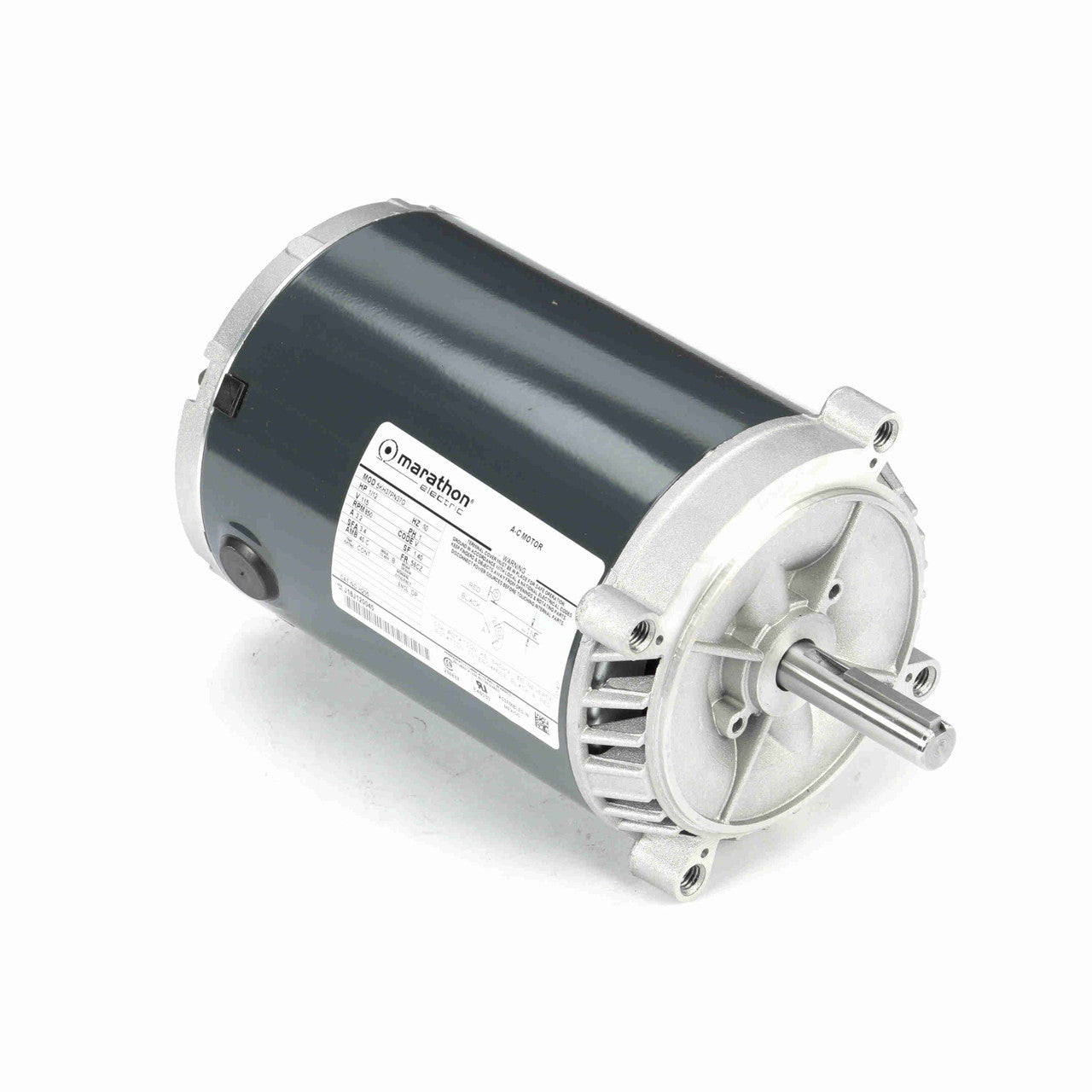

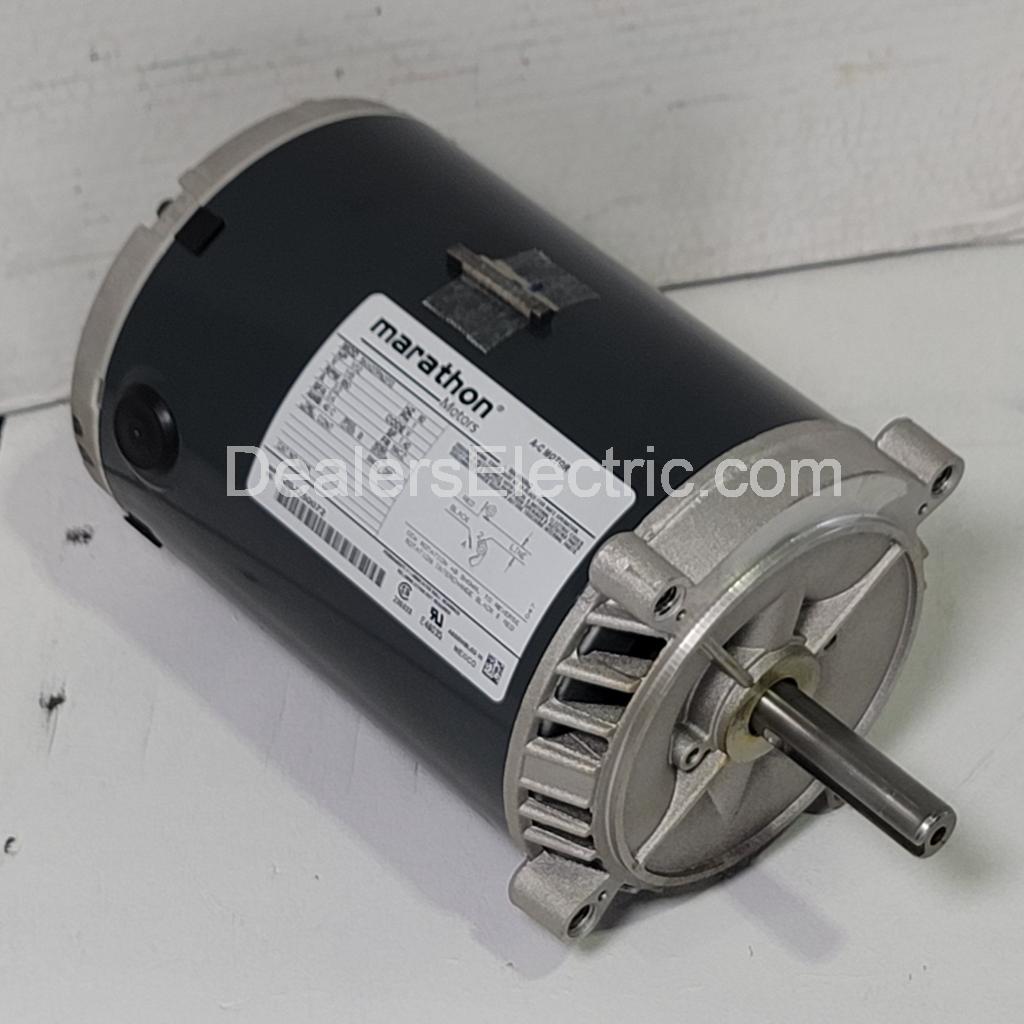

The Marathon Motors H205 is a single-phase, split-phase motor built for fan and blower applications. It runs on 115V at a frequency of 60Hz and delivers a power output of 1/12 HP. This motor features a 56CZ frame with an open drip proof enclosure, and offers reversible rotation.

• Single-phase and split-phase design
• Open drip proof enclosure
• Reversible motor rotation

Product Highlights

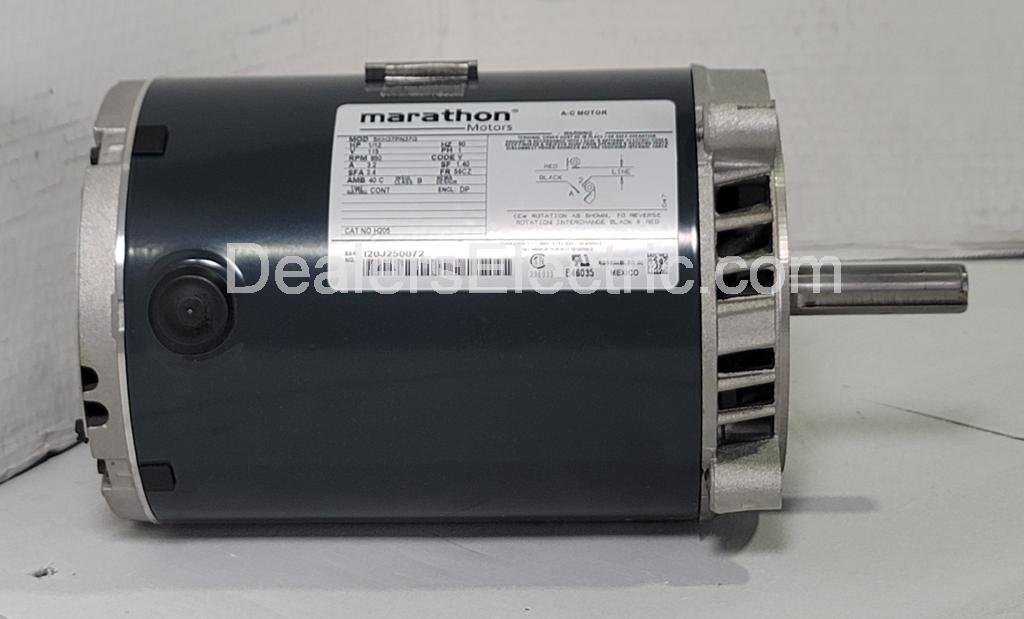

The H205 is designed for continuous duty operation. It is constructed with rolled steel, includes ball bearings, and features class B insulation. The wiring diagram can be found on the motor name plate, making installation straightforward.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: H205

Technical Specifications

• Horsepower: 1/12 hp
• RPM: 850
• Frame: 56CZ
• Voltage: 115V
• Current: 3.2 A
• Frequency: 60 Hz
• Phase: Single Phase
• Enclosure: Open Drip Proof (ODP)
• Service Factor: 1.4
• Rotation: Reversible
• Bearing Type: Ball
• Insulation Class: B
• Shaft Diameter: 5/8 inches
• Shaft Length: 2 1/4 inches
• Mounting Type: C-Face / Footless
• Electrical Type: Split Phase
• Duty: Continuous
• Max Ambient Temperature: 40 °C
• Number of Speeds: 1
• Frame Material: Rolled Steel
• Motor Orientation: Any
• Overload Protection: None
• Rated RPM: 850
• Full Load Amps: 3.2 FLA
• Overall Length: 11.08 inches
• Enclosure Type: Open/Drip Proof
• Mounting Location: RD (Round)
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• Diameter: 6.5 inches
• UL: Recognized
• CSA: Y
• KVA Code: V
