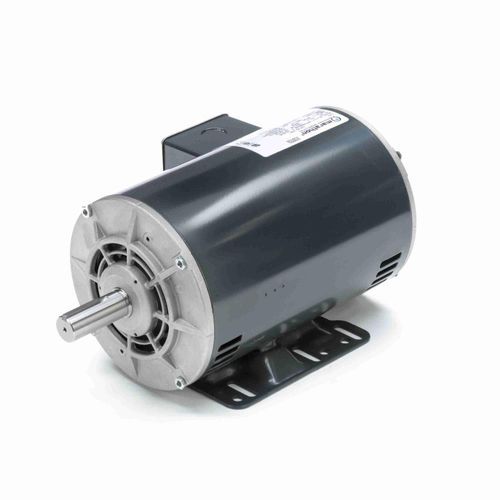

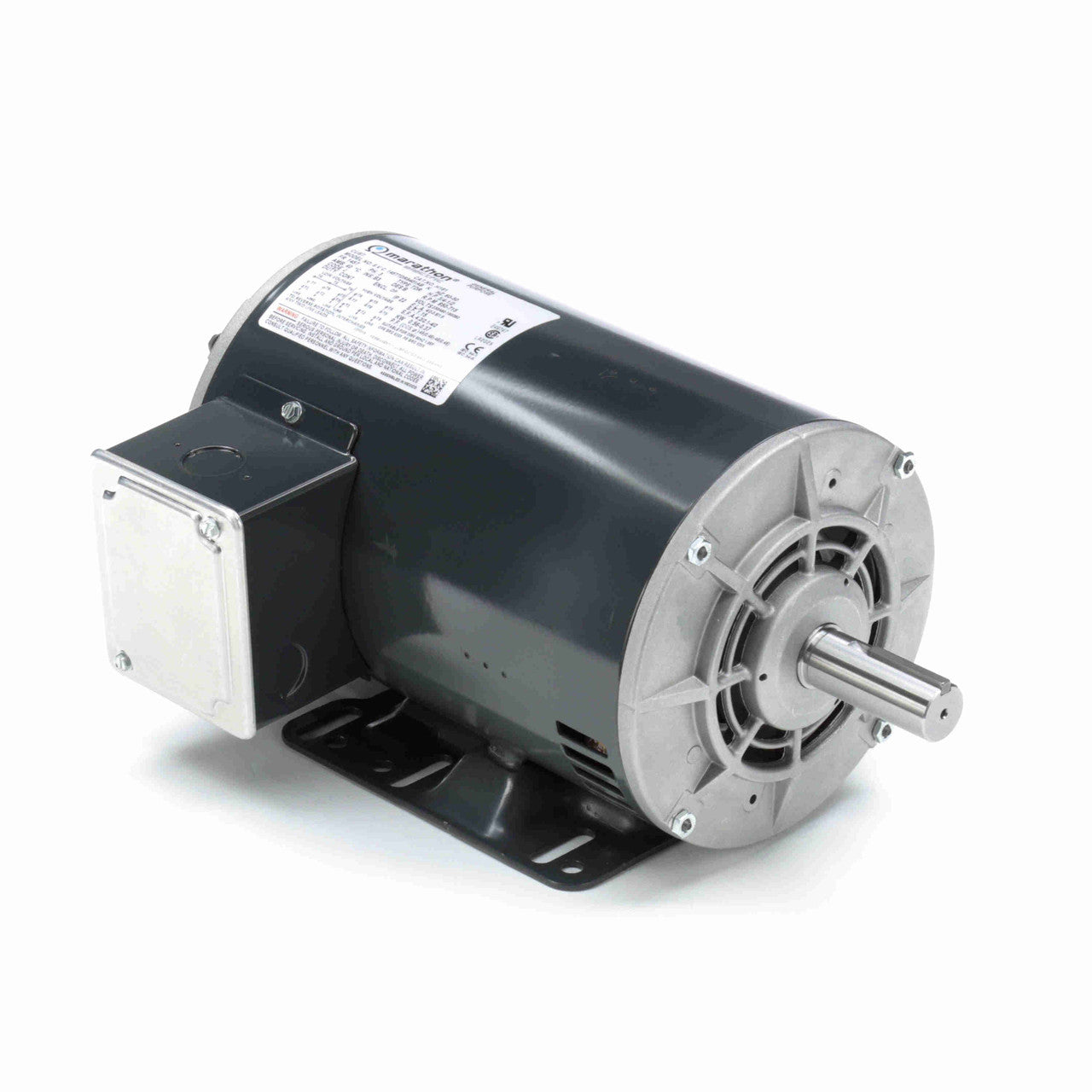

MARATHON MOTORS H181 General Purpose Motor 3/4 HP

Product Description

The MARATHON MOTORS H181 is a general purpose motor designed for various applications. This motor operates with three phase electrical type and delivers three fourth horsepower at eight hundred fifty RPM. The motor is engineered with a rigid base for secure mounting and features an open drip-proof enclosure, making it suitable for diverse work environments.

• Three phase electrical configuration
• Durable rolled steel construction
• Supports 230/460 voltage with various amperage ratings

Product Highlights

This motor is ideal for industrial and commercial uses that require reliable performance and durable components.

Product Information

Standard Information

• Brand: Marathon Motors
• SKU: MH181

Technical Specifications

• Electrical Type: Three Phase
• HP: 3/4
• RPM: 850
• Frame: 145T
• Enclosure: ODP
• Voltage: 230/460
• Amperage: 4.0/2.0
• Shaft Type: Single
• Frequency: 60/50
• Mounting: Rigid Base
• Shaft Diameter: 7/8 inches
• Shaft Extension: 2.28 inches
• Motor Orientation: Horizontal
• Service Factor: 1.15
• Insulation Class: B
• Max Ambient: 40°C
• UL: Recognized
• CE: Yes
• CSA: Yes
• IP Code: 22
• KVA Code: J
• Output HP: 0.75
• Output KW: 0.56
• Bearings: Ball Bearings
• Wiring Diagram: On motor name plate
