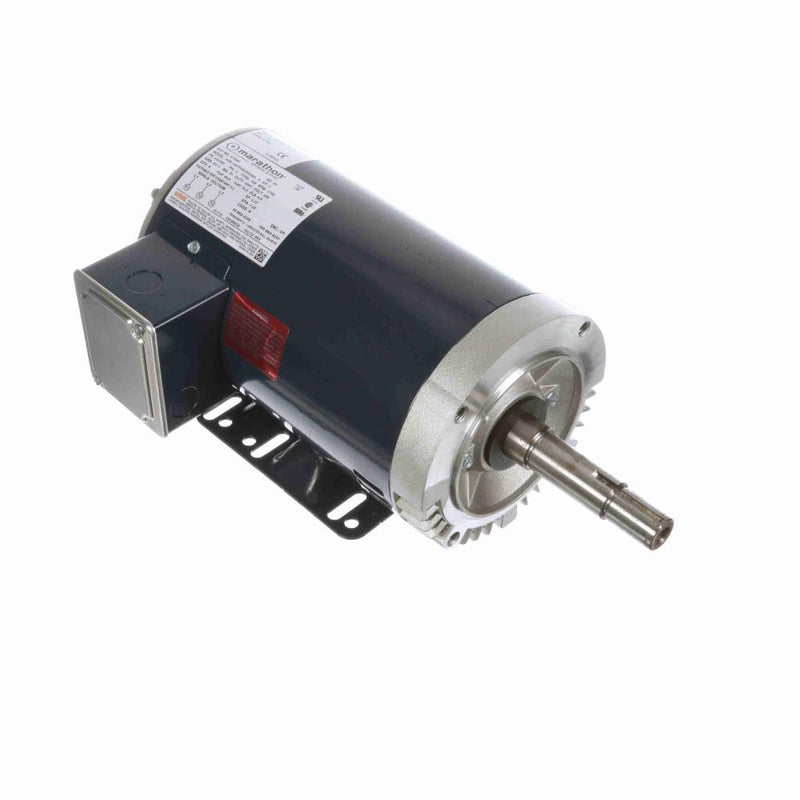

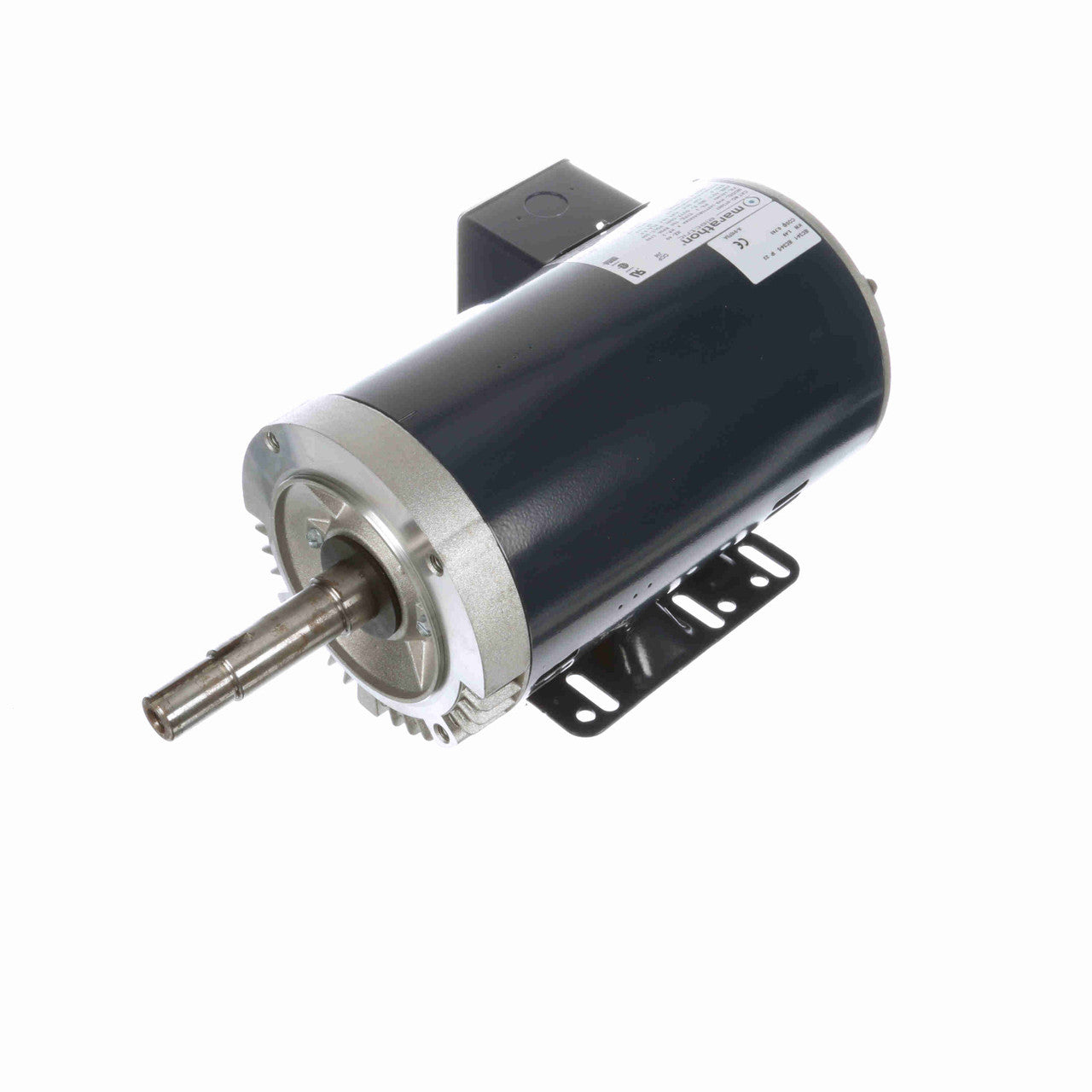

Marathon Motors GT2007 Three Phase Close-Coupled Pump Motor

Product Description

The Marathon Motors GT2007 is a three-phase close-coupled JM pump motor. This motor is built to work with close-coupled pumps, making it ideal for setups where the pump impeller attaches directly to the motor shaft. The construction consists of a rolled steel body, ensuring durability, and features a rigid base for secure mounting. It is crafted for continuous duty service.

• Designed for close-coupled pump applications.
• Features a rigid base for mounting stability.
• Suitable for continuous duty operation.

Product Highlights

The GT2007 excels in performance for industrial applications requiring reliable pump operation.

Product Information

Standard Information

• Brand: Marathon
• MPN: GT2007

Technical Specifications

• Electrical Type: Three Phase
• Output Power: 2 HP (1.5 kW)
• Voltage: 200 V
• Frequency: 60 Hz
• Speed: 1750 RPM
• Frame Size: 145JM
• Mounting Type: C-Face with Base
• Enclosure Type: Open Drip Proof (ODP)
• Service Factor: 1.15
• Current: 6.9 A
• Rotation: Reversible
• Body Material: Rolled Steel
• Duty: Continuous
• Efficiency: 86.5%
• Shaft Diameter: 7/8 inches
• Shaft Length: 2 1/4 inches
