Marathon Motors GT0069 General Purpose Motor 30 HP

Product Description

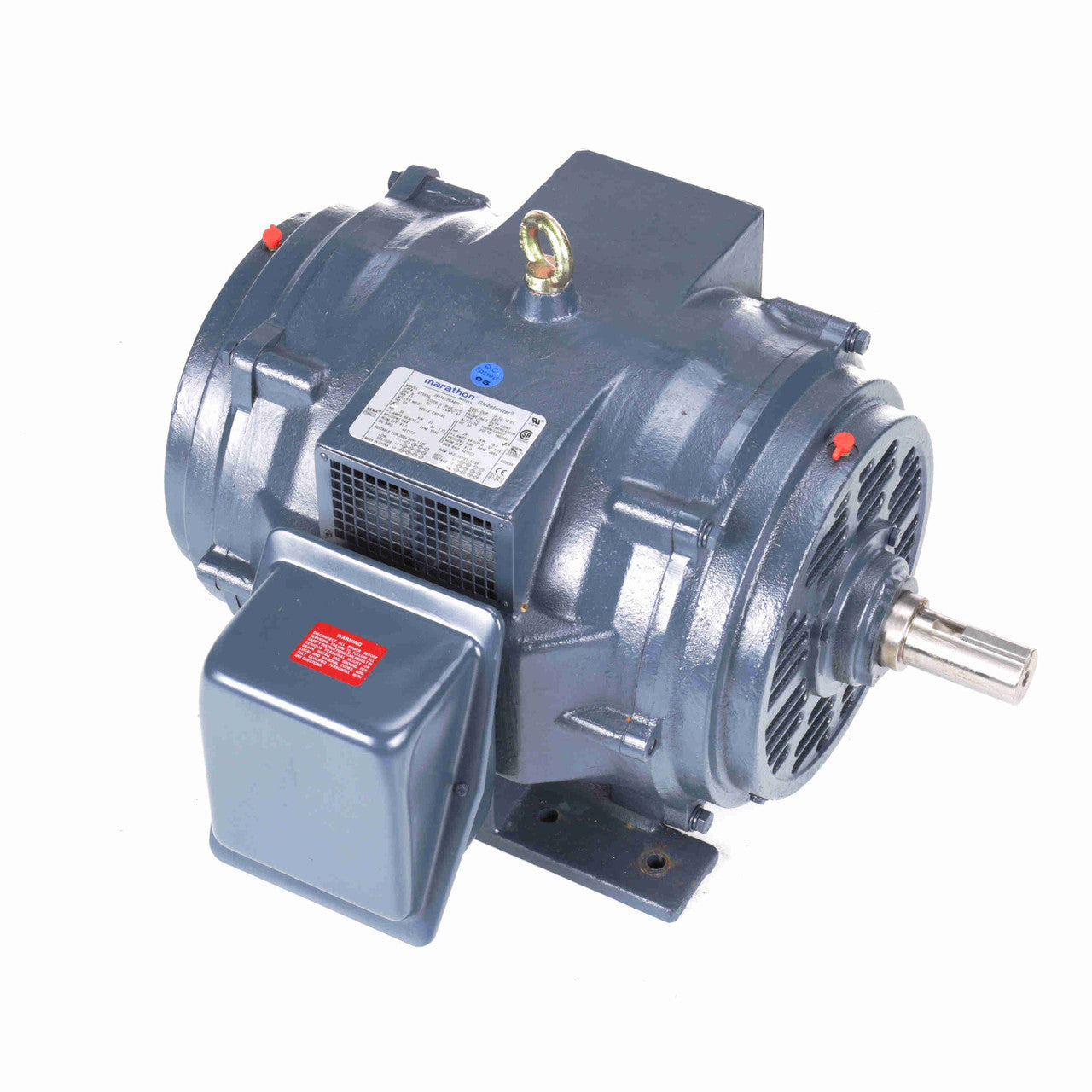

The MARATHON MOTORS GT0069 is a general purpose motor. This three phase motor delivers 30 HP at 3562 RPM with a 284TS frame. Designed with a rigid base for mounting and an ODP enclosure. Operates at 230/460V and 71.5/35.5 amperage. The motor features a single shaft type and is constructed from rolled steel.

• Three Phase electrical type
• Rolled steel material
• Rigid base mounting

Product Highlights

This motor is ideal for use in environments that are relatively clean and dry, such as on compressors, pumps, conveyors and blowers.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT0069
• Country of Origin: US

Technical Specifications

• MPN: GT0069
• Brand: MARATHON MOTORS
• Inventory SKU: MGT0069
• HP: 30
• RPM: 3562
• Frame: 284TS
• Enclosure: Drip Proof
• Phase: Three Phase
• Voltage: 230/460 V
• Rotation: Reversible
• Overload: None
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 71.5/35.5
• Shaft Type: TS
• Service Factor: 1.15
• Thermal Protection: No Protection
• Efficiency: 91.7 & 91 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Power Factor: 87
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: F
• Drive End Bearing Size: 6211
• Opp Drive End Bearing Size: 6211
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Number of Speeds: 1
• Application: General Purpose
• Frame Size NEMA: 284TS
• Mount NEMA: With Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Variable Torque Speed Range: 10:1
• Constant Torque Speed Range: 2:1
• Special Features: Squirrel Cage Inverter Rated Motors
• Application Type: General Purpose AC Motors
• Shaft Size: 1-5/8 in Dia x 3-1/4 in L Extension
• Torque Rating: 44.2 ft-lb Full Load
• Bearing Type: Deep Groove Ball
• Temperature Rating: 40 deg C
• Enclosure Type: IP22 DP
• Frequency Rating: 60 Hz
• Type: 2-Pole Continuous/Inverter Duty Low Voltage
• NEMA Design: B
• No. of Poles: 2
• ODE Bearing Type: Ball
• Hz: 60
• Motor Orientation: Horizontal
• Shaft Diameter: 1.625 in
• Frame Length: 12.59 in
• Starting Type: Part Wdg Start Low Volt Only and Wye Start Delta Run Or Inverter
• Insulation: F
• Shaft Extension: 3.25 in
• ODE Bearing Size: 6211
• Poles: 2
• Motor Application: Inverter Duty
• Voltage Rating: 230/460
• Enclosure Designation: Open Drip Proof
• Speed [Max]: 3562 rpm
• IP Rating: IP22
• Open End Bearing: 6211
• Ambient Temperature Range [Max]: 104 °F
• Assembly/Box Mounting: F1/F2 CAPABLE
• DE Bearing Type: Ball
• Standard: CE, CSA, UL Recognized
• DE Bearing Size: 6211
• Full Load Amps: 71.5/35.5
• Electrical Type: Squirrel Cage Inverter Rated
