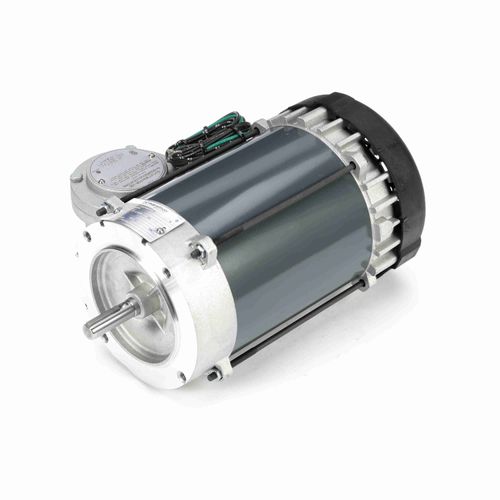

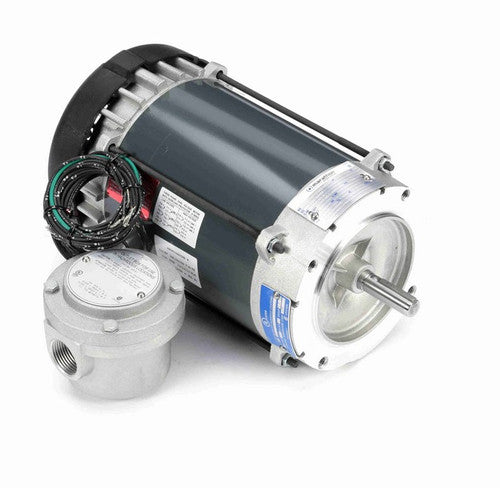

Marathon Motors G829 Explosion Proof Motor 1/2HP 208-230/460V

Product Description

The Marathon Motors G829 explosion proof motor is ideal for applications where hazardous fumes or dust may be present. This three phase motor has a horsepower of 1/2 HP and operates at 208-230/460V. It features an EPFC enclosure and is suitable for use in hazardous locations. The motor is UL Listed and CSA Certified.

• Suitable for hazardous environments with explosive gases or materials.
• Features an explosion proof EPFC enclosure.
• Designed for continuous duty.

Product Highlights

The Marathon Motors G829 is designed for hazardous environments. It is explosion proof and suitable for a variety of applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: G829

Technical Specifications

• RPM: 1800 rpm
• Duty: Continuous
• Brand: Marathon Motors
• Frame: 56C
• Hertz: 60 Hz
• Phase: 3
• IP Code: 54
• Voltage: 208-230/460 V
• Enclosure: EPFC
• RPM Range: 1701-1800 rpm
• Horsepower: 1/2 HP
• 60 Hertz kW: 0.37 kW
• Orientation: Horizontal
• 60 Hertz RPM: 1800 rpm
• Starting Type: Across the Line
• UL: UL Listed
• Enclosure Type: Explosion Proof
• Full Load Amps: 2.3-2.4/1.2 FLA
• Service Factor: 1
• Insulation Class: B
• Bearing Drive End: 6203
• Mounting Location: C-Face Footless
• Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3B
• Motor RPM 60 Hertz: 1800 rpm
• Thermal Protection: Automatic Protector
• Ambient Temperature: 40 °C
• Full Load Efficiency: 68
• Manufacturers Part Number: G829
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: Ball
• CE Approved: N
• NEMA Design: B
• MPN: G829
• Electrical Type: Three Phase
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: C-Face / Footless
• Amperage: 2.3-2.4/1.2
• Shaft Type: Single
• Application: XP Severe Duty
• Output KW: 0.37
• Output RPM: 1725
• Frame Size NEMA: 56C
• Mount NEMA: C Face No Base
• Enclosure NEMA: EPFC
• Enclosure IEC: IP54
• Shaft Diameter: 5/8"
• Shaft Length: 1 7/8"
• Marathon Model: 056T17G5315
• Approval: UL
• Efficiency: 68 Percent
• Frame Material: Rolled Steel
• Frequency Rating: 60 Hertz
• Motor FLA: 2.3 Amp at 208 Volt, 2.4 Amp at 230 Volt, 1.2 Amp at 460 Volt
• Number of Speeds: 1
• Speeds: 1
