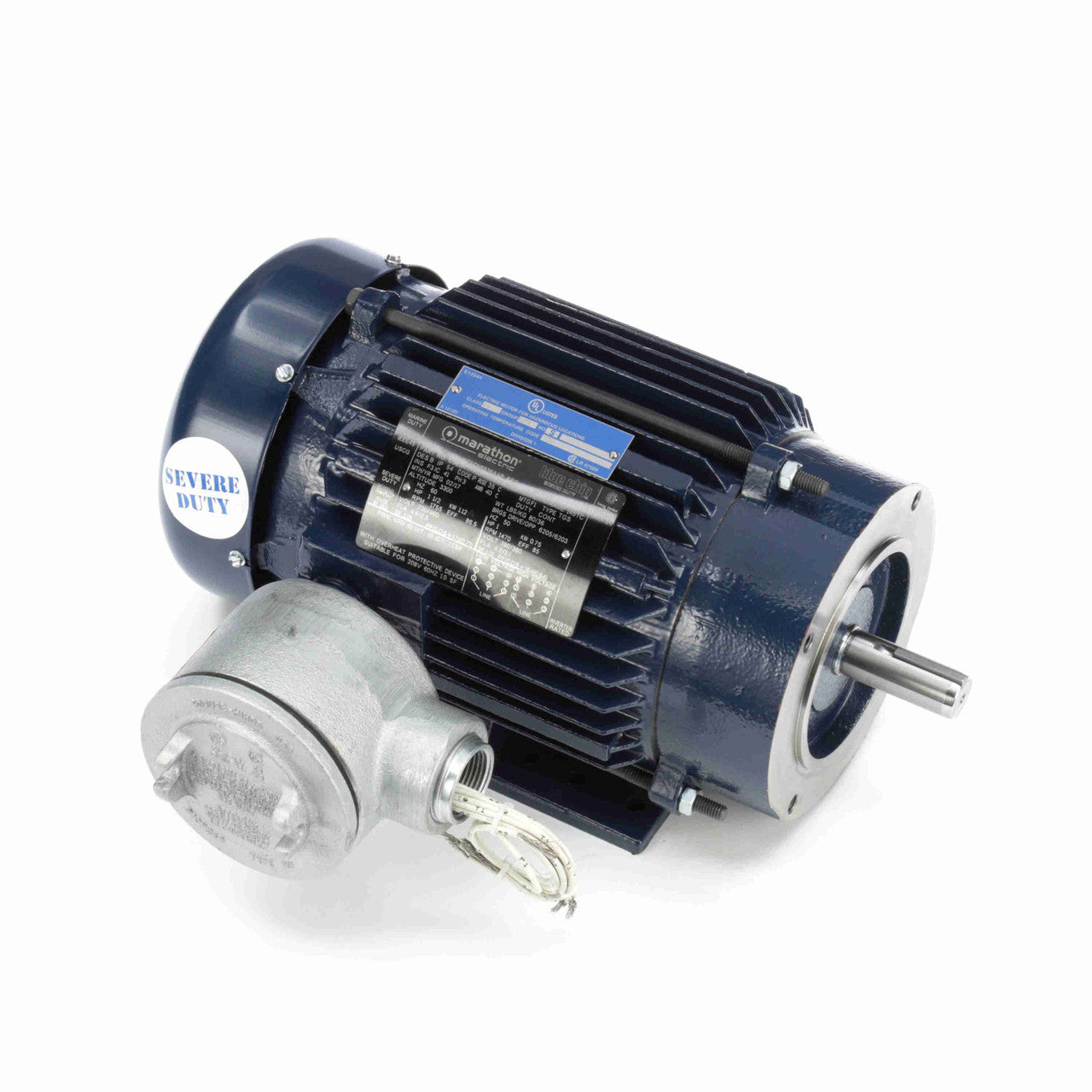

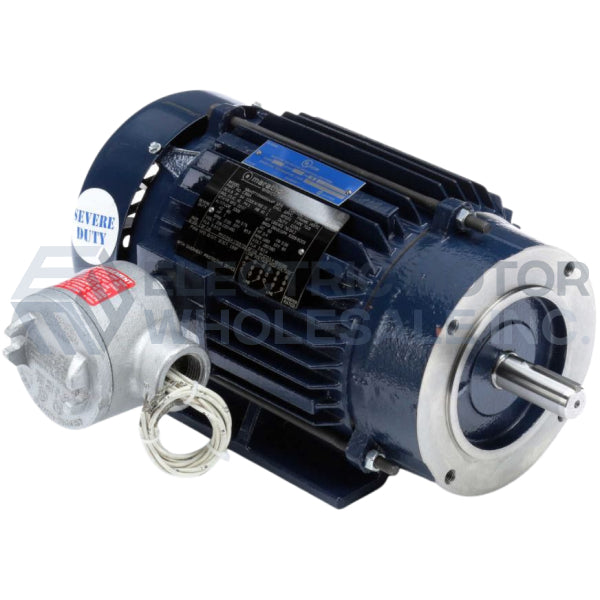

Marathon Motors C362A Explosion Proof Motor 1.5 HP 145TC Frame

Product Description

The Marathon Motors C362A is a three-phase electric motor designed for operation in hazardous environments where explosion-proof equipment is essential. This motor features a 145TC frame and is fan-cooled, making it suitable for horizontal mounting. Its construction ensures durability and reliability in demanding conditions.

• 1.5 Horsepower
• Rated for 208-230/460 Volts at 60 Hz
• UL Listed and CSA Certified for hazardous locations

Product Highlights

This motor is rated for continuous duty, allowing for consistent performance in various applications. It can work with both line power and inverters, making it versatile. The explosion-proof design provides safety in hazardous areas, complying with strict standards.

Product Information

Standard Information

• Manufacturer: Marathon Motors
• Brand: Marathon

Technical Specifications

• MPN: C362A
• HP: 1.5
• kW: 1.12
• Phase: 3
• Frame Size NEMA: 145TC
• Voltage: 230/460 V
• Frequency (Hz): 60/50
• Speed (RPM): 1755
• Enclosure: EPFC
• Mounting: C-Face Rigid
• Service Factor: 1.15
• Duty: Continuous
• Insulation Class: F
• Ambient Temperature: 40 °C
• Thermal Protection: Thermostat
• Efficiency: 86.5 %
• NEMA Design: B
• KVA Code: P
• Drive End Bearing Size: 6205
• Opposite End Bearing Size: 6203
• UL: UL Listed
• CSA: Yes
• IP Code: 54
• Number of Speeds: 1
• Hazardous Location: EXP PROOF CL I GR D CL II GR F&G T3B
• Weight: 80 lbs
• Starting Type: Line or Inverter
• Assembly: F1 Only
• Inverter Speed Range: Constant 10:1
• FL Amps: 4.6/2.3
• Rotation: Reversible
• Application: Explosion Proof
• CT Speed Range: 10:1
• Body Design: Cast Iron
