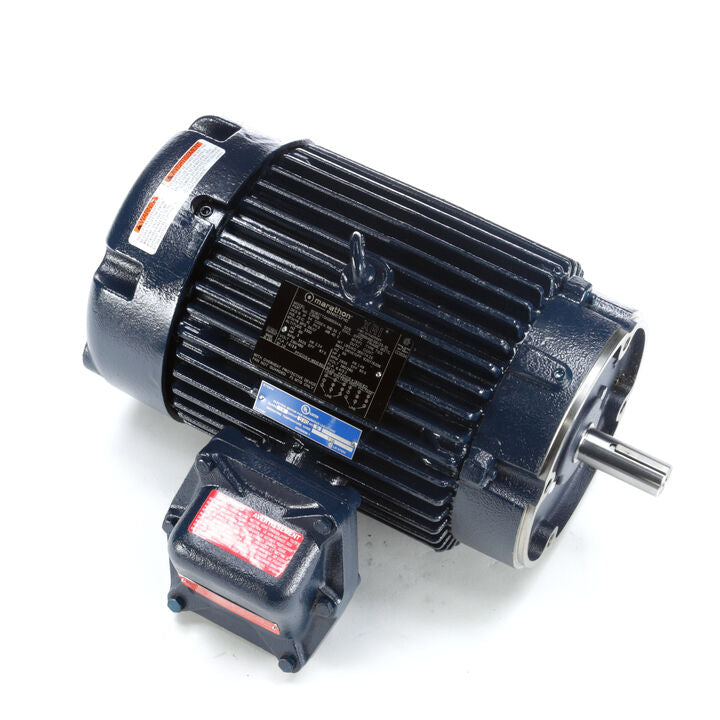

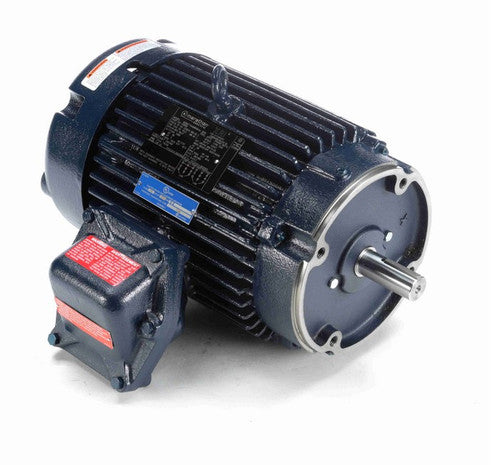

Marathon Motors C303C 3 HP Explosion Proof Electric Motor

Product Description

The Marathon Motors C303C is a three-phase electric motor suitable for explosion-proof applications. It features a robust cast iron frame and operates at three thousand six hundred RPM. The motor's voltage rating is 230/460V and it functions at 60 Hz. This unit includes a C-face footless mounting design with a keyed shaft for secure attachments.

• TEFC (Totally Enclosed Fan-Cooled) design
• Compatible with inverter use
• CSA certified for hazardous locations including Class I Div 1, Groups C & D

Product Highlights

This motor is engineered for demanding environments, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part #: C303C

Technical Specifications

• Horsepower: 3 hp
• RPM: 3600
• Phase: 3-Phase
• Frame: 182TC
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Voltage: 230/460V
• Current: 7.6/3.8
• Frequency: 60 Hz
• Shaft Diameter: 1 1/8 inches
• Shaft Length: 2 3/4 inches
• Service Factor: 1.0
• Overload Protection: Thermostat
• Insulation Class: Class F
• Mounting Design: C-Face Footless
• Series: XRI-SD XP (Explosion Proof)
