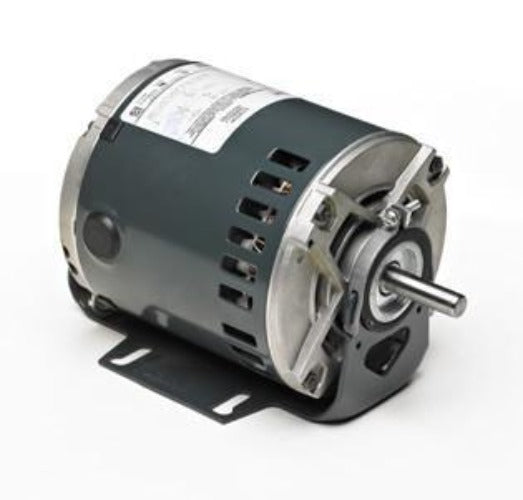

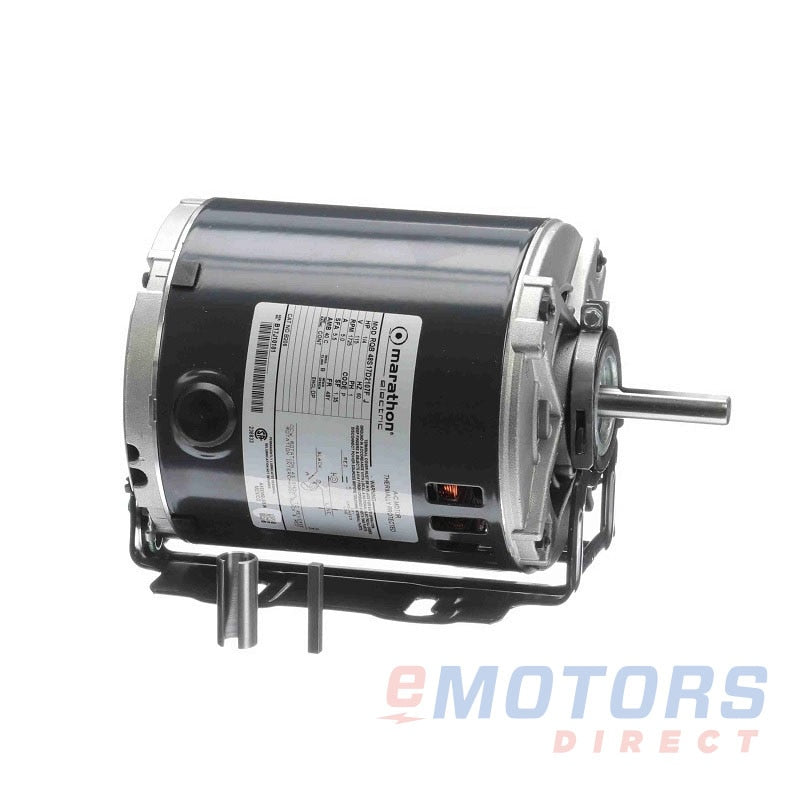

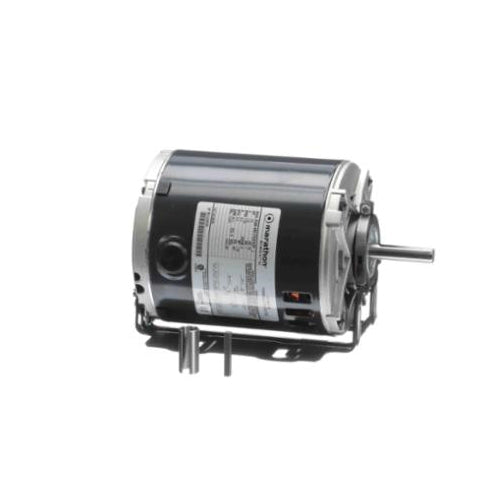

Marathon Motors B206 Electric Motor 1/4 HP ODP

Product Description

The Marathon Motors B206 is a 1/4 HP electric motor suitable for fan and blower applications. This single-phase motor runs at a speed of 1725 RPM and operates on 115 volts at a frequency of 60 Hz. It features an open drip-proof (ODP) enclosure and comes with a 48YZ frame designed for easy mounting.

• Heavy gauge steel construction for durability.
• Reversible rotation for flexible use.
• UL Recognized and CSA Certified for safety.

Product Highlights

The B206 motor is ideal for various ventilation and air-moving tasks.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: B206

Technical Specifications

• Motor HP: 1/4 HP
• Voltage: 115 V
• RPM: 1725
• Amps: 4.3
• Height: 8.2 inches
• Length: 13 inches
• Width: 7.7 inches
• Shaft Diameter: 0.5 inches
• Shaft Length: 2.01 inches
• Frame Size: 48YZ
• Insulation Class: B
• Duty: Continuous
• Efficiency: 58%
