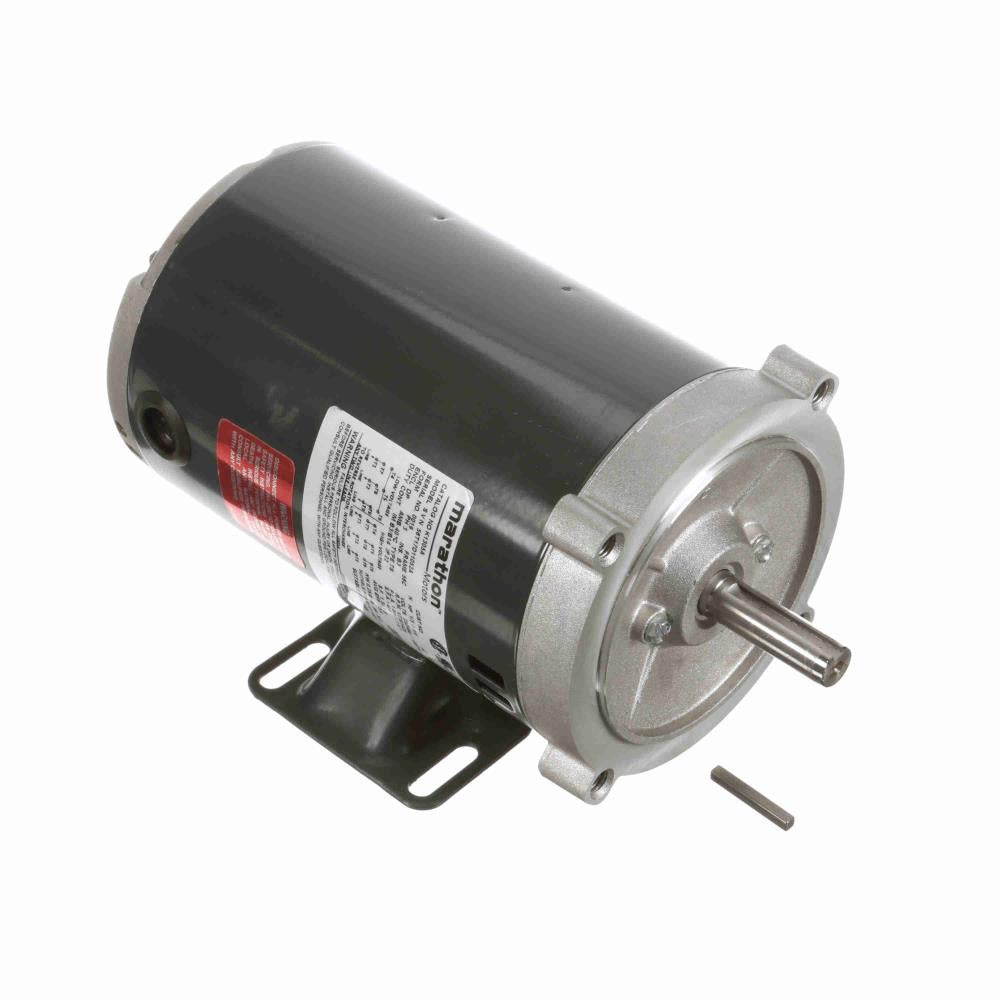

Marathon MK1305A General Purpose Motor 1/3 HP 230/460 V

Product Description

The Marathon MK1305A is a three-phase general purpose motor designed for various applications. It operates at one-third horsepower and a speed of 1725 RPM. This motor is built with a rolled steel frame, ensuring durability and reliability in demanding conditions. It features a C-face/footed mounting style for versatile installation options.

• Electrical Type: Three Phase
• Voltage: 230/460
• Amperage: 1.2/0.60

Product Highlights

This motor is suitable for HVAC systems, industrial applications, and equipment requiring reliable performance. Its robust design helps in reducing downtime and maintenance.

Product Information

Standard Information

• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Rotation: Reverse

Technical Specifications

• Horsepower: 1/3
• Operating Voltage: 230/460 volts
• Shaft Type: Single
• Overload Protection: None
• Phase: Three
• Amperage: 1.2/0.60
• Mounting Type: C-Face, Footed
• Material: Rolled Steel
