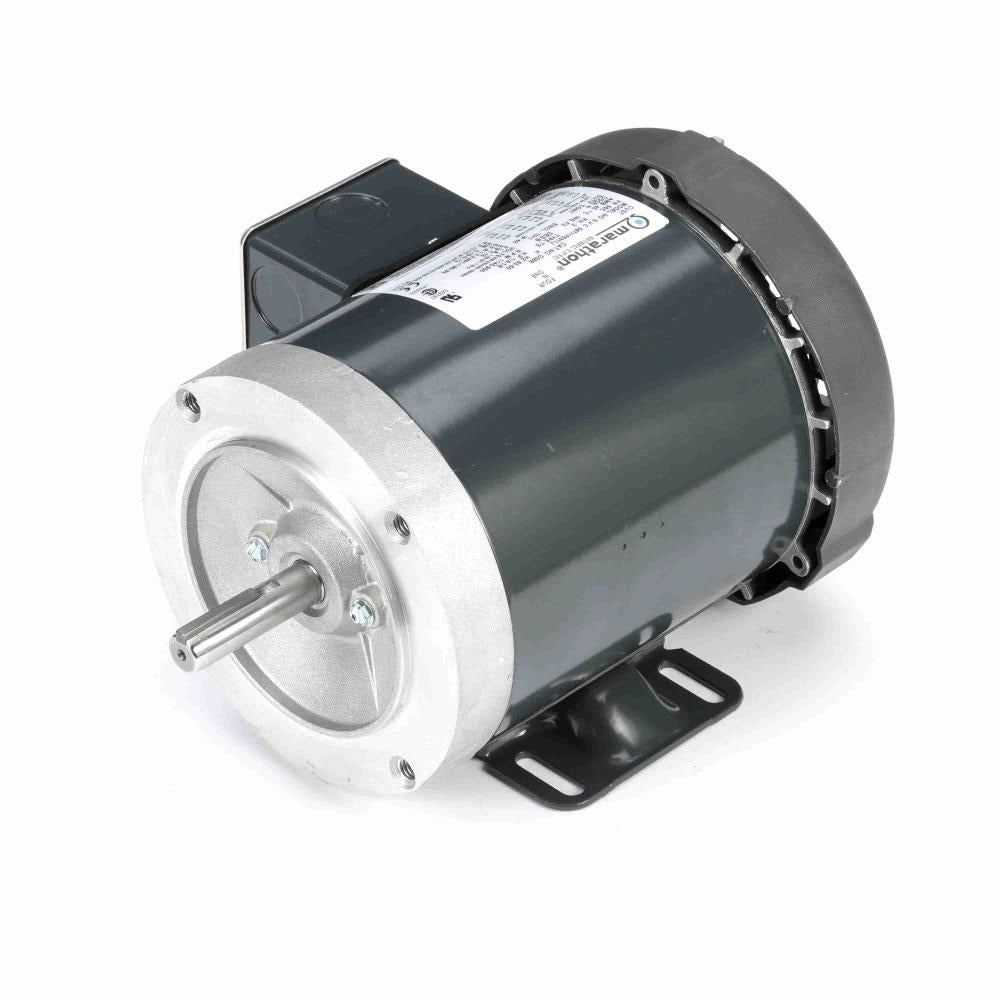

Marathon MG586 General Purpose Motor 1/4 HP 208-230/460 Replacement MPN

Product Description

The Marathon MG586 is a three-phase general-purpose motor designed for various applications. This motor has a power rating of one-quarter horsepower and operates at a speed of one thousand one hundred forty RPM. It is built for durability with a rolled steel frame and has a totally enclosed fan-cooled (TEFC) design. Typical uses include HVAC systems, refrigeration, and industrial machinery.

• Electrical Type: Three Phase
• Voltage: 208-230/460
• Mounting Type: Bolt-on Base

Product Highlights

The MG586 motor is efficient and reliable, making it suitable for demanding tasks in various industrial settings.

Product Information

Standard Information

• Enclosure Type: TEFC
• Phase: Three

Technical Specifications

• Horsepower: 1/4 HP
• RPM: 1140
• Frame: 56
• Diameter: 6.5 inches
• Overload Protector: No
• Amperage: 1.7-2.0/1.0
• Shaft Type: Single
• Material: Rolled Steel
