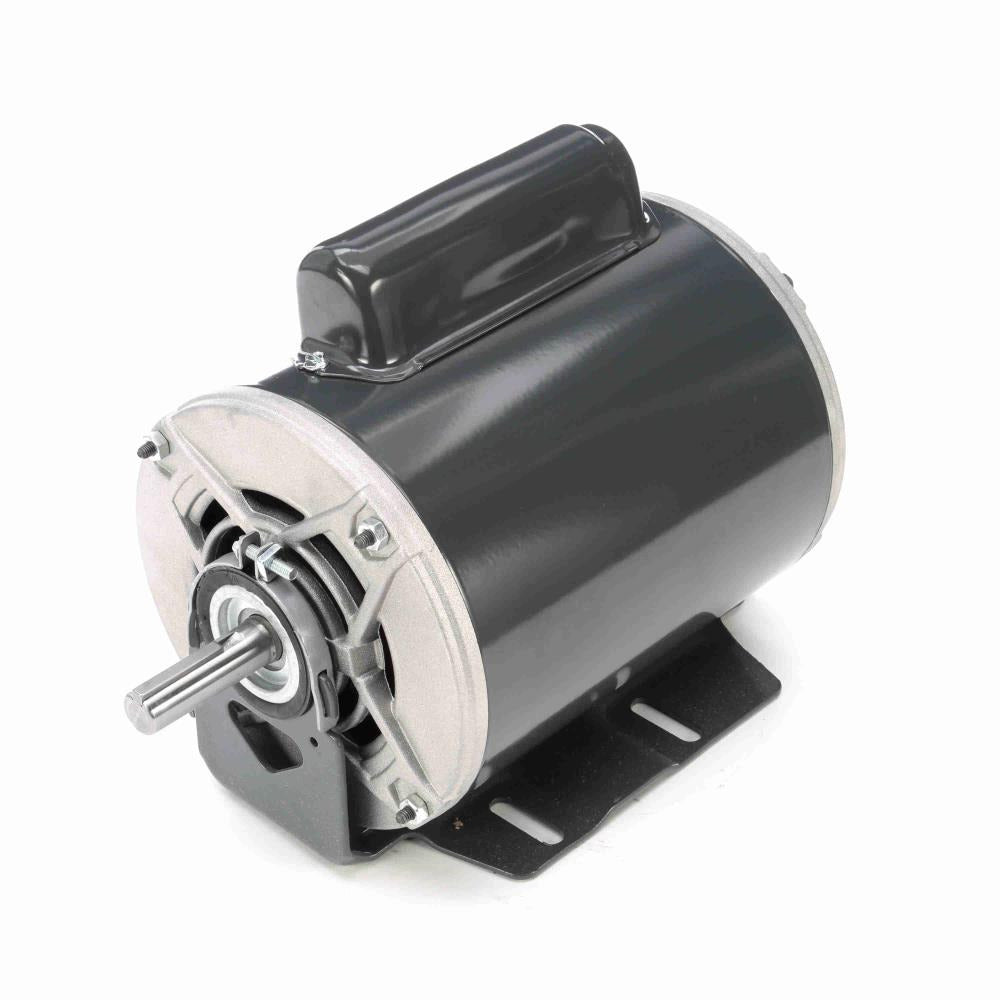

Marathon MC548 General Purpose Motor 1/3 HP 56 Frame

Product Description

The Marathon MC548 is a reliable general-purpose motor designed for various applications. This motor operates at one-third horsepower and is built with efficiency in mind. It features a single-phase design with voltage capabilities of one hundred fifteen or two hundred thirty. The ODP (Open Drip Proof) enclosure ensures durability, making it suitable for indoor use. The motor spins at one thousand one hundred forty RPM.

• Type: General-purpose motor
• Single-phase operation
• Open Drip Proof enclosure

Product Highlights

This motor is ideal for HVAC systems, fans, and pumps, featuring automatic overload protection for added reliability.

Product Information

Standard Information

• Brand: Marathon
• MPN: MC548

Technical Specifications

• Horsepower: 1/3
• RPM: 1140
• Frame Size: 56
• Diameter: 6.5 inches
• Overload Protector: Automatic
• Material: Rolled Steel
• Phase: Single
• Voltage: 115/230
• Mounting Type: Resilient Base
• Amperage: 8.6/4.3
• Shaft Type: Single
