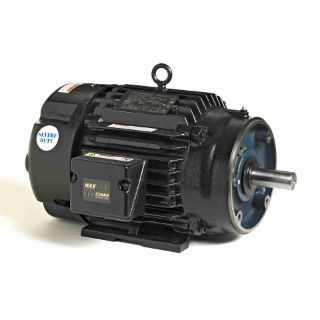

Marathon Electric SY007A MAR 5 HP AC Three Phase Motor

Product Description

The Marathon Electric SY007A is a 5 HP permanent magnet motor designed for continuous operation in various applications. It operates at 1800 RPM and supports dual voltage systems of 230 or 460 volts. The motor comes with a 184TC frame and features a totally enclosed non-ventilated design.

• Efficient with a premium-plus rating that exceeds NEMA standards
• Constructed from cast iron for improved rigidity
• IP54 rated for ingress protection

Product Highlights

This motor is ideal for HVAC applications, providing high efficiency and reduced vibration, making it suitable for both residential and commercial environments.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Manufacturer Part Number: SY007A MAR

Technical Specifications

• Power Rating (HP): 5
• Speed (RPM): 1800
• Phases: 3
• Current (A): 11.6/5.8
• Voltage: 230/460
• Frame Size: 184
• Efficiency: 94.9%
• Ambient Temperature: Max 40°C
• Enclosure Type: Totally Enclosed Non-Ventilated
• Mounting Type: Rigid Base
