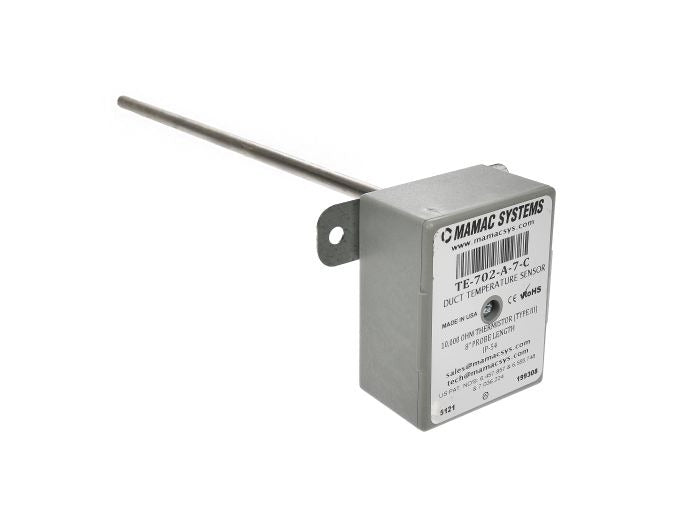

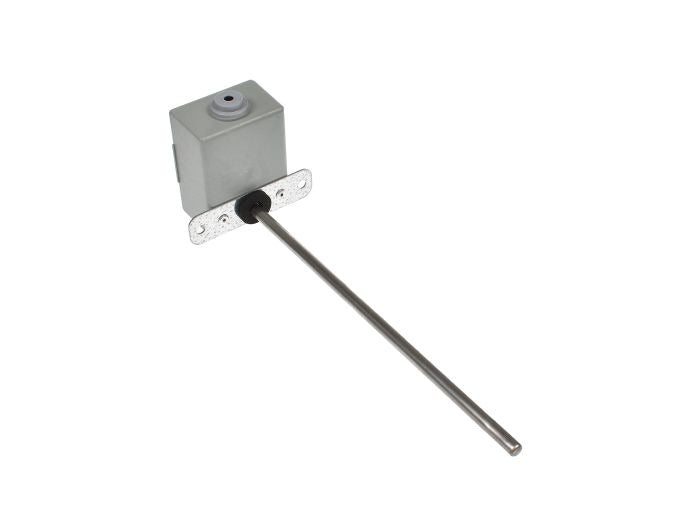

Mamac Systems TE-702-A-7-C Duct Temperature Sensor (8 in Probe) TE-702-A-7-C

Product Description

Mamac Systems TE-702-A-7-C is a duct temperature sensor with an 8 in probe and a 10K Type III NTC thermistor element for resistance output. The sensor is housed in a polycarbonate polycard enclosure, mounts directly to duct, wall, or a single gang box, and uses 6 ft (1.8 m) pigtail wiring. Operating range is -40 to 210 degrees F (-40 to 100 degrees C) with CE and RoHS approvals.

• 8 in tip-sensitive probe with 10K Type III NTC thermistor; thermistor accuracy ±0.36°F (0.2°C)
• Polycarbonate polycard enclosure; mounts to duct, wall, or single gang box; 6 ft (1.8 m) pigtail wiring
• Operating temperature -40 to 210°F (-40 to 100°C); resistance output (10 kOhm NTC); CE and RoHS approvals

Product Highlights

Duct-mounted 10K NTC thermistor sensor with 8 in probe and polycarbonate enclosure

Product Information

Standard Information

• Brand: MAMAC SYSTEMS
• Manufacturer Part Number: TE-702-A-7-C
