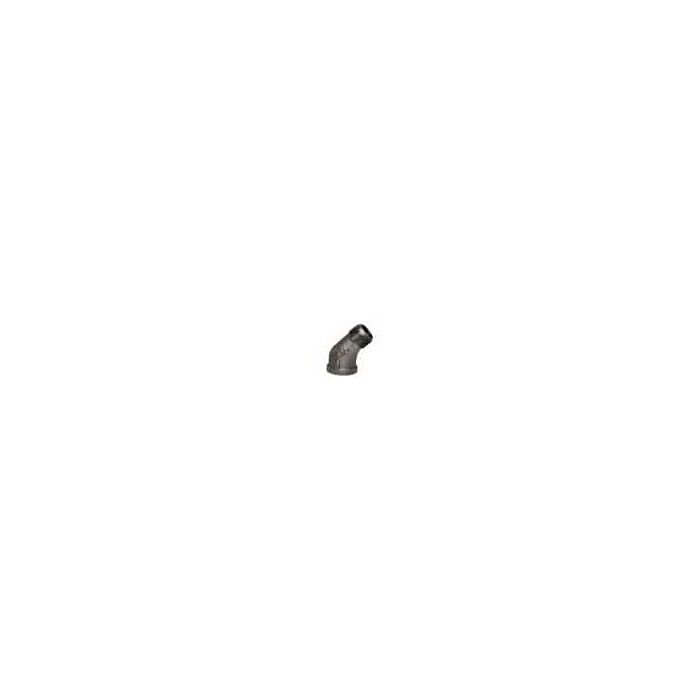

Malleable 520-508 Black 45-Degree Street Elbow 2-Inch

Product Description

The Malleable 520-508 is a two-inch, 45-degree street elbow fitting, made from malleable iron to ASTM A197 specifications. This fitting has a black finish and is ideal for oil, gas, and fluid applications. It is designed with female threaded and male threaded connections, allowing for secure installations for pressure applications up to Class 150.

• Constructed from durable malleable iron.
• Female threaded to male threaded end connections.
• Meets ANSI/ASME B1.20.1 and ASME B16.3 standards.

Product Highlights

This fitting is suitable for various fluid applications, making it a reliable choice for professionals in plumbing and HVAC systems.

Product Information

Standard Information

• Material: Malleable Iron
• Finish: Black

Technical Specifications

• Angle: 45 Degree
• Elbow Type: 45° Street Elbow
• End Connection: Female Threaded x Male Threaded
• Material Specification: ASTM A197
• Pressure Rating: Class 150
• Size: 2 inches
• Inlet Diameter: 2 inches
• Inlet Connection: FIP
• Outlet Diameter: 2 inches
• Outlet Connection: MIP
• Product Length: 2.99 inches
• Product Height: 3.23 inches
• Product Width: 4.37 inches
• Product Weight: 1.73 pounds
• Working Pressure (PSI): 232
• Maximum Pressure (PSI): 300
• Minimum Temperature (°F): -20
• Working Temperature (°F): 77
• Maximum Temperature (°F): 347
