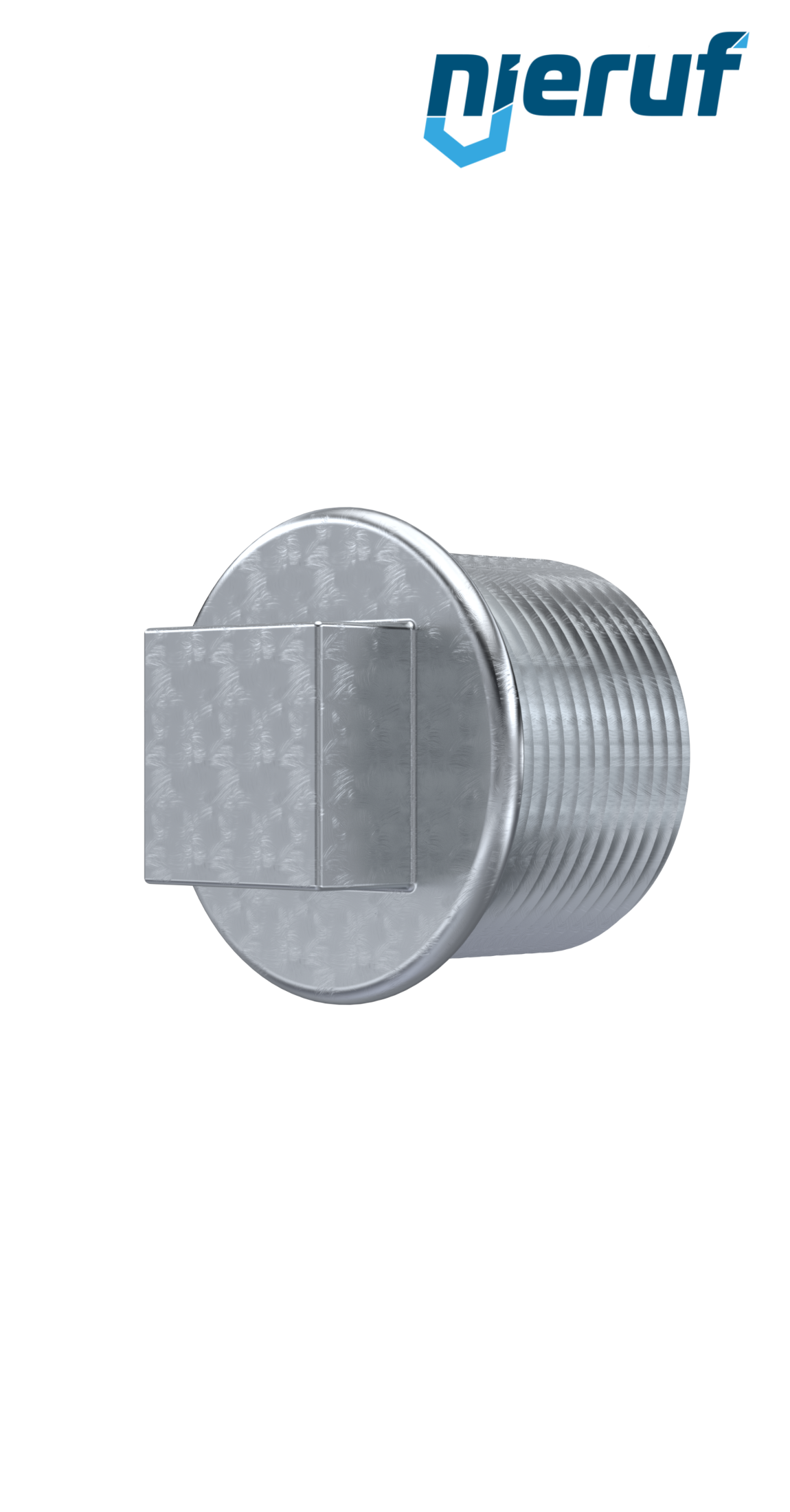

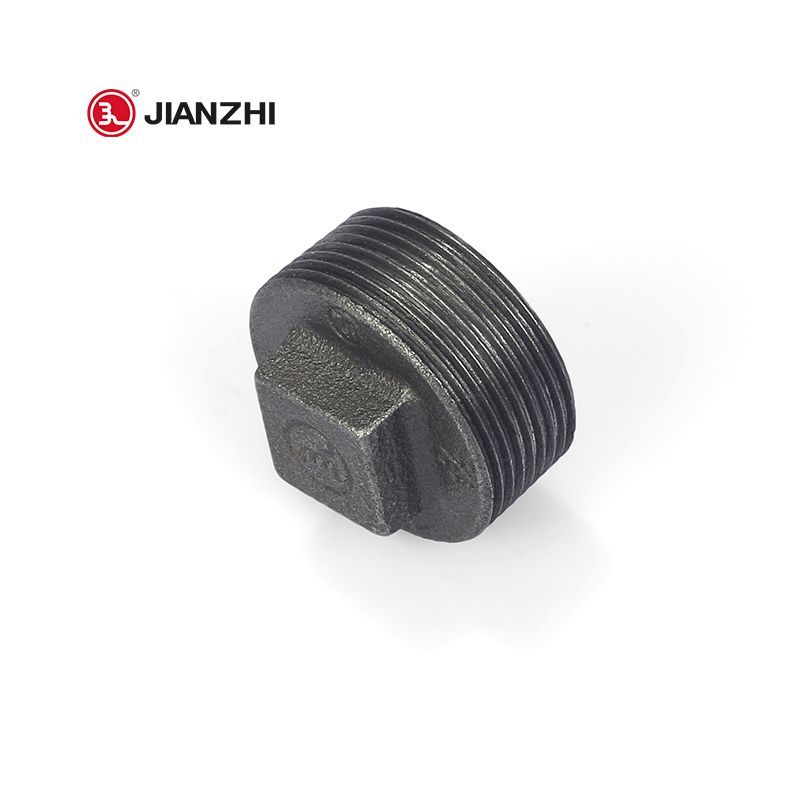

MALLEABLE 290 - Malleable Iron Pipe Plug - Galvanized

Product Description

The MALLEABLE 290 is a malleable iron pipe plug made from galvanized cast iron. It is suitable for connecting pipelines and integrating valves in various systems. This product features male thread connections designed to meet DIN EN 10226-1 and ISO 7-1 standards. The pipe plug can handle high pressures up to twenty-five BAR (363 PSI) and temperatures reaching two hundred degrees Celsius (392 degrees Fahrenheit).

• Constructed from malleable cast iron EN 1562, galvanized for corrosion resistance.
• Meets multiple industry standards including EN10242, ANSI/ASME B16.3, and DIN2950.
• Designed for use with both liquid and gaseous media.

Product Highlights

The MALLEABLE 290 provides a reliable solution for piping systems, ensuring tight seals and secure connections in plumbing applications.

Product Information

Standard Information

• Brand: MALLEABLE
• Type: Malleable Iron Pipe Plug

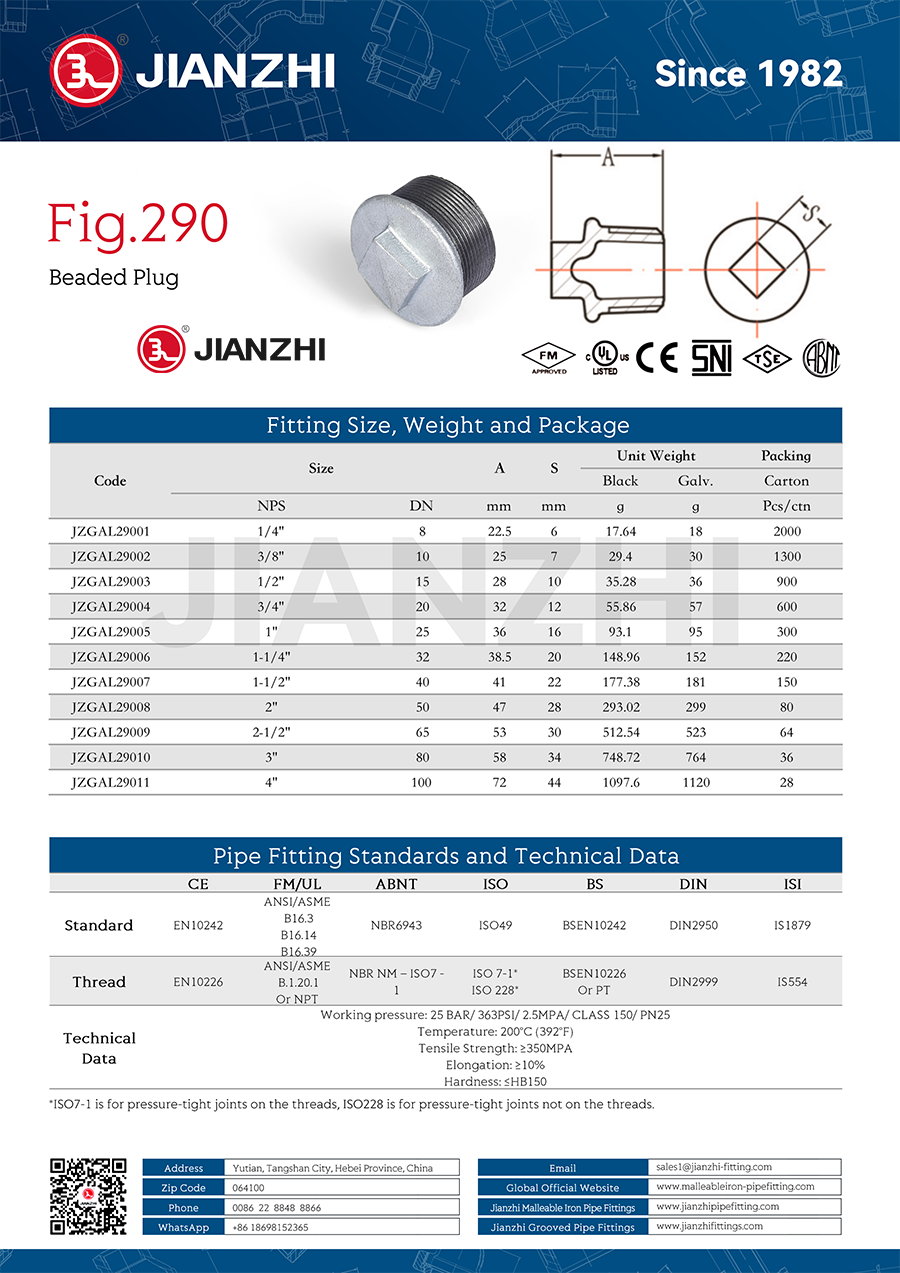

Technical Specifications

• Size: 1/4 inch to 4 inches (DN8-DN100)
• Thread Standard: EN10226, ASME B.1.20.1, DIN2999, ISO7-1
• Work Pressure: PN25, 2.5MPa, 363 PSI, CLASS 150, 25 BAR
• Maximum Temperature: 200 degrees Celsius (392 degrees Fahrenheit)
• Tensile Strength: 350 MPa
• Material: Malleable cast iron EN 1562, galvanized
• Model Number: 290
• Design Symbol: A
